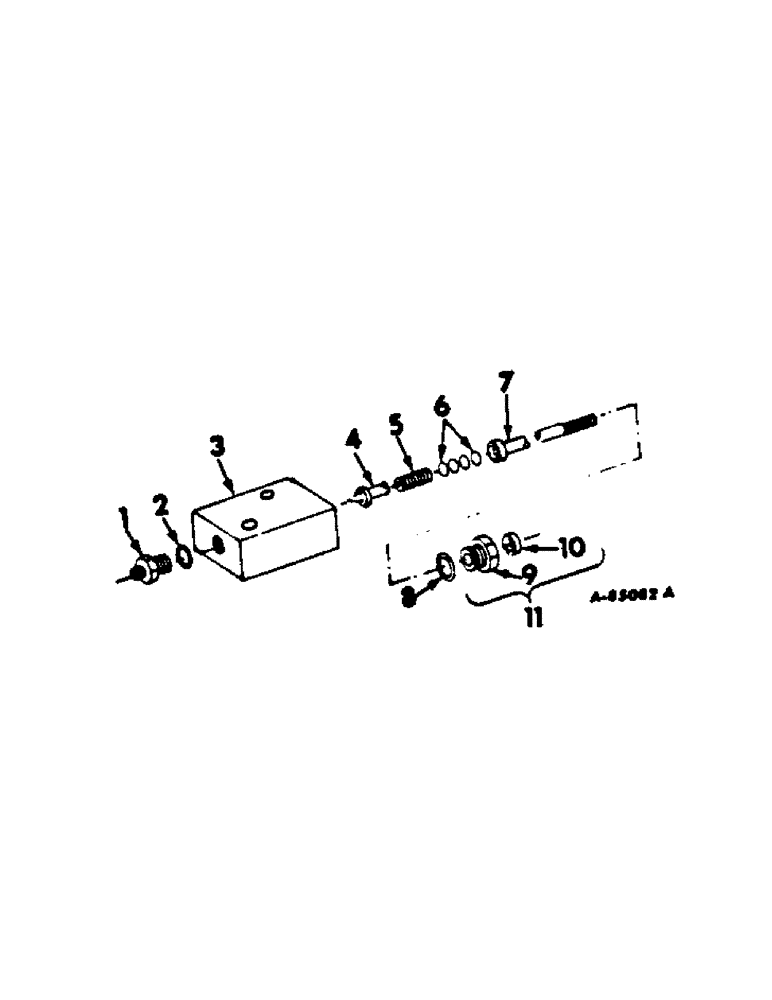

Запчасти Case IH 616 (F-18[1]) - FOOT-N-INCH VALVE, HYDROSTATIC DRIVE (07) - HYDRAULIC SYSTEM

403347R91

LOCK VALVE

foot-n-inch, composed of the following service parts, for lines and connections see section H foot-n-inch pedal, valve and lines

1шт.

1

398709R1

SEAT

poppet valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

BODY, high pressure, not serviced separately, order valve 403347R91

1шт.

4

398710R1

VALVE POPPET

1шт.

5

403434R1

SPRING

valve

1шт.

6

530575R91

SHIM KIT

relief valve shim, consists of .042 shim 530574R1 (NSS), .020 shim 530573R1 (NSS), .007 shim 530572R1 (NSS), .005 shim 530571R1 (NSS)

1шт.

7

398708R1

STOP

valve

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 ID x .097 thick

1шт.

9

GUIDE, valve spring stop, not serviced separately, order guide assy 398707R11

1шт.

10

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

11

398707R11

GUIDE

ASSY, valve spring stop

1шт.
