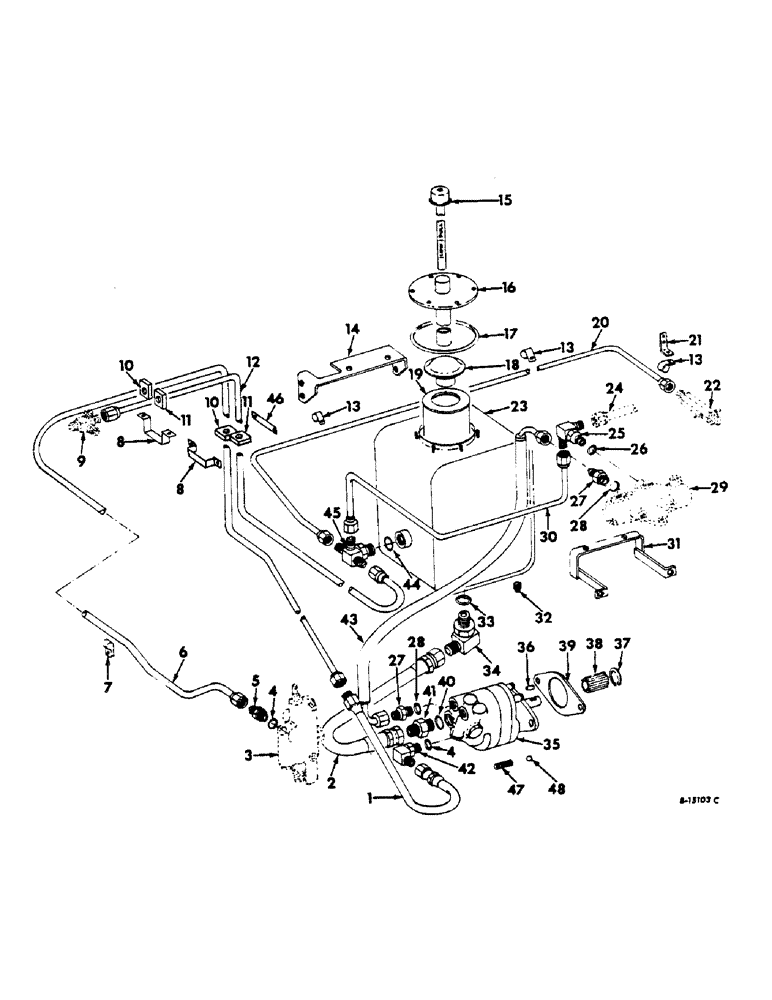

Запчасти Case IH 616 (F-02) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, RESERVOIR AND LINES, BELT (07) - HYDRAULIC SYSTEM

1

673400R1

ASSY, pressure line

1шт.

2

673394R1

ASSY, Serial Range: pump-filter

1шт.

3

VALVE ASSY, basket control, see section F basket control valve

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 1/32

2шт.

5

673443R1

UNION

CONNECTOR, 7/8-14 x 1-1/16-12 37 deg hyd flared tube short swivel

1шт.

6

673401R21

ASSY, pump to basket valve

1шт.

7

308581R1

CLIP

no. 12 3/4 x 3/8 closed

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

673385R1

CLAMP

hydraulic tube

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

TEE, return line, see section F hydraulic drum control

1шт.

10

200537C1

BUSHING, 3/4 hydraulic line, replaces 673387R1

2шт.

11

673388R1

1 hydraulic line

2шт.

12

673395R11

ASSY, return, Serial Range: tee-reservoir

1шт.

13

140573

CLAMP, basket anti-cavitation line

3шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

14

672594R1

hydraulic reservoir support RH

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

4шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

21356R1

WASHER, 11/32 x 1-3/4 x 7 ga.

2шт.

15

673291R1

CAP AND DIPSTICK, oil reservoir

1шт.

16

673763R1

RESERVOIR

1шт.

110330

WING NUT,#10-32

10-32 C-Z

6шт.

17

327082R1

RING

5-5/8 x 6-1/8 x 1/4

1шт.

18

386121R92

VALVE

ASSY, by-pass

1шт.

19

386120R91

FILTER CARTRIDGE

oil, replaces 386122R91

1шт.

20

673599R11

ASSY, basket anti-cavitation line

1шт.

21

672931R2

engine fan shield support

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

VALVE, check, see section F hydraulic basket control

1шт.

23

673762R1

hydraulic oil

1шт.

24

LINE ASSY, return, see section J power steering

1шт.

25

673371R1

steering valve return

1шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

27

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

2шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

29

VALVE ASSY, steering, see section J steering valve

1шт.

30

673370R11

ASSY, steering return

1шт.

31

672593R1

ASSY, hyd reservoir support LH

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21356R1

WASHER, 11/32 x 1-3/4 x 7 ga

2шт.

32

444624

PLUG,Hex Hd, 3/8"-18

3/8-18 automotive hex-hd pipe

1шт.

33

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-23/32 x 1/8

1шт.

34

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

w/nut & washer, 1-5/8-12 37 deg hyd flared adj str thd 90 deg

1шт.

35

673201R92

ASSY, hydraulic

1шт.

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

SCREW, 3/8-16 x 1-1/4 hex-hd nylock cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

35

673750R92

back plate repair

1шт.

35

673754R92

SEAL KIT

seal repair, consists of (1) diaphragm (NSS), (1) gasket (NSS), (1) gasket (NSS), (1) seal (NSS), (1) seal 676646R91, (1) seal 636628R91, (1) o-ring 355966R1, (1) o-ring 350429R1, (1) o-ring 24496R1, (1) o-ring 364879R1, (3) o-ring 383024R1

1шт.

36

636489R1

KEY

3/16 x 13/16 sq parallel

1шт.

37

374790R1

SNAP RING,0.688", Int, #68

Ring, Snap, , lift pump coupling 0.688", Int, #68

1шт.

38

673389R1

hydraulic pump

1шт.

39

583461R1

GASKET

hydraulic pump

1шт.

40

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

15/16 x 1-3/16 x 1/8

1шт.

41

673390R1

1-1/16-12 SAE to 1-5/8-12 JIC

1шт.

42

673391R1

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

W/NUT & WASHER, pump pressure line

1шт.

43

673369R1

ASSY, pump to steering valve

1шт.

44

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1.171 x 1.403 x .116

1шт.

45

673392R1

reservoir return

1шт.

46

674641R1

PLATE, hydraulic tube clamp

1шт.

47

371523R1

SPRING

check ball

2шт.

48

16007R1

BALL

check

2шт.
