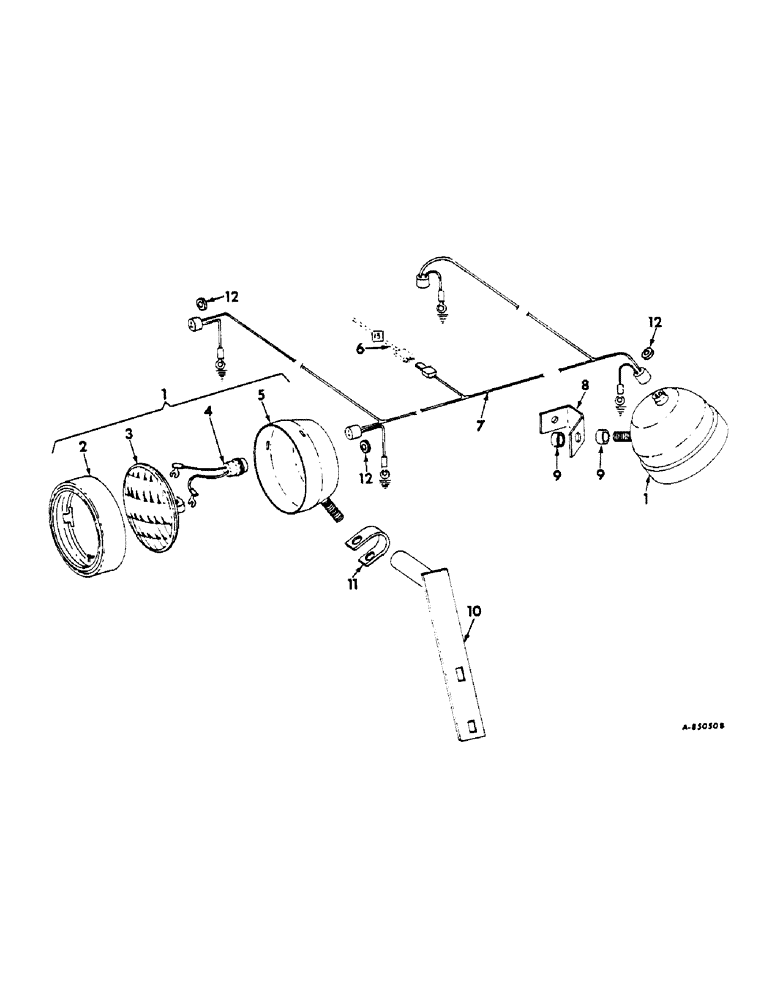

Запчасти Case IH 616 (G-15) - ELECTRICAL SYSTEM, AUXILIARY LIGHTING (06) - ELECTRICAL SYSTEMS

1

391005R91

HEADLIGHT

ASSY, sealed beam head

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

1

376849R91

HEADLIGHT

ASSY, 12 volt, steel frame

1шт.

2

NOT SERVICED SEPARATELY, order 391005R91

1шт.

3

371443R91

LAMP BASE

UNIT, sealed beam head light

4шт.

4

NOT SERVICED SEPARATELY, order 391005R91

1шт.

5

NOT SERVICED SEPARATELY, order 391005R91

1шт.

6

HARNESS, instruments upper, section G electrical wiring and instruments

1шт.

7

674387R1

ASSY, auxiliary lights

1шт.

8

561915R1

BRACKET

light

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

49069D

SPACER

light

4шт.

21211R1

WASHER

.781 x 1.50 x .164

2шт.

10

674384R1

ASSY, light

2шт.

11

561916R1

CLAMP, light

2шт.

12

144227

SPIDER, REEL

rubber

3шт.
