Запчасти Case IH 616 (G-13) - ELECTRICAL SYSTEM, ENGINE WIRING, GASOLINE AND LP GAS (06) - ELECTRICAL SYSTEMS

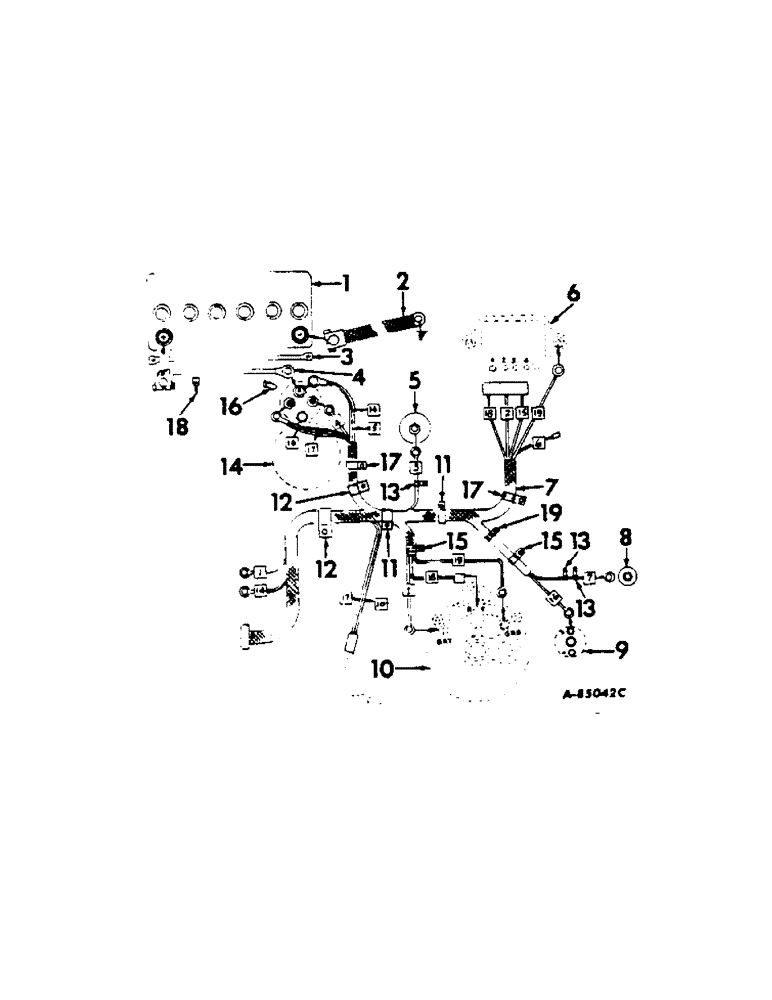

Схема запчастей Case IH 616 - (G-13) - ELECTRICAL SYSTEM, ENGINE WIRING, GASOLINE AND LP GAS (06) - ELECTRICAL SYSTEMS
19
2
4
3
14
13
10
17
15
18
17
15
8
13
6
1
11
7
11
13
9
12
12
16
5

Артикул

Название

Примечание

Количество

1

395602R1

BATTERY, prestolite 30H-A9Z 12 volt

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

WASHER, 3/8 znd hv int-tooth lock

1шт.

2

200467C1

STRAP ASSY, ground, 616 CH501M thru 000718, 622 CH501M thru 001475

1шт.

2

334601R91

STRAP ASSY, ground, 626 CH000719 and up, 622 CH001476 and up

1шт.

3

673425R1

battery hold down

1шт.

675688R1

BOLT, 5/16

2шт.

129-419

WING NUT,5/16"-18

5/16-18 wing

2шт.

4

377447R91

CABLE

ASSY, battery to starter, 616 CH501M thru 000718, 622 CH501M thru 001475

1шт.

4

527319R91

CABLE ASSY, battery to starter, 616 CH000719 and up, 622 CH001476 and up

1шт.

5

665014R91

SENDER UNIT

UNIT ASSY, oil pressure sending

1шт.

6

REGULATOR ASSY, voltage, see section G alternator generator and connections

1шт.

7

395756R1

ASSY, main cable

1шт.

8

665016R91

TEMPERATURE SENDER

UNIT ASSY, temperature sending

1шт.

9

COIL ASSY, ignition, for details see eng-2 parts catalog section D or E for unit listing spark plugs, coil, cables, and distributor

1шт.

10

ALTERNATOR GENERATOR ASSY, see section G alternator generator and connections

1шт.

11

384559R1

CLIP

cable harness

5шт.

12

252388C91

CLAMP

CLIP, cable harness

5шт.

13

365584R1

CLIP

cable harness

3шт.

14

MOTOR ASSY, cranking, see section G cranking motor carbureted engines

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

cable

2шт.

16

399470R1

BOOT

INSULATOR, terminal cover

3шт.

17

358986R1

CABLE CLIP

harness

2шт.

18

363660R1

CLIP

cable harness

1шт.

19

370383R1

CLIP

cable harness

1шт.

204703C1

ASSY, battery

1шт.

204704C1

clamp

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2-13 x 3-1/4 hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Выбрано товаров: 31
