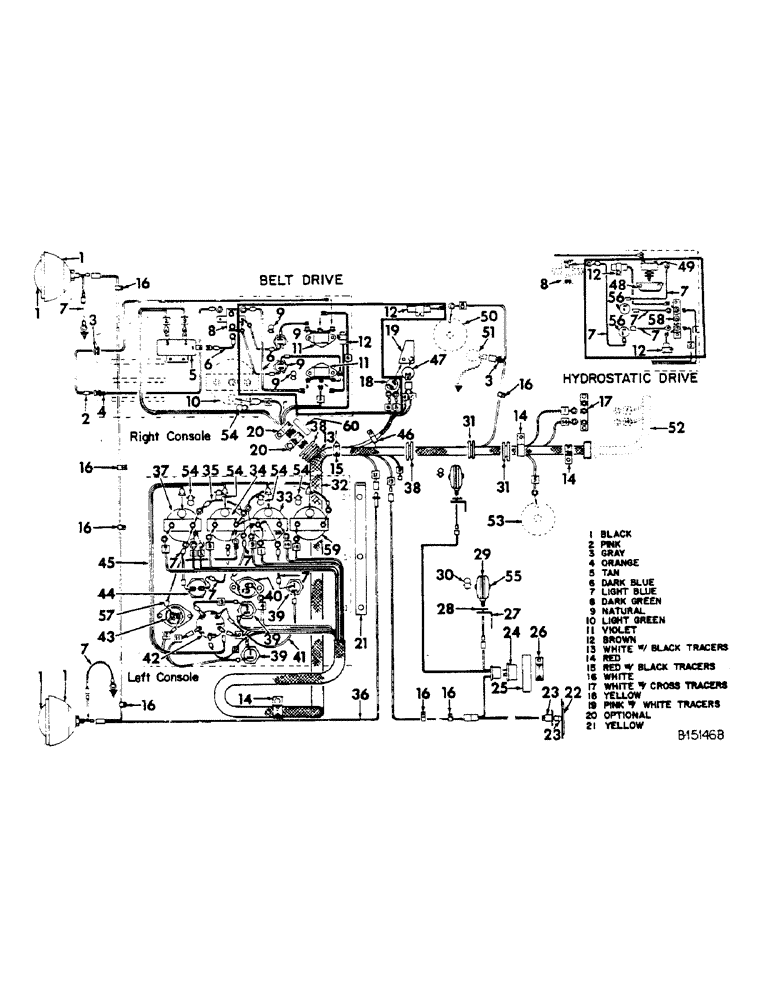

Запчасти Case IH 616 (G-11) - ELECTRICAL SYSTEM, ELECTRICAL WIRING AND INSTRUMENTS, 616 (06) - ELECTRICAL SYSTEMS

1

387730R91

LIGHT

ASSY, sealed beam head 12 volt

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

1

373662R91

LAMP

sealed beam 12 volt

2шт.

2

673283R1

CABLE

SWITCH ASSY, drum safety disconnect

1шт.

3

673899R1

drum disconnect

2шт.

4

673979R1

CABLE ASSY.

ASSY, drum safety switch plug

1шт.

5

202303R91

RELAY

fan and drum switch

1шт.

160544

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

673904R1

ASSY, jumper dimmer switch to relay, 1 hydrostatic drive, 2 belt drive

1шт.

7

673455R1

ASSY, ignition jumper, 6 belt drive, 10 hydrostatic drive

1шт.

8

673452R1

BREAKER

ASSY, electric clutch circuit

1шт.

421572

5-40 x 3/8 znd slt-rd-hd mach

2шт.

426324

NUT,#5-40

5-40 znd hex.

2шт.

426243

LOCK WASHER,#5

Washer, Lock, #5

2шт.

9

673450R2

pilot

2шт.

9

200557H1

BULB,C2V, #1815, 14V

no. 181512 volt

2шт.

10

SPEEDOMETER, for components see list of parts under speedometer, section H

1шт.

11

103898H

SWITCH

ASSY, dimmer

2шт.

160544

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

12

673282R1

CONDENSER

ASSY, electric clutch

2шт.

13

538668R1

BUSHING

snap

1шт.

14

167725C1

CLIP, cable harness

2шт.

15

363660R1

CLIP

cable harness

1шт.

16

362667R1

CLIP

cable harness

7шт.

17

378336R91

BLOCK

ASSY, junction

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 znd hex-hd mach

2шт.

160544

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

142212

SPACER

NUT, 10-32 brass hex.

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

673285R1

SWITCH

ASSY, drum drive clutch disengage

1шт.

19

674658R1

BRACKET, starter safety switch

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

84023R1

CLIP, cable harness

3шт.

21

673460R1

instrument panel clamp

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

673461R1

5/16

3шт.

22

996766R2

LENS

tail light

2шт.

145191

SCREW

6-32 x 1/2 slt-pan-hd tap

6шт.

23

673597R1

SOCKET

light

1шт.

23

142450

BULB,C2R, #67, 13.5V

no. 67 12 volt

1шт.

24

394132R91

FLASHER UNIT

ASSY, warning light

1шт.

25

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

26

394133R1

FASTENER

CLIP, cable

1шт.

27

673588R1

warning lamp

1шт.

28

394262R1

WASHER

1шт.

120371

NUT,1/2"-20, G5

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

29

67291C92

LAMP ASSY, warning

1шт.

30

9417866

BULB,C6, #1156, 12.8V

no. 1156 12 volt

1шт.

31

204666C1

BUSHING, snap

2шт.

32

673454R93

ASSY, instrument upper, belt drive

1шт.

32

674657R2

ASSY, instrument upper, hydrostatic drive

1шт.

33

673424R1

AMMETER

INDICATOR ASSY, 60 amp charge

1шт.

34

673227R1

INDICATOR ASSY, oil pressure, gas and LP gas

1шт.

34

201456C1

OIL PRESSURE GAUGE

INDICATOR ASSY, oil pressure, diesel

1шт.

35

662548R91

ASSY, ignition

1шт.

36

673281R1

ASSY, head and tail light

1шт.

37

673278R1

GAUGE

INDICATOR ASSY, temperature

1шт.

38

204665C1

BUSHING, snap

2шт.

39

376852R91

HOUSING

ASSY, fuse

3шт.

40

397940R93

SWITCH

starter push button, replaces 366317R93

1шт.

436916

SCREW, 10-32 x 1/2 phc slt-pan-hd mach

2шт.

120611

NUT,#10 - 32

10-32 znd sq mach screw

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

41

673456R1

ASSY, ignition jumper

1шт.

42

390748R93

SWITCH

ASSY, light, replaces 376851R91

1шт.

120687

LOCK SCREW,Sl Fil Hd, #10 - 24 x 1/2"

10-24 x 1/2 znd fil-hd slt mach

4шт.

43

397940R93

SWITCH

ASSY, ether starting diesel, replaces 395074R93

1шт.

436916

SCREW, 10-32 x 1/2 phc slt-pan-hd mach

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

44

403562R2

SWITCH

W/KEY, 382458R2, ignition

1шт.

375431R1

LOCK WASHER

19/32 x 1 x 11 ga

1шт.

365502R1

NUT

1шт.

45

673284R1

ASSY, instrument lights

1шт.

46

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

cable harness

1шт.

47

382728R91

SWITCH

safety starting

1шт.

48

674659R1

BRACKET, switch mounting

1шт.

49

674660R1

SWITCH

drum reversing

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

160544

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

50

CLUTCH, electric, for components see list of parts under drum drive and supports, section B

1шт.

51

VALVE, water shutoff, for components see list of parts under water filter and lines, section R

1шт.

52

WIRING, engine, for components see list of parts under engine wiring, section G

1шт.

53

CLUTCH, electric, for components see list of parts under fan drive and idlers, sectio B

1шт.

54

NLS

NO LONGER SERVICED

LAMP, no. 57 12 volt

4шт.

55

LENS, warning lamp, not serviced separately order, 67291C91

1шт.

56

394771R92

SWITCH

ASSY, electric clutch

2шт.

57

673455R1

ASSY, ignition jumper, diesel

1шт.

58

378336R91

BLOCK

ASSY, junction

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

142212

SPACER

NUT, 10-32 brass hex.

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

59

GAUGE, fuel level, see section E fuel gauge

1шт.

382458R2

KEY

ignition switch, not illustrated

1шт.

60

204683C1

convolute conduit

1шт.

405236R1

flasher jumper

1шт.
