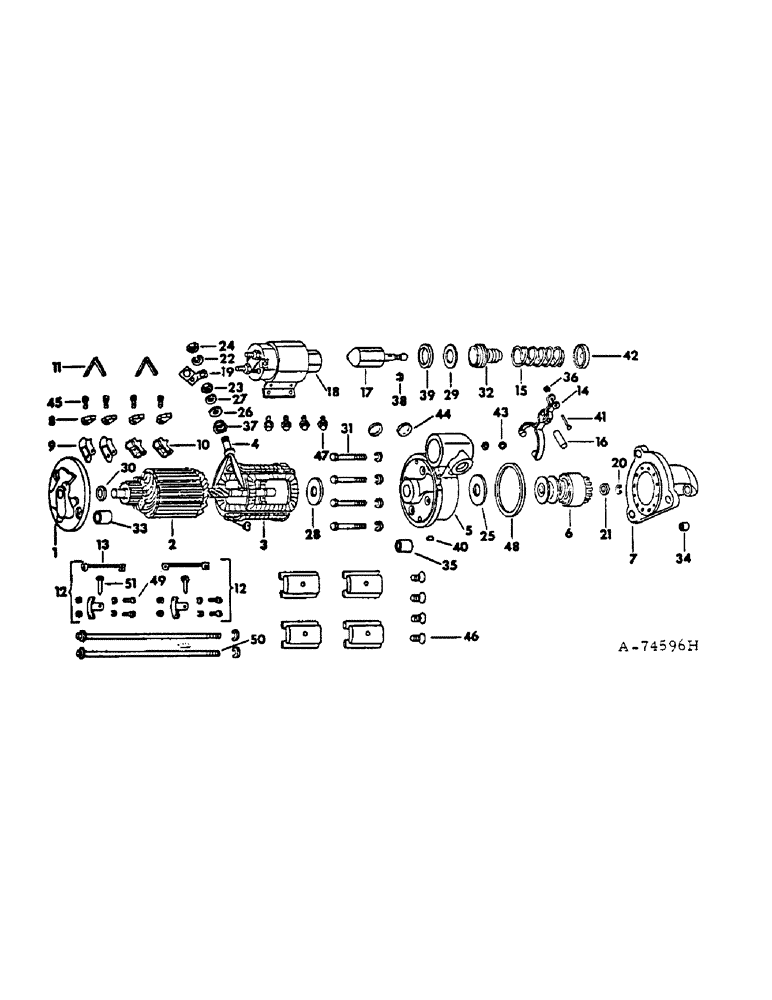

Запчасти Case IH 616 (G-07) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, DIESEL (06) - ELECTRICAL SYSTEMS

1113197

SPARE PART ASSY, cranking, 395758R92, 12 volt

1шт.

104205A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104205A1C

CORE-STARTER

Return Number

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 x 1-1/8 C-Z hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

1945617

HOLDER

FRAME W/BUSHING, 1872678 plug, 810819 & wick, 1916439, commutator end

1шт.

2

1956903

ARMATURE

1шт.

3

1945612

COIL ASSY.

ASSY, field, 4 coils

1шт.

1914873

INSULATOR

field coil

2шт.

4

1933879

TERMINAL CONNECTOR

terminal

1шт.

5

1942241

HOUSING

ASSY, lever, composed of (1) bushing 1933999, (2) plug 9411375, (2) plug 9419572, (1) wich 1947350

1шт.

6

1877350

DRIVE

MOTOR ASSY, drive

1шт.

7

1967333

HEAD (CYLINDER)

HOUSING W/BUSHING, 1943628, plug 453465 & wick, 1916439, drive

1шт.

8

1906987

BRUSH

4шт.

9

1940477

HOLDER

brush ground

2шт.

10

1950546

HOLDER

brush insulated

2шт.

11

1945620

SPRING

brush

2шт.

12

1945923

PACKAGE

brush support

1шт.

13

1930694

CABLE

LEAD, ground

1шт.

14

1942245

LEVER

shift

1шт.

15

1948521

SPRING

lever

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

ASSY

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, , Mach screw Jam, 3/8"-16, G5

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

1942249

CONNECTOR, ELEC

CONNECTOR switch

1шт.

20

1928022

SNAP RING

pinion stop retainer

1шт.

21

1928021

COLLAR

pinion stop

1шт.

22

110730

LOCK WASHER

WASHER, terminal stud lock

1шт.

23

805258

NUT

NUT, terminal stud, 5/32 in. thick

1шт.

24

120377

NUT,3/8" - 16, Gr 5

NUT, , Terminal stud outer 3/8"-16, G5

1шт.

25

R15043

WASHER

brake, between lever housing & motor drive

1шт.

26

1950029

WASHER

insulating terminal stud

1шт.

27

805790

WASHER

WASHER, terminal stud plain

1шт.

28

NLS

NO LONGER SERVICED

space, between lever housing & armature

1шт.

29

1942259

WASHER

retainer spring

1шт.

30

1914842

WASHER

commutator end space

1шт.

31

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

drive housing attaching

4шт.

32

1942257

BOOT

BOOT

1шт.

33

1872678

BUSHING

commutator end

1шт.

34

1955994

BUSHING

drive end

1шт.

35

1933999

BUSHING

lever housing

1шт.

36

1938376

RING, SNAP

RING SNAP lever attaching pin

1шт.

37

931783

BUSHING, insulating terminal stud

1шт.

38

9415235

RING, SNAP

RING SNAP spring retainer snap

1шт.

39

1942256

RETAINER

spring, 1-13/64 in. hole

1шт.

40

Not used in this application

1шт.

41

1942253

PIN

lever attaching

1шт.

42

1942282

PIN

spring, 13/32 in. hole

1шт.

43

9419472

PLUG, 1/2 diameter lever housing

2шт.

44

9411375

PLUG

1-3/16 diameter lever housing

2шт.

45

1959514

SCREW

SCREW, brush attaching

4шт.

46

Not used in this application

1шт.

47

Not used in this application

1шт.

48

Not used in this application

1шт.

49

Not used in this application

1шт.
