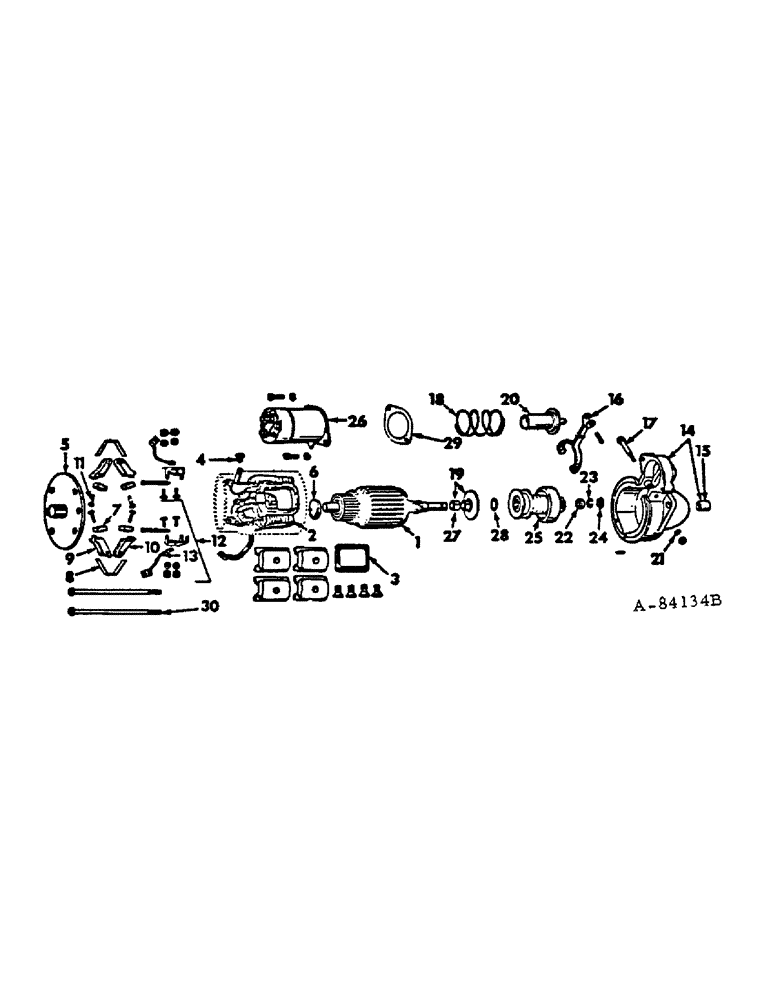

Запчасти Case IH 616 (G-06) - ELECTRICAL SYSTEM, CRANKING MOTOR - DELCO-REMY, CARBURETED (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1108321
SPARE PART ASSY, cranking, 395755R92
1шт.
104189A1R
REMAN-STARTER
10MT WITH MOUNTED -- DELCO 1107229, 1107444 AND 1108299
1шт.
104189A1C
CORE-STARTER
Return Number
1шт.
180123
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd
3/8-16 x 1-1/8 C-Z hex-hd cap
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
1
1947353
FRAME
ARMATURE
1шт.
2
1942870
COIL
FIELD ASSY, 3 coils
1шт.
2
1935131
COIL
SHUNT, field coil
1шт.
3
1927853
FOAM INSULATION
INSULATION, field coil
4шт.
4
1966391
GROMMET
field frame
1шт.
5
1928966
FRAME
FRAME, commutator end
1шт.
6
1914842
WASHER
commutator end thrust
1шт.
7
1906945
COMMUTATOR BRUSH
4шт.
8
1926622
VALVE SPRING
brush
4шт.
9
1940477
HOLDER
brush ground
2шт.
10
1926618
HOLDER
brush insulated
2шт.
11
1926648
SCREW, brush attaching
4шт.
12
1928015
BRACKET
PACKAGE, brush holder support
2шт.
13
1926605
ELECTRICAL WIRE
WIRE LEAD, brush ground
2шт.
14
1966914
HOUSING
ASSY, drive end
1шт.
15
1862383
BUSHING
drive end
1шт.
16
1951567
LEVER
shift
1шт.
17
1814529
STUD, shift lever
1шт.
18
1958679
SPRING
plunger return
1шт.
19
820149
PLATE
ASSY, center bearing
1шт.
20
1941113
PLUNGER
solenoid switch
1шт.
21
1953479
WASHER, shift lever stud sealing lock
1шт.
22
1928021
COLLAR
pinion stop drive end
1шт.
23
1928022
SNAP RING
pinion stop retainer drive end
1шт.
24
1928023
WASHER
drive end thrust
1шт.
25
1939109
PINION
DRIVE ASSY, motor
1шт.
26
1114356
SOLENOID,Starter
ASSY, solenoid
1шт.
120622
NUT,#8-32
NUT, #8-32
2шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
NUT, Jam, 3/8"-16, G5
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
110730
LOCK WASHER
WASHER, 3/8 light lock
1шт.
27
820148
BUSHING
center bearing
1шт.
28
R15043
WASHER
between center bearings & motor drive
1шт.
29
1952427
GASKET
solenoid switch
1шт.
Выбрано товаров: 39
