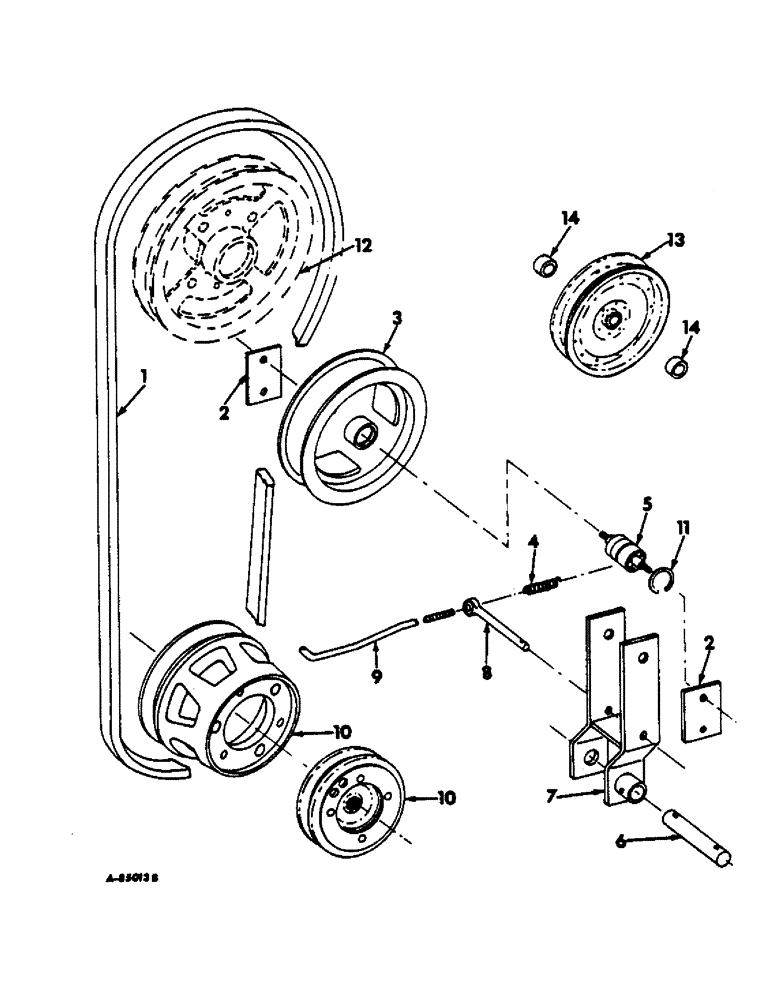

Запчасти Case IH 616 (B-14) - POWER TRAIN, DRUM DRIVE PULLEY AND IDLER (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
2
673875R1
drum drive belt tightner, 616 CH501M thru CH585N, 622 CH501M thru CH1039N
2шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
2шт.
120877
NUT, 3/8-16 znd hex
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
3
673649R1
belt idler, 616 CH501M thru CH585N, 622 CH501M thru CH1039
1шт.
4
53998V
SPRING
drum drive belt tightner, replaces CP10459
1шт.
432-1628
COTTER PIN,1/4" x 1 3/4"
Pin, Split (Cotter), 1/4" x 1 3/4"
1шт.
Q5035
WASHER
17/32 x 1 x 16 ga.
1шт.
5
673376R91
BEARING ASSY
main drive idler, 616 CH501M thru CH585N, 622 CH501M thru CH1039N
1шт.
472154R1
LOCK NUT,1/2"-20, GB
1/2-20 hex. lock
2шт.
6
672990R1
PIN
pivot drum drive idler arm
1шт.
7
672987R91
ARM ASSY, drum drive belt tightener, 616 CH501M thru CH585N, 622 CH501M thru CH1039N
1шт.
7
201104C1
ASSY, drum drive belt tightener, 616 CH000586 and up, 622 CH001040 and up
1шт.
8
673651R1
belt tension adj
1шт.
187988
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), 3/16" x 1 1/4"
1шт.
23281R1
PIN, 3/8 x 1-1/2 znp slt spring
1шт.
609836R1
WASHER
1-1/32 x 1-3/4 x 16 ga C-Z
2шт.
9
672991R1
drum belt adjusting
1шт.
102637
NUT,1/2"-13, G5
2шт.
PO10535
WASHER
17/32 x 1-1/4 x 11 ga.
1шт.
10
672985R1
drum drive, belt drive
1шт.
10
674686R1
drum drive, hydrostatic drive
1шт.
11
559203R1
SNAP RING,#118, 1.260", Int, Spiral
brg retainer 616 CH501M thru CH585N, 622 CH501M thru CH1039N
1шт.
12
PULLEY, drum drive upper, see section B drum drive and supports
1шт.
13
674947R91
PULLEY
ASSY, belt idler, 616 CH000586 and up, 622 CH001040 and up
1шт.
179896
BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5
1шт.
472154R1
LOCK NUT,1/2"-20, GB
1/2-20 hex. lock
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
14
201106C1
SPACER
drum idler, 616 CH000586 and up, 622 CH001040 and up
1шт.
