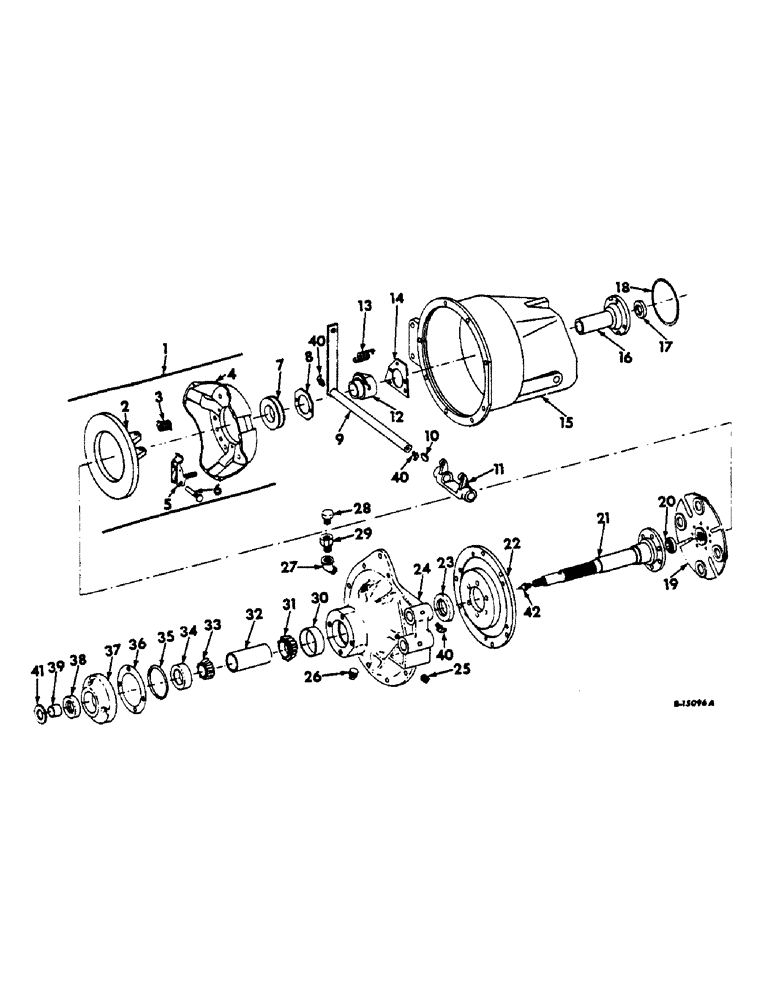

Запчасти Case IH 616 (B-06) - POWER TRAIN, CLUTCH, HOUSING AND INPUT SHAFT, BELT DRIVE (03) - POWER TRAIN

1

379483R91

PLATE ASSY.

ASSY, clutch pressure

1шт.

181340

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

SCREW, 5/16-24 x 1-1/8 hex-hd cap

6шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

6шт.

2

102318HA

PLATE, clutch pressure

1шт.

3

68289H

clutch pressure

9шт.

4

102317HA

LARGE PLATE

clutch back

1шт.

5

43919HEX

LEVER

PACKAGE, clutch lever assembly

1шт.

6

29774HB

PIN

clutch lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

7

362028R92

BALL BEARING,52.39mm ID x 90.86mm OD x 20.5mm W

clutch release

1шт.

8

379463R1

ANCHOR

clutch release brg carrier outer

1шт.

9

395657R11

ASSY, clutch release

1шт.

10

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

3/16 x 7/8 Woodruff

11шт.

11

584392R1

NO LONGER SERVICED

YOKE, clutch release

1шт.

12

584361R2

SLEEVE CYLINDER

CARRIER, clutch release brg

1шт.

13

860239R1

SPRING

clutch release brg carrier

2шт.

14

379456R1

NO LONGER SERVICED

ANCHOR, clutch release brg carrier inner

1шт.

15

383576R1

clutch

1шт.

103026

NUT,3/8"-24, G5

9шт.

20692R1

BOLT (SPREADER),Hex, 3/8" - 24 x 2", Gr 8

SCREW, 3/8-24 x 2 hex-hd cap

9шт.

376107R1

BOLT,Hex, 7/16" - 14 x 1 1/4", W/ Nylon Pellet

SCREW W/NYLON PELLET, 7/16-14 x 1-1/4 hex-hd cap

7шт.

16

573996R2

CAP, clutch shaft brg

1шт.

379446R1

SCREW,Hex, 3/8" - 16 x 1 3/8", W/ Nylon Pellet

W/NYLON PELLET, 3/8-16 x 1-3/8 hex-hd cap

3шт.

17

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

input shaft left brg oil

1шт.

18

379447R1

RING

clutch shaft brg cap sq seal

1шт.

19

395662R91

DISC ASSY, clutch driven, 10 in. hv duty

1шт.

20

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

clutch pilot

1шт.

21

395659R1

SHAFT

transmission input, 616 501M thru 519M, 622 501M thru 604M, if 395659R1 is required order 404694R1 shaft and 144426H nut

1шт.

19256R1

LOCK NUT,1"-14, G5

1-14 hex lock

1шт.

Q123

WASHER

1-1/32 x 2-1/2 x 16 ga

1шт.

21

404694R1

transmission input, 616 520N up, 622 605N up

1шт.

144426H

LOCK NUT,1" - 14, G8

1-14 cdp hex. lock

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

1шт.

22

395661R1

clutch housing

1шт.

631558R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2-13 x 1-1/4 hex-hd cap

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

23

401450R91

SEAL

clutch housing cover oil

1шт.

24

395663R1

clutch housing

1шт.

25

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1/4-18 automotive hex-hd pipe

1шт.

26

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

3/8-18 auto sq-hd pipe

1шт.

27

120702

ELBOW,45 Degree, 3/8" NPT Street

3/8 45 deg street

1шт.

28

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

clutch housing cover

1шт.

29

119932

ADAPTER, 3/8-1/8 pipe reducer

1шт.

30

917217R1

BEARING, CUP

transmission input shaft inner

1шт.

31

917218R91

ROLLER BEARING

ASSY, transmission input shaft inner cone

1шт.

32

395660R1

transmission input shaft brg

1шт.

33

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

ASSY, transmission input shaft outer

1шт.

34

165964R1

BEARING CUP

transmission input shaft outer

1шт.

35

313305R1

O-RING

3-3/4 x 4 x 1/8

1шт.

36

395666R1

clutch housing cover brg cap .003

1шт.

36

395667R1

clutch housing cover brg cap .005

1шт.

37

395664R1

clutch housing cover brg

1шт.

NLS

NO LONGER SERVICED

3шт.

38

401452R91

clutch housing cover brg cap oil

1шт.

39

395668R1

SPACER, propulsion sheave hub

1шт.

560171R1

clutch release shaft set, used in 584392R1

1шт.

40

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 ptf 90 deg angle lub

3шт.

41

674382R1

transmission input shaft

1шт.

42

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.
