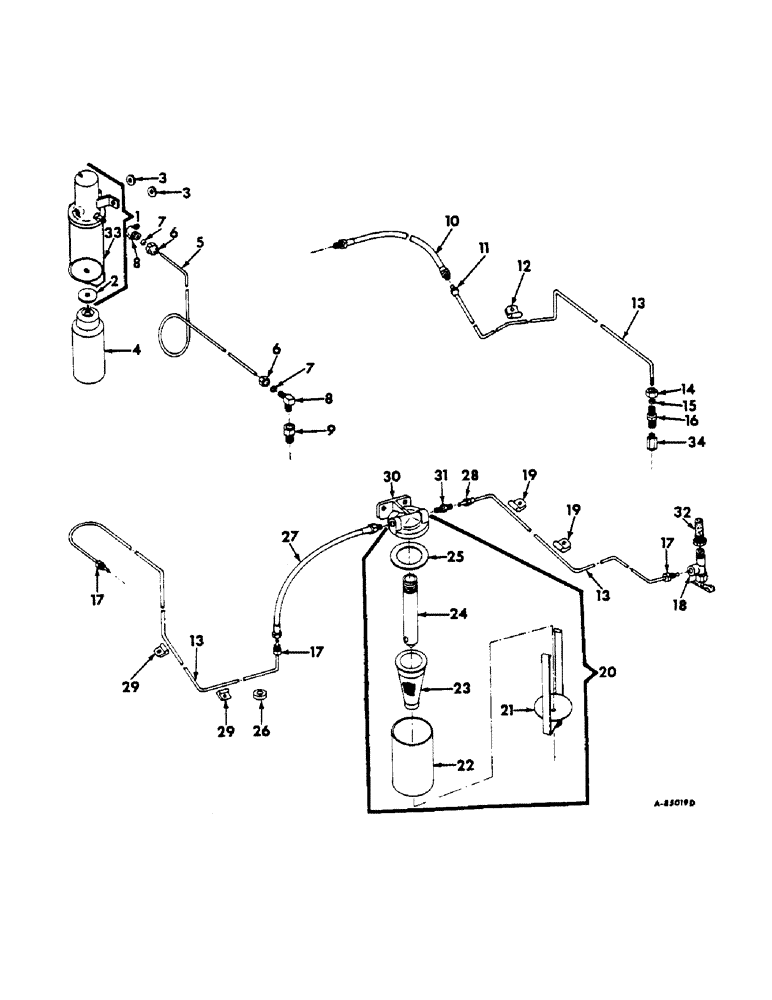

Запчасти Case IH 616 (E-14) - FUEL SYSTEM, FUEL LINES, DIESEL (02) - FUEL SYSTEM

1

533231R92

SOLENOID

ASSY, measured shot ether injection

1шт.

1

393719R91

NO LONGER SERVICED

SOLENOID ASSY, ether injection

1шт.

18657R1

BOLT,Hex, 1/4"-20 x 1-1/2", G2

1/4-20 x 1-1/2 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

395686R1

GASKET

ether starting injector

1шт.

3

385544R1

SPACER,1/4" Pipe x 3/8"

solenoid mount

2шт.

4

385064R91

FLUID

ether starting, 12 oz. can

1шт.

5

673312R1

starting fluid

1шт.

6

121220

TUBE NUT

5/16-24 ball sleeve tube

2шт.

7

121322

SLEEVE,Ball Type, 1/8" tube

1/8 ball

2шт.

8

140303

ELBOW

1/8-27 90 deg ball sleeve tube

2шт.

9

269635R91

NOZZLE CAP

ASSY, starting fluid

1шт.

10

673902R91

FUEL HOSE,0.31" ID x 12.00", SAE 30R2 Type 1

- Fuel return 0.31" ID x 12.00", SAE 30R2 Type 1

1шт.

11

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

1шт.

12

42914D

fuel line return

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

1шт.

13

LINE ASSY, fuel, Serial Range: tank-pump

1шт.

13

LINE ASSY, fuel, Serial Range: filter-pump

1шт.

13

LINE ASSY, fuel return, make from 50 ft. roll marked 995062R1

1шт.

14

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

5/16 ball sleeve tube

1шт.

15

114631

SLEEVE,Ball Type, 5/16" Tube

5/16 ball

1шт.

16

114640

FITTING

CONNECTOR, 1/4-18 ball sleeve tube

1шт.

17

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 inverted flared tube

3шт.

18

152572C91

VALVE

ASSY, fuel shut-off, replaces 672947R92

1шт.

18

202691C1

ASSY, fuel shut-off, 616 C.P. 000809 and up, 622 C.P. 001676 and up

1шт.

19

140568

CLAMP

CLIP, no. 5 5/16 x 5/16 closed

2шт.

20

672821R91

FILTER

ASSY, fuel

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

370785R91

CLAMP

BALE ASSY, fuel filter

1шт.

22

370783R1

BOWL

filter

1шт.

23

370784R91

FILTER SCREEN

ASSY, fuel

1шт.

24

54762D

TUBE

center

1шт.

25

370520R1

GASKET

body

1шт.

26

31987D

clamp

1шт.

27

202997C1

HOSE ASSY.

fuel filter to fuel line

1шт.

28

140381

ANGLE BAR

1/2-20 flared tube

1шт.

29

102869R1

CLIP

CLAMP, 5/16 bolt

4шт.

30

NOT SERVICED SEPARATELY, order 672821R91

1шт.

31

110200

CONNECTOR, ELEC

1/2-20 flared tube

1шт.

31

137422

ELBOW

CONNECTOR, 1/2-20 flared tube, 616 C.P. 000809 and up, 622 C.P. 001676 and up

1шт.

32

666129R91

STRAINER ASSY.

fuel tank

1шт.

33

404247R1

BAIL

ASSY, injector

1шт.

34

202692C1

1/2-20 x 45 degree flare

1шт.
