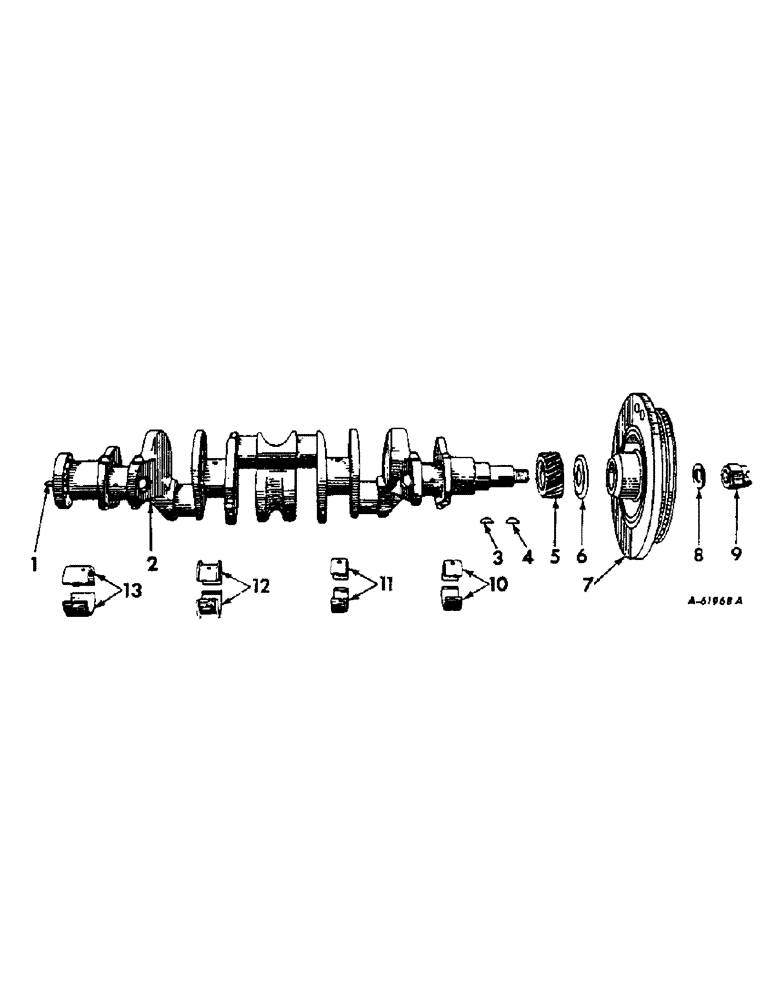

Запчасти Case IH 420 (343) - CRANKSHAFT, BEARINGS AND GEAR (10) - ENGINE

1

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.

2

320188R93

CRANKSHAFT

ASSY, standard size, Composed of

1шт.

367630R91

BEARING SET

1шт.

382357R91

CRANKSHAFT BEARING

BEARING SET

1шт.

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

82970R1

STUD

PIN

1шт.

2

320186R91

CRANKSHAFT W/BEARING FIELD PACKAGE, undersize, Consists of six connecting rod bearings, four crankshaft bearings and crankshaft

1шт.

3

117994

WOODRUFF KEY,#23, 5/16" x 1 3/8", HT

KEY, 5/16 x 1-3/8 Woodruff no. 23, fan drive pulley

1шт.

4

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

3/16 x 1 Woodruff no. 13, crankshaft gear

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

338949R91

DAMPER

ASSY, vibration

1шт.

8

70109R1

WASHER

starting crankshaft nut

1шт.

9

425-1516

JAM NUT,Jam, 1"-14, G5

starting crankshaft

1шт.

10

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, standard

1шт.

10

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 undersize

1шт.

10

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 undersize

1шт.

10

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 undersize

1шт.

10

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .020 undersize

1шт.

11

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY, crankshaft intermediate, 2 halves, standard

1шт.

11

367303R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate, 2 halves, .002 undersize

1шт.

11

376673R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .010 undersize

1шт.

11

376686R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .020 undersize

1шт.

11

367291R91

BEARING

ASSY, crankshaft intermediate front, 2 halves, .030 undersize

1шт.

12

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

ASSY, crankshaft intermediate rear, 2 halves, standard, D-282 w/serial no. 44821 & below

1шт.

12

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, standard, D-282 w/serial no. 44822 & above

1шт.

12

367306R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate rear, 2 halves, .002 undersize, D-282 w/serial no. 44821 & below

1шт.

12

332273R91

BEARING SET

ASSY, crankshaft intermediate, 2 halves, .002 undersize, D-282 w/serial no. 44822 & above

1шт.

12

376676R91

JOURNAL

BEARING ASSY, crankshaft intermediate rear, 2 halves, .010 undersize, D-282 w/serial no. 44821 & below

1шт.

12

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 undersize, D-282 w/serial no. 44822 & above

1шт.

12

376689R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate rear, 2 halves, .020 undersize, D-282 w/serial no. 44821 & below

1шт.

12

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 undersize, D-282 w/serial no. 44822 & above

1шт.

12

367294R91

BEARING ASSY

ASSY, crankshaft intermediate rear, 2 halves, .030 undersize, D-282 w/serial no. 44821 & below

1шт.

12

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 undersize, D-282 w/serial no. 44822 & above

1шт.

13

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, standard

1шт.

13

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 undersize

1шт.

13

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 undersize

1шт.

13

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 undersize

1шт.

13

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 undersize

1шт.

367275R91

KIT

BEARING SET, crankshaft, standard, D-282 w/serial no. 44821 & below, Consists of

1шт.

367276R91

BEARING LINER

BEARING

1шт.

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

1шт.

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

1шт.

367275R91

KIT

BEARING

1шт.

382357R91

CRANKSHAFT BEARING

BEARING SET, crankshaft, standard, D-282 w/serial no. 44822 & above, Consists of

1шт.

332267R91

BEARING SET

BEARING

1шт.

367276R91

BEARING LINER

BEARING

1шт.

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

1шт.

367285R91

BEARING

1шт.
