Запчасти Case IH 420 (297) - GOVERNOR LUBRICATION PIPE, 414, UP TO SERIAL NUMBER CH812E, 420, UP TO SERIAL NUMBER CH1371E (10) - ENGINE

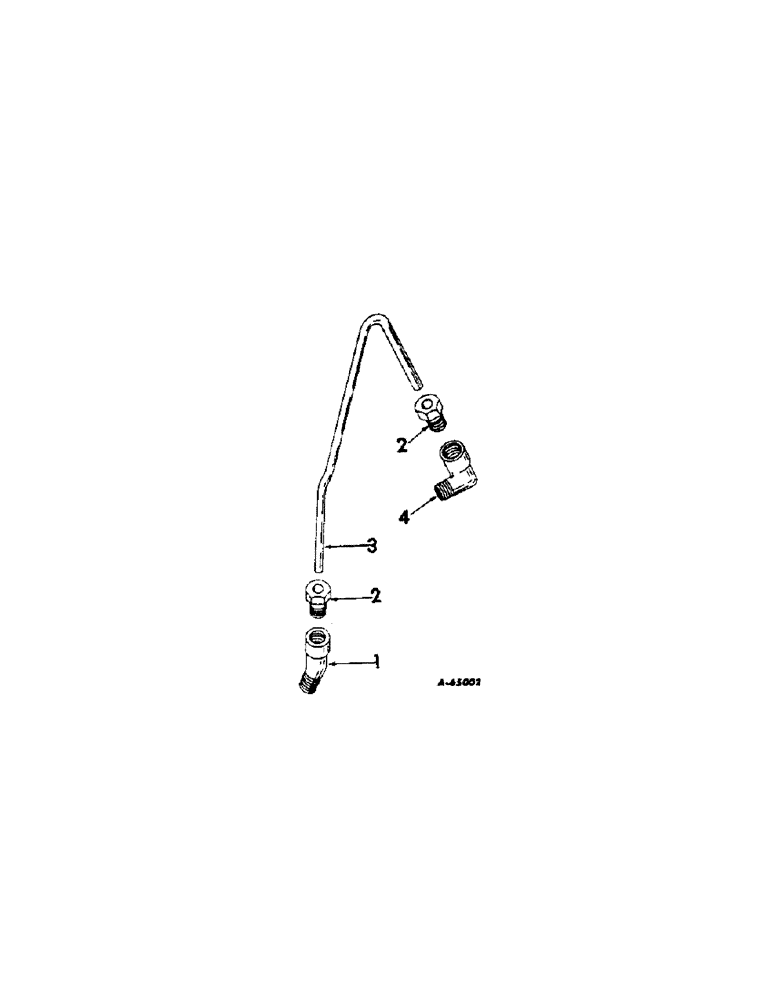

Схема запчастей Case IH 420 - (297) - GOVERNOR LUBRICATION PIPE, 414, UP TO SERIAL NUMBER CH812E, 420, UP TO SERIAL NUMBER CH1371E (10) - ENGINE
1
2
2
4
3

Артикул

Название

Примечание

Количество

1

18580R1

ELBOW, lubrication, Serial Range: tube-governor

1шт.

2

25038HA

TUBE NUT,3/8"-24

NUT, lubrication tube

2шт.

3

376591R1

TUBE, governor lubrication

1шт.

4

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

lubrication tube to front cover

1шт.

Выбрано товаров: 4
