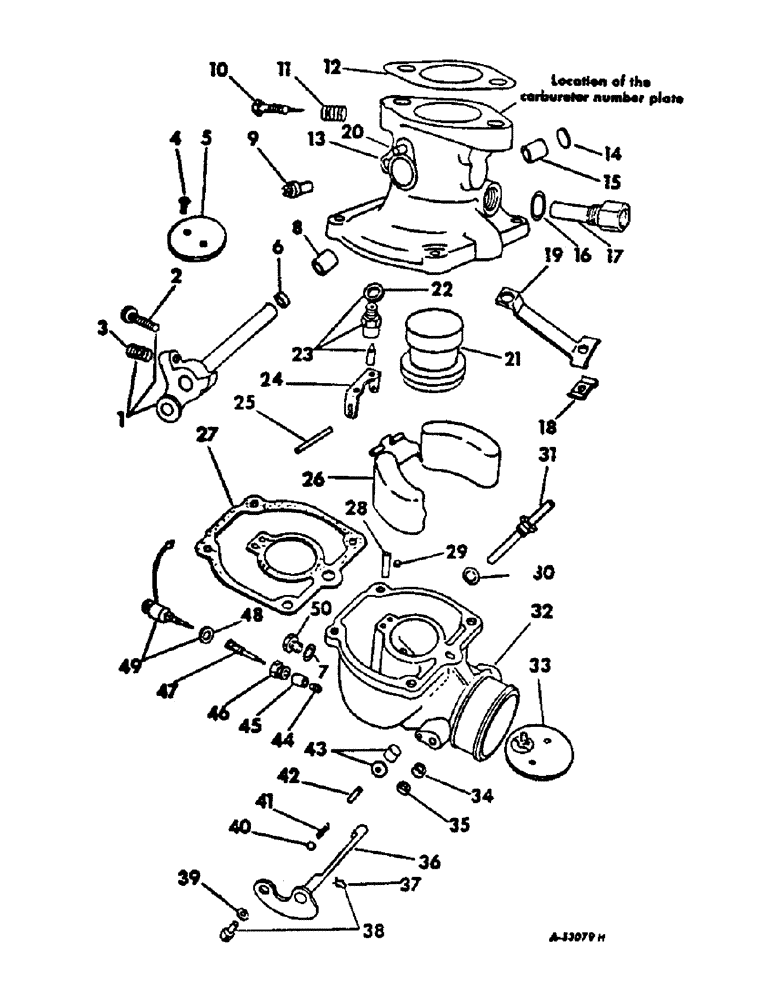

Запчасти Case IH 420 (275) - CARBURETOR, IH, GASOLINE (10) - ENGINE

372723R92

CARBURETOR ASSY, 1-3/8 updraft, double venturi, Order carburetor, 379813R95

1шт.

379813R95

CARBURETOR ASSY, 1-3/8 updraft, less ref nos. 12, 48 & 49

1шт.

103026

NUT,3/8"-24, G5

2шт.

1

368139R91

SHAFT

AND LEVER ASSY, throttle

1шт.

2

132128

SCREW, throttle shaft adjusting Slotted Fil Hd, #10-32 x 7/8"

1шт.

3

25484D

SPRING

idler throttle adjustment retainer

1шт.

4

47392D

SCREW

throttle butterfly

2шт.

5

54489D

VALVE

BUTTERFLY, throttle

1шт.

6

SEAL, throttle shaft dust, Order package 387454R93

2шт.

7

362526R1

GASKET

fuel adjusting

1шт.

8

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

9

368142R1

PLUG, idle passage

1шт.

10

362528R1

ADJUSTMENT SCREW

idle adjusting

1шт.

11

351959R1

SPRING

idle adjustment screw retainer

1шт.

12

530681R1

GASKET

carburetor, Not included in carburetor assy

1шт.

13

BODY ASSY, throttle, Not serviced separately, Order carburetor assy

1шт.

14

57956D

PLUG

throttle shaft expansion

1шт.

15

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

16

GASKET, strainer screen retainer, Order package 387454R93

1шт.

17

29902DX

SCREEN

UNION W/STRAINER, fuel pipe

1шт.

18

32596D

FASTENER

CLAMP, starting shutter control

1шт.

120611

NUT,#10 - 32

NO. 10NF SQ C-Z NUT

1шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

NO. 10NF X 3/8 C-Z SLT-FIL-HD MACH SCREW

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

368146R11

SUPPORT

BRACKET W/CLAMP, 32956D and hardware starting shutter control

1шт.

20

45110D

PIN

throttle stop

1шт.

21

372722R1

VENTURI, double, Used w/carburetor, 372723R92

1шт.

21

47407D33

VENTURI

single, Used w/carburetor, 379813R95

1шт.

22

GASKET, needle valve cage, Order package 387454R93

1шт.

23

47396DAX40

NEEDLE

CAGE ASSY, needle valve

1шт.

24

47394D

SUPPORT

float lever pivot

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

NO. 4 X 5/16 C-Z SLT-RD-HD MACH SCREW

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

25

47395D

PIVOT

float lever

1шт.

26

47398DX

FLOAT

AND LEVER ASSY

1шт.

27

GASKET, fuel bowl, Order package 387454R93

1шт.

28

49798D75

JET

idle metering #75

1шт.

29

35606D52

BLEED, main air

1шт.

30

GASKET, metering nozzle, Order package 387454R93

1шт.

31

374328R1

NOZZLE, metering, Used w/carburetor, 372723R92

1шт.

31

379065R1

NOZZLE INJECTION

NOZZLE, metering, Used w/carburetor, 379813R95

1шт.

32

BOWL ASSY, fuel, Not serviced separately, Order carburetor assy

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto C-Z sq-hd pipe

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 znd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

33

357002R12

SHUTTER

ASSY, starting

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

NO. 6 X 1/4 C-Z SLT-RD-HD MACH SCREW

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

34

SEAL, choke shaft dust, Order package 387454R93

1шт.

35

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal

1шт.

36

352642R91

LEVER

SHAFT AND LEVER ASSY, starting shutter

1шт.

37

363881R1

RETAINER

starting shutter lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

NO. 10NF X 5/8 C-Z FIL-HD MACH SCREW

1шт.

38

64283DBX

PIVOT ASSY.

SWIVEL ASSY, starting shutter lever

1шт.

39

32592D

WASHER

WASHER, starting shutter lever swivel

1шт.

40

52791R1

BALL,3/16" Dia, Stainless

friction spring

1шт.

41

46059D

SPRING

staring shutter friction

1шт.

42

351588R1

PIN

starting shutter stop

1шт.

43

60947D

PLUG

PACKAGE, drip hole filler replacement

1шт.

44

374330R1

SEAT, fuel adjustment screw, .060, Used w/carburetor, 372723R92

1шт.

44

380500R1

SEAT

fuel adjustment screw, .063, Used w/carburetor, 379813R95

1шт.

45

PACKING, fuel adjusting screw, Note, Order gasket 362526R1 and plug 362525R1

1шт.

46

NUT, fuel adjusting screw packing, Order gasket 362526R1 and plug 362525R1, Note

1шт.

47

SCREW, fuel adjusting, Note, Order gasket 362526R1 and plug 362525R1

1шт.

48

381955R1

GASKET

shut-off valve

1шт.

49

384818R94

VALVE

ASSY, fuel shut-off solenoid

1шт.

50

362525R1

PLUG

fuel adjusting

1шт.

387454R93

PACKAGE

carburetor gasket, For components see service packages

1шт.

387455R92

PACKAGE

carburetor overhaul, For components see service packages

1шт.
