Запчасти Case IH 420 (259) - FUEL REGULATOR, FOR L.P. GAS BURNING ENGINES (10) - ENGINE

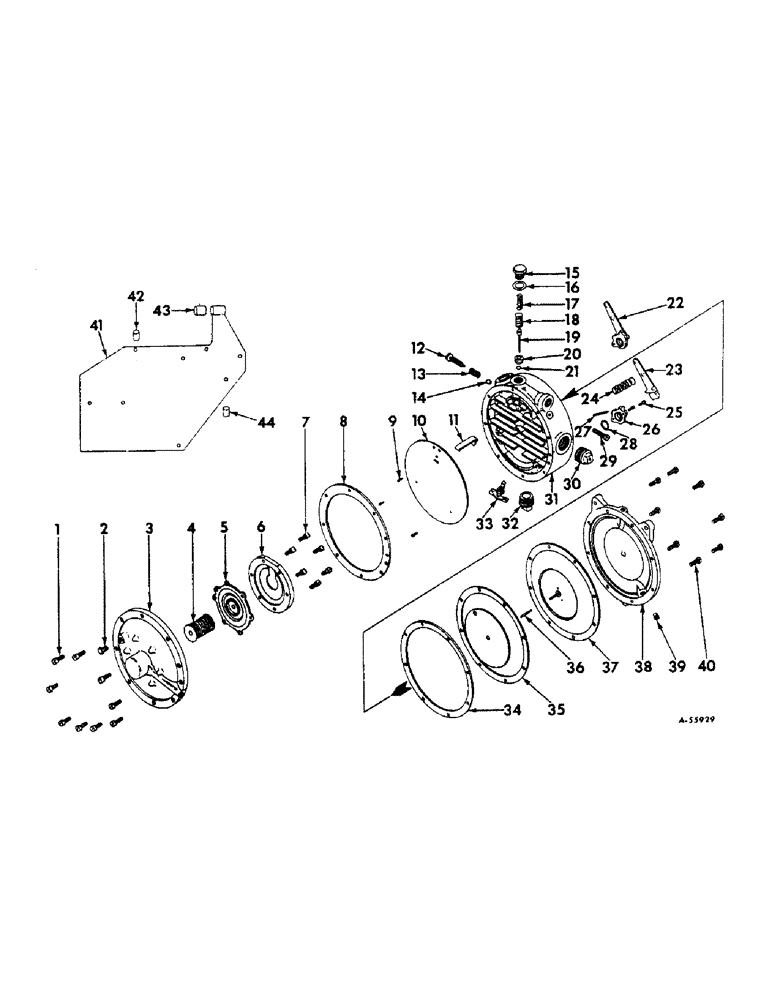

Схема запчастей Case IH 420 - (259) - FUEL REGULATOR, FOR L.P. GAS BURNING ENGINES (10) - ENGINE
36
6
27
18
17
20
22
30
15
5
8
26
37
39
10
19
28
7
41
24
2
1
9
29
34
40
16
14
21
31
23
32
11
43
38
42
44
12
4
33
13
25
3
35

Артикул

Название

Примечание

Количество

277003R91

REGULATOR ASSY, fuel, ref nos. 41 through 44 not included

1шт.

NUT, 5/16

3шт.

SCREW, 5/16 x 1-5/8 cap

3шт.

WASHER, 5/16 lock

3шт.

1

19270R91

SCREW W/LOCKWASHER ASSY, no. 10-32UNF x 5/8 slt-fil-hd mach

9шт.

2

444814

PLUG,Hex Hd, 1/8"-27, Brass

1/8 pipe

1шт.

3

277195R91

COVER ASSY, vaporizer

1шт.

4

277196R91

SPRING ASSY, high pressure

1шт.

5

277370R91

DIAPHRAGM ASSY, high pressure

1шт.

6

277197R1

COVER, high pressure diaphragm

1шт.

7

19270R91

SCREW W/LOCKWASHER ASSY, no. 10-32UNF x 5/8 slt-fil-hd mach

6шт.

8

277198R1

GASKET, vaporizer cover

1шт.

9

277199R1

SCREW, no. 5-40 UNC x 1/4 slt-rd-hd mach

3шт.

10

277350R1

PLATE, vaporizer partition

1шт.

11

277351R1

LEVER, high pressure valve

1шт.

12

37179D

SCREW, idle adjusting

1шт.

13

14526D

SPRING, idle adjusting screw retaining

1шт.

14

277352R1

SCREW, type B bleed

1шт.

15

277353R1

RETAINER, high pressure valve spring

1шт.

16

277354R1

GASKET, high pressure valve spring retainer

1шт.

17

277355R1

SPRING, high pressure valve

1шт.

18

277356R1

SPRING, high pressure valve seat retaining

1шт.

19

277357R1

VALVE, high pressure

1шт.

20

277358R91

SEAT ASSY, high pressure valve

1шт.

21

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, High pressure valve

1шт.

22

277359R91

VALVE ASSY, low pressure, Includes ref nos. 23 through 28

1шт.

23

113443R91

VALVE ASSY, low pressure

1шт.

24

277360R1

SPRING, low pressure valve

1шт.

25

19271R91

SCREW W/LOCKWASHER ASSY, no. 6-32UNC x 7/16, low pressure valve

2шт.

26

277361R1

SEAT, low pressure valve

1шт.

27

277362R1

PIN, pivot

1шт.

28

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

low pressure valve

1шт.

29

113434R91

STRAINER ASSY, fuel inlet

1шт.

30

113451R1

PLUG, 3/4 pipe

1шт.

31

BODY ASSY, partial regulator, Not serviced separately, Order regulator assy, 377003R91

1шт.

32

113451R1

PLUG, 3/4 pipe

1шт.

33

59708D

COCK, DRAIN

VALVE, drain

1шт.

34

64433D

GASKET, low pressure partition plate

1шт.

35

277365R1

PLATE, partition, low pressure

1шт.

36

277366R1

PIN, diaphragm push

1шт.

37

277367R91

DIAPHRAGM W/PUSH PIN ASSY, low pressure

1шт.

38

277368R1

PLATE, support

1шт.

39

118813

PLUG, 1/8 pipe

1шт.

40

19270R91

SCREW W/LOCKWASHER ASSY, no. 10-32UNF x 5/8 slt-fil-hd mach

8шт.

41

273375R11

PLATE, regulator, fuel filter and generator mounting

1шт.

SCREW, 7/16-17NC x 1-1/4 hex-hd cap

3шт.

WASHER, 7/16 lock

3шт.

42

277004R1

SPACER

fuel regulator

3шт.

43

NOT USED

1шт.

44

277006R1

SPACER, regulator, fuel filter and generator mounting plate

3шт.

277369R91

FUEL REGULATOR KIT, overhaul, Includes ref no. 1, 4, 5, 7, 8, 11, 12, 17, 18, 19, 20, 21, 22, 24, 25, 28, 29, 34 and 37

1шт.

Выбрано товаров: 51
