Запчасти Case IH 420 (238) - FUEL PUMP AND CONNECTIONS, GASOLINE ENGINE (10) - ENGINE

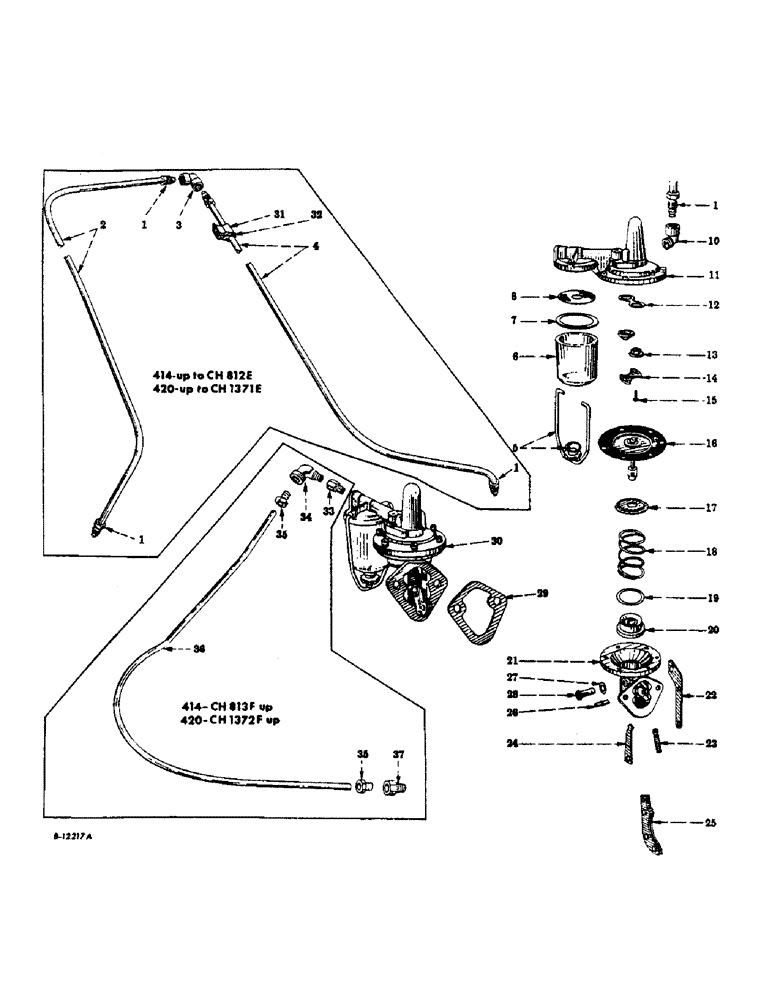

Схема запчастей Case IH 420 - (238) - FUEL PUMP AND CONNECTIONS, GASOLINE ENGINE (10) - ENGINE
3
26
5
33
10
32
12
25
36
17
13
35
24
16
4
28
22
1
34
2
11
7
29
27
1
21
19
18
23
14
31
20
15
1
6
37
35
8
1
30

Артикул

Название

Примечание

Количество

1

19985R1

TUBE NUT,1/2"-20

NUT, coupling

4шт.

2

276529R2

PIPE, fuel, Serial Range: union-carburetor

1шт.

3

17152R1

ELBOW, fuel pipe

1шт.

4

276530R2

PIPE, fuel, fuel, Serial Range: pump-union

1шт.

5

85864R92

BAIL AND SCREW ASSY, strainer

1шт.

6

85066R91

BOWL W/GASKET ASSY, strainer

1шт.

7

51346VA

GASKET, strainer bowl

1шт.

8

23516D

SCREEN, strainer

1шт.

9

NOT USED

1шт.

10

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

90 deg, fuel pump

1шт.

11

COVER, fuel pump, Order pump, 269543R92

1шт.

SCREW, no. 10NF x 5/8 fil-hd

6шт.

WASHER, no. 10 lock

6шт.

12

74650R1

GASKET, valve cage

1шт.

13

59084DA

CAGE, valve

2шт.

14

74649R1

PLATE, valve

1шт.

15

132696

SCREW, valve plate, no. 6 x 3/8 slt-rd-hd mach

2шт.

16

DIAPHRAGM, Order pump 269543R92

1шт.

17

74654R1

RETAINER, diaphragm spring

1шт.

18

74657R1

SPRING, diaphragm

1шт.

19

74655R1

SPACER, oil seal

1шт.

20

74656R1

OIL SEAL

1шт.

21

BODY, fuel pump, Order pump, 269543R92

1шт.

22

LEVER, fuel pump, Order pump, 269543R92

1шт.

23

74651R1

SPRING, rocker arm

1шт.

24

74653R1

LINK, rocker arm

1шт.

25

74662R91

ROCKER ARM ASSY

1шт.

26

PIN, lever, Order pump, 269543R92

1шт.

27

36351D

WASHER, rocker arm pin

1шт.

28

74652R1

PIN, rocker arm

1шт.

29

128868H

GASKET

fuel pump mounting

1шт.

30

269543R92

PUMP

W/GASKET ASSY, fuel

1шт.

SCREW, 5/16 x 7/8 cap

2шт.

WASHER, 5/16 lock

2шт.

31

359765R1

CLIP, fuel line

1шт.

32

52728D

CUSHION, fuel line

1шт.

33

443998

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

1/8 pipe, pump end

1шт.

34

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

90 deg pump end

1шт.

35

19985R1

TUBE NUT,1/2"-20

NUT, coupling

2шт.

36

380918R1

PIPE, fuel, Serial Range: pump-carburetor

1шт.

37

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, pipe, carburetor end

1шт.

276210R91

KIT, diaphragm repair

1шт.

276211R91

KIT, fuel pump overhaul

1шт.

Выбрано товаров: 43
