Запчасти Case IH 420 (236) - CARBURETOR, ZENITH MODEL 62-A-J-10 UP DRAFT (10) - ENGINE

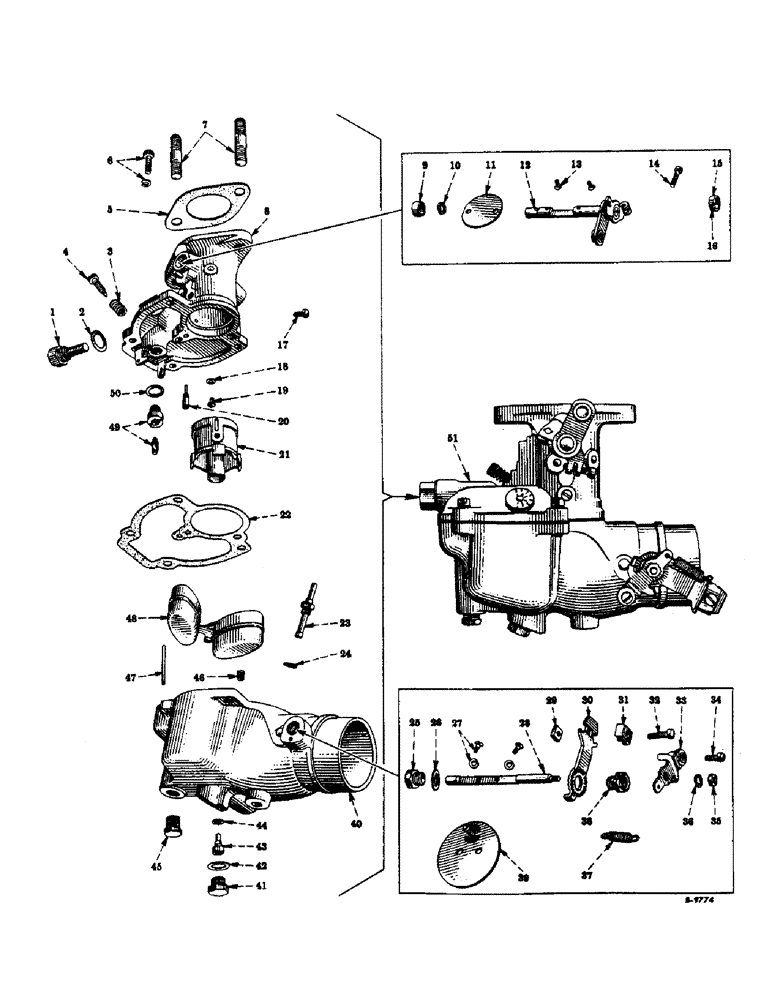

Схема запчастей Case IH 420 - (236) - CARBURETOR, ZENITH MODEL 62-A-J-10 UP DRAFT (10) - ENGINE
40
2
20
44
17
6
27
32
42
3
19
49
45
9
18
36
38
25
35
34
31
5
46
22
28
39
33
11
16
24
1
37
43
50
13
41
12
7
10
47
21
30
23
48
29
4
51
14
8
15
26

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

FITTING W/SCREW ASSY, fuel inlet

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER, fuel filter plug fibre

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING, idle adjusting needle

1шт.

4

NSS

NOT SOLD SEPARAT

NEEDLE, idle adjusting

1шт.

5

66453H

GASKET

carburetor

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW W/LOCK WASHER, Serial Range: bowl-body

4шт.

7

277016R1

STUD, carburetor

2шт.

8

NSS

NOT SOLD SEPARAT

BOSY ASSY, throttle

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG, throttle shaft hole

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER, throttle shaft thrust

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE, throttle

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT W/LEVER AND SCREW, 255544 assy, throttle

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW, throttle plate

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW, throttle lever stop

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER, throttle shaft packing

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER, throttle shaft packing

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW W/LOCK WASHER ASSY, ventri

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER, fibre

1шт.

19

NSS

NOT SOLD SEPARAT

ECONOMIZER, jet

1шт.

20

NSS

NOT SOLD SEPARAT

JET, idle

1шт.

21

NSS

NOT SOLD SEPARAT

VENTRI, Not serviced separately

1шт.

22

NSS

NOT SOLD SEPARAT

GASKET, bowl

1шт.

23

NSS

NOT SOLD SEPARAT

NOZZLE, discharge

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER, discharge jet fibre

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG, choke shaft hole

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER, choke shaft hole plug fibre

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW W/LOCK WASHER ASSY, choke

2шт.

28

NSS

NOT SOLD SEPARAT

SHAFT, choke

1шт.

29

NSS

NOT SOLD SEPARAT

NUT, choke bracket clamp screw

1шт.

30

NSS

NOT SOLD SEPARAT

BRACKET, choke

1шт.

31

NSS

NOT SOLD SEPARAT

CLAMP, choke bracket tube

1шт.

32

NSS

NOT SOLD SEPARAT

SCREW, choke bracket tube clamping

1шт.

33

NSS

NOT SOLD SEPARAT

LEVER, choke

1шт.

34

NSS

NOT SOLD SEPARAT

SWIVEL, screw choke lever

1шт.

35

NSS

NOT SOLD SEPARAT

NUT, choke shaft

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER, choke shaft nut, no. 8 internal tooth-lock

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING, choke lever

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW ASSY, choke bracket

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE, choke

1шт.

40

NSS

NOT SOLD SEPARAT

BOWL ASSY, fuel

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER, main jet fibre

1шт.

42

NSS

NOT SOLD SEPARAT

JET, main

1шт.

43

NSS

NOT SOLD SEPARAT

WASHER, main jet passage plug fibre

1шт.

44

NSS

NOT SOLD SEPARAT

PLUG, main jet passage

1шт.

45

NSS

NOT SOLD SEPARAT

PLUG, fuel bowl drain

1шт.

46

NSS

NOT SOLD SEPARAT

JET, bleed well

1шт.

47

NSS

NOT SOLD SEPARAT

AXLE, float

1шт.

48

NSS

NOT SOLD SEPARAT

FLOAT

1шт.

49

NSS

NOT SOLD SEPARAT

VALVE W/SEAT, fuel

1шт.

50

NSS

NOT SOLD SEPARAT

WASHER, fuel valve seal fibre

1шт.

51

274648R91

CARBURETOR ASSY, less/two studs, 277016R1

1шт.

NUT, 3/8NF

2шт.

WASHER, 3/8 lock

2шт.

353845R91

GASKET KIT

SET, carburetor, Includes ref nos. 2, 18, 24, 26, 41, 43 and 50

1шт.

276246R91

KIT, carburetor overhaul, Includes ref nos. 2, 4, 6, 13, 15, 16, 18, 19, 20, 23, 24, 26, 27, 41, 43, 46, 47, 49 and 50

1шт.

Выбрано товаров: 55
