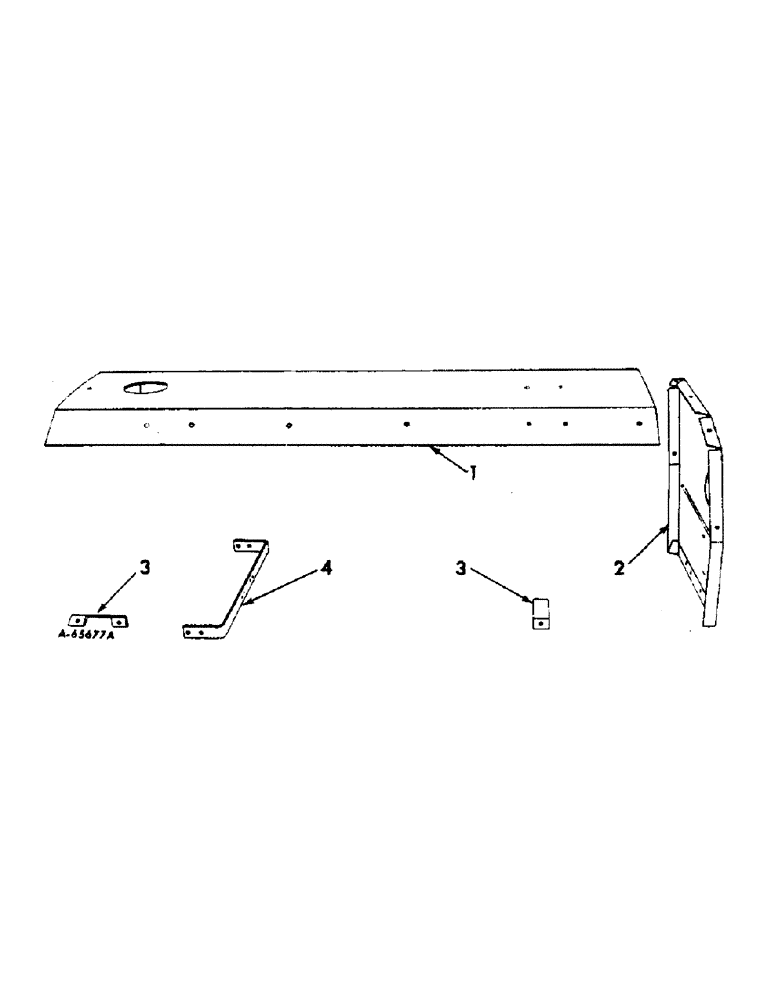

Запчасти Case IH 420 (386) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

666102R1

HOOD, engine

1шт.

1

674448R1

HOOD, engine, Used with increased capacity cooling

1шт.

BOLT, 5/16 x 1/2 mach

2шт.

BOLT, 5/16 x 3/4 mach

5шт.

NUT, 5/16

3шт.

WASHER, 5/16 lock

7шт.

WASHER, 11/32 x 3/4 x 16 ga

4шт.

2

666101R1

SUPPORT, hood sheet front

1шт.

BOLT, 1/2 x 3/4 mach

2шт.

WASHER, 1/2 lock

2шт.

WASHER, 17/32 x 1 x 16 ga

2шт.

3

666077R1

BRACE, exhaust shield

3шт.

BOLT, 5/16 x 3/4 mach

6шт.

NUT, 5/16 hex.

6шт.

WASHER, 5/16 lock

6шт.

4

666068R1

BRACE, radiator

1шт.

4

674447R1

BRACE, radiator, Used with increased capacity cooling

1шт.

BOLT, 3/8 x 3/4 mach

2шт.

BOLT, 7/16 x 3/4 mach

2шт.

NUT, 3/8 hex.

2шт.

WASHER, 3/8 lock

2шт.

WASHER, 7/16 lock

2шт.
