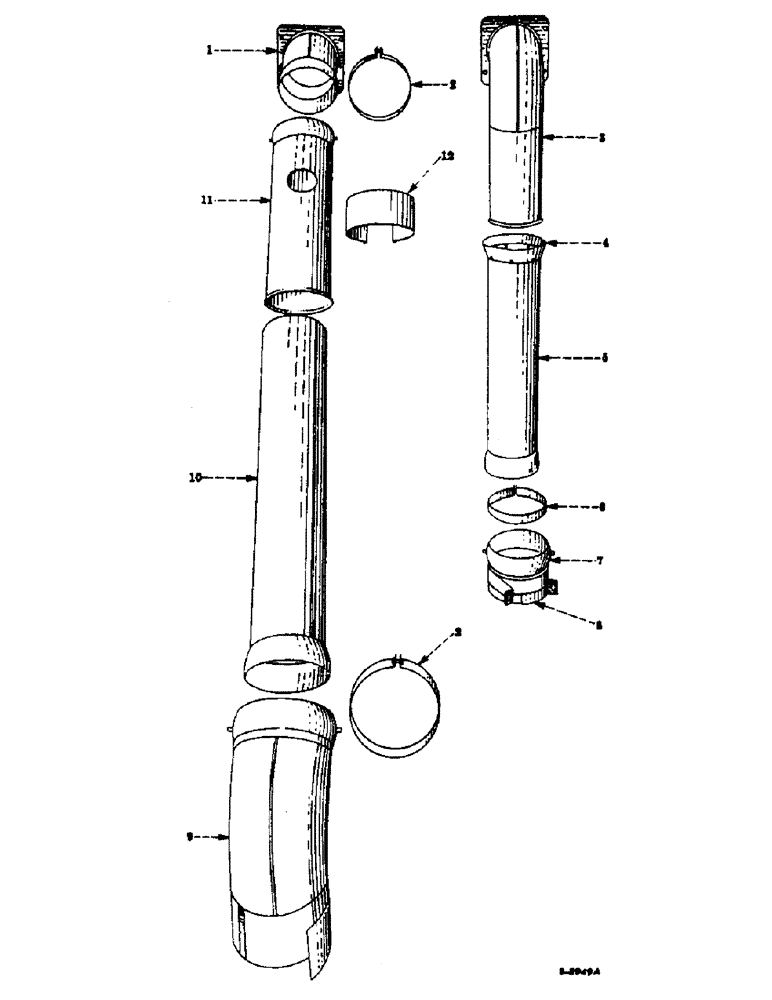

Запчасти Case IH 420 (160) - CONVEYOR PIPES (74) - CLEANING

1

660967R91

ELBOW, upper front conveyor pipe, 416-501H thru 1550, 422-501H thru 3076

2шт.

1

202427C1

ELBOW ASSY, conveyor pipe front, 416-1551 and up, 422-3077 and up

2шт.

BOLT W/NUT, 3/8 x 3/4 mach

16шт.

WASHER, 3/8 lock

16шт.

2

11518R

RETAINER, conveyor pipe, 416-501H thru 1550, 422-501H thru 3076

4шт.

BOLT W/NUT, 5/16 x 1 mach

4шт.

WASHER, 5/16 lock

4шт.

3

660977R91

PIPE, upper rear conveyor, 416-501H thru 1550, 422-501H thru 3076

2шт.

BOLT W/NUT, 5/16 x 3/4 mach

14шт.

WASHER, 5/16 lock

14шт.

3

202430C1

ELBOW ASSY, conveyor pipe rear, 416-1551 and up, 422-501H and up

2шт.

4

660984R1

STRIP, lower rear conveyor pipe sealing

2шт.

113355

RIVET

3/16 x 5/16 ov-hd

18шт.

5

661157R91

PIPE, lower rear conveyor, 416 picker only

1шт.

5

660981R91

PIPE, lower rear conveyor, 422 picker only

2шт.

6

660986R1

CLAMP

RETAINER, rear conveyor pipe

2шт.

BOLT W/NUT, 5/16 x 1 mach

2шт.

WASHER, 5/16 lock

2шт.

7

660987R91

PIPE, left rear conveyor

1шт.

7

660988R91

PIPE, right rear conveyor

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

4шт.

WASHER, 3/8 lock

4шт.

8

660991R1

STRIP, lower rear conveyor pipe sealing

2шт.

113355

RIVET

3/16 x 5/16 ov-hd

14шт.

9

660973R91

ELBOW, outer left conveyor pipe

1шт.

9

660974R91

ELBOW, outer right conveyor pipe, 416-501H thru 1550, 422-501H thru 3076

1шт.

9

202428C1

ELBOW ASSY, conveyor pipe outside left

1шт.

9

202429C1

ELBOW ASSY, conveyor pipe outside right, 416-1551 and up, 422-3077 and up

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

3шт.

WASHER, 3/8 lock

3шт.

WASHER, 13/32 x 3/4 x 16 ga

3шт.

10

661150R91

PIPE, lower front conveyor, 416-501H thru 1550, 422-501H thru 3076

2шт.

10

667441R92

EXTENSION

ASSY, conveyor lower, 416-1551 and up, 422-3077 and up

2шт.

11

660969R91

PIPE, upper front conveyor, 416-501H thru 1550, 422-501H thru 3076

2шт.

11

666806R21

SPARE PART

PIPE ASSY, conveyor front upper, 416-1551 and up, 422-3077 and up

2шт.

12

664706R91

COVER, conveyor pipe, 416-501H thru 1550, 422-501H thru 3076

2шт.

BOLT W/NUT, 5/16 x 1 mach

4шт.

WASHER, 5/16 lock

4шт.

202431C1

ANGLE, transmission

1шт.
