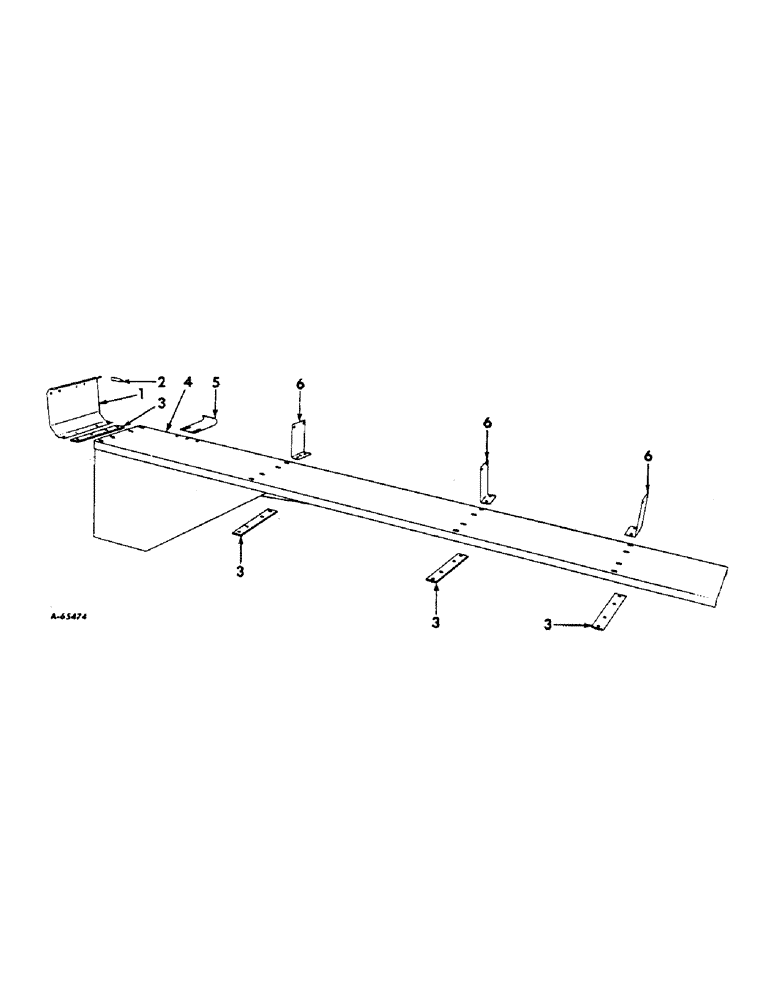

Запчасти Case IH 420 (135) - PLANT GUIDES (60) - PRODUCT FEEDING

1

666202R1

THROAT, plant tunnel

2шт.

BOLT W/NUT, 5/16 x 3/4 crg

8шт.

BOLT W/NUT, 3/8 x 3-1/2 crg

4шт.

WASHER, 5/16 lock

8шт.

WASHER, 3/8 lock

4шт.

2

R1166M

SPACER, plant tunnel

4шт.

3

661449R1

STRAP, plant tunnel

8шт.

4

666195R91

TUNNEL, left plant, welded assy

1шт.

4

666196R91

TUNNEL, right plant, welded assy

1шт.

BOLT W/NUT, 5/16 x 3/4 crg

6шт.

BOLT W/NUT, 5/16 x 1 crg

6шт.

WASHER, 5/16 lock

12шт.

WASHER, 11/32 x 3/4 x 16 ga

6шт.

5

665971R1

GUIDE, main drive belt lower

2шт.

BOLT W/NUT,3/8 x 3/4 crg

4шт.

WASHER, 3/8 lock

4шт.

WASHER, 13/32 x 3/4 x 16 ga

4шт.

6

666201R1

SUPPORT, plant tunnel

6шт.

BOLT W/NUT, 3/8 x 1 mach

12шт.

WASHER, 3/8 lock

12шт.
