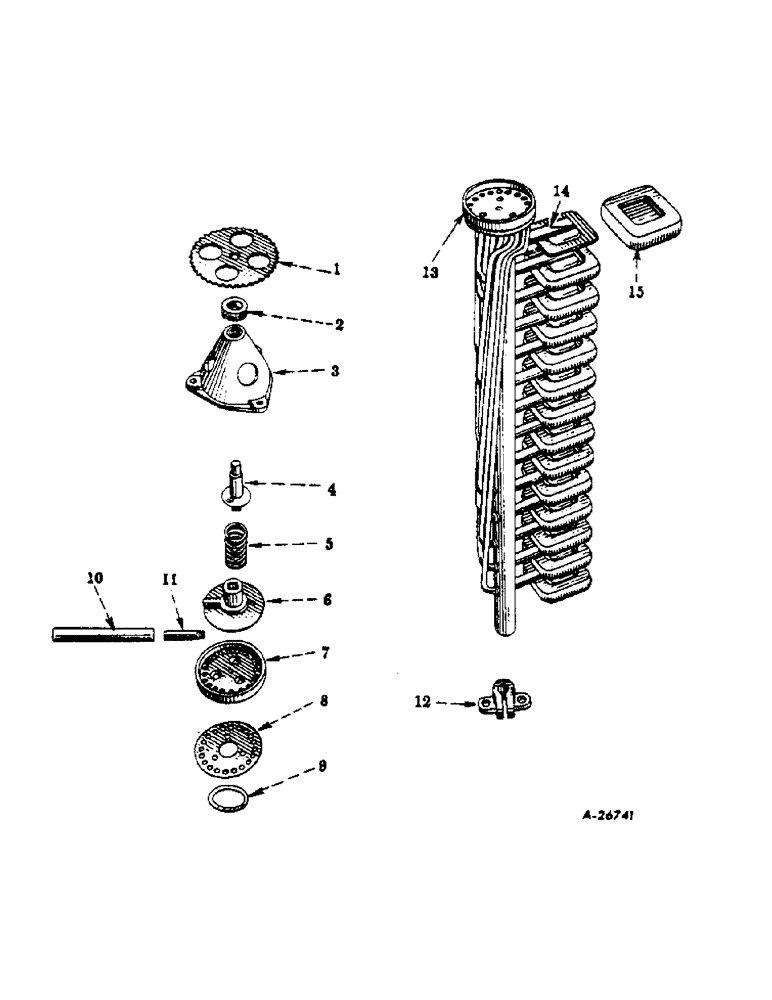

Запчасти Case IH 420 (123) - SPINDLE MOISTENER, 416, 501 THROUGH 1665, 422, 501 THROUGH 3136 (60) - PRODUCT FEEDING

1

10117R

SPROCKET ASSY.

SPROCKET, water distributor

2шт.

2

11609R

RING

FELT, distributor drive shaft

2шт.

3

79RA

NO LONGER SERVICED

HOUSING, water distributor

2шт.

BOLT W/NUT, 5/16 x 1 mach

6шт.

WASHER, 5/16 lock

6шт.

4

11817R

SHAFT

water distributor

2шт.

NUT, 1/2-20 hex

2шт.

WASHER, 1/2 lock

2шт.

5

11816R

SPRING

water distributor

2шт.

6

11879R

SPACER

DISTRIBUTOR ASSY, water

2шт.

47393D

PLUG, water distributor, Not illustrated

2шт.

7

9RA

CUP, water distributor

2шт.

NLS

NO LONGER SERVICED

1/2NF no. 10 slt-fil-hd

6шт.

WASHER, 3/16 lock

6шт.

8

10112R

GASKET

water distributor cup

2шт.

9

11103R

GASKET, distributor cup auxiliary

2шт.

10

NOT USED

1шт.

11

655597R1

NIPPLE, LUBE

NIPPLE, 1/8 x 2 galv. pipe

2шт.

12

669834R2

CLAMP

spindle moistener adjusting

2шт.

BOLT, 1/2 x 1-1/2 mach

2шт.

BOLT W/NUT, 5/16 x 3/4 mach

4шт.

WASHER, 5/16 lock

4шт.

13

11812RB

TUBE ASSY, spindle moistener, less pads and cups, 2 for units C and D

1шт.

13

655907R92

TUBE ASSY, spindle moistener, less pads and cups, 2 for units A and B

1шт.

14

10086RX

BRACKET, spindle moistener support, 28 for units A and B, 40 for units C and D

1шт.

15

11815RA

PAD

spindle moistener, 28 for units A and B, 40 for units C and D

1шт.

10091R

TUBE, spindle moistener no. 1, shortest tube

2шт.

10092R

TUBE, spindle moistener no. 2

2шт.

10093R

TUBE, spindle moistener no. 3

2шт.

10094R

TUBE, spindle moistener no. 4

2шт.

10095RA

TUBE, spindle moistener no. 5

2шт.

10096RA

TUBE, spindle moistener no. 6 1" Diameter, 10" Length

2шт.

10097RA

TUBE, spindle moistener no. 7

2шт.

10098RA

TUBE, spindle moistener no. 8

2шт.

10099RA

TUBE, spindle moistener no. 9

2шт.

10100RA

TUBE, spindle moistener no. 10

2шт.

10101RA

TUBE, spindle moistener no. 11

2шт.

10102RA

TUBE, spindle moistener no. 12

2шт.

10103RA

TUBE, spindle moistener no. 13

2шт.

10104RA

TUBE, spindle moistener no. 14 1" Diameter, 23" Length

2шт.

10105RA

TUBE, spindle moistener no. 15, 2 for units C and D

1шт.

10106RA

TUBE, spindle moistener no. 16, 2 for units C and D

1шт.

10107RA

TUBE, spindle moistener no. 17, 2 for units C and D

1шт.

10108RA

TUBE, spindle moistener no. 18, 2 for units C and D

1шт.

10109RA

TUBE, spindle moistener no. 19, 2 for units C and D

1шт.

10110RA

TUBE, spindle moistener no. 20, longest tube, 2 for units C and D

1шт.
