Запчасти Case IH 420 (138) - FUEL TANK SUPPORTS AND LINES, INCREASED CAPACITY COOLING (10) - ENGINE

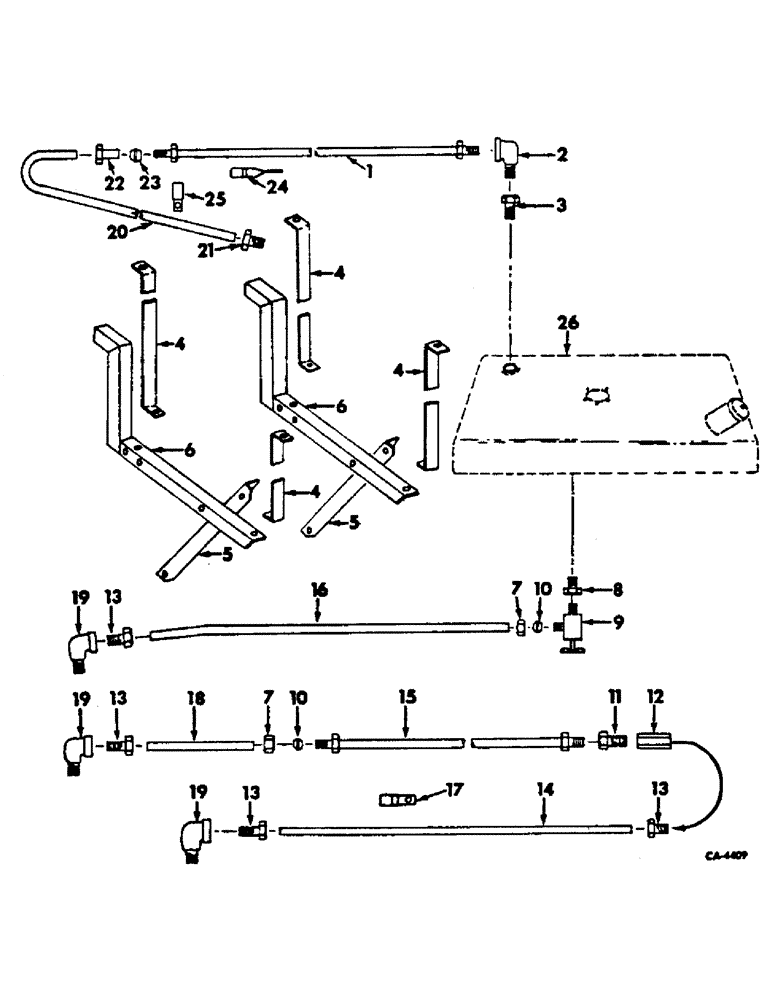

Схема запчастей Case IH 420 - (138) - FUEL TANK SUPPORTS AND LINES, INCREASED CAPACITY COOLING (10) - ENGINE
14
17
10
23
4
6
12
7
8
18
9
3
5
5
4
4
13
13
6
10
15
19
13
13
1
25
16
26
24
7
21
11
2
20
4
19
19
22

Артикул

Название

Примечание

Количество

1

560999R91

HOSE

LINE, fuel flexible

1шт.

2

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1/8-27 90 deg auto pipe street

1шт.

3

444333

BUSHING

3/8 to 1/8 auto reducing pipe

1шт.

4

674470R1

STRAP, fuel tank support

4шт.

BOLT, 5/16 x 3/4 hex-hd mach

4шт.

NUT, 5/16 hex

4шт.

5

674457R1

ANGLE, fuel tank support

2шт.

BOLT, 7/16 x 1 C-Z hex-hd mach

2шт.

BOLT, 7/16 x 1-1/4 C-Z hex-hd mach

2шт.

NUT, 7/16 C-Z hex

4шт.

WASHER, 7/16 C-Z med lock

4шт.

6

674452R1

SUPPORT ASSY, fuel tank

2шт.

BOLT, 3/8 x 1 C-Z hex-hd

2шт.

NUT, 3/8-16 C-Z hex

2шт.

WASHER, 3/8 C-Z med lock

4шт.

7

NLS

NO LONGER SERVICED

9/16-24 ball sleeve tube

2шт.

8

119931

3/8 x 1/4 reducing

1шт.

9

670723R91

COCK, fuel shut-off

1шт.

10

222-654

FERRULE,3/8" Tube, Comp

3/8 ball

2шт.

11

444014

ADAPTER,3/8"-18 Fem NPTF x 1/4"-18 NPTF Male

3/8 x 1/4 pipe

1шт.

12

56597D

CONNECTOR, 1/4 NPTF fem tube fitting Fem, 9/16"-20

1шт.

13

19986R1

TUBE NUT,9/16"-20

NUT, 9/16-20 hi-duty tube fitting

4шт.

14

674462R1

LINE, fuel supply 0.375" OD, 19" Length

1шт.

15

666117R1

LINE, fuel flexible

1шт.

16

674459R1

LINE, fuel, Serial Range: supply-trap

1шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, fuel line

1шт.

18

674461R1

LINE, fuel supply short

1шт.

19

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

1/4-18 90 deg sleeve tube

3шт.

20

674463R1

LINE, fuel return

1шт.

21

19985R1

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

22

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 1/2-20 ball sleeve tube

1шт.

23

114631

SLEEVE,Ball Type, 5/16" Tube

5/16 ball

1шт.

24

363501R1

CLIP, return line twisted

1шт.

25

100770H

CLIP

return line straight

1шт.

26

TANK, fuel, See fuel line and tank

1шт.

Выбрано товаров: 35
