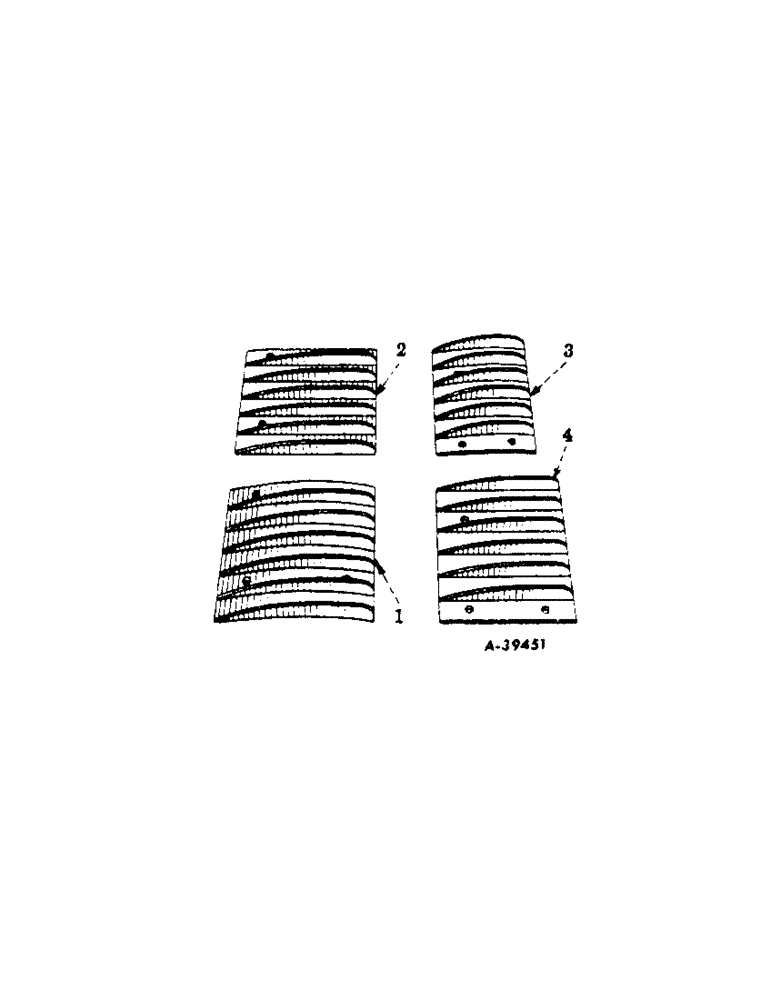

Запчасти Case IH 420 (027) - ALUMINUM PLANT COMPRESSOR SHEET PLATE ATTACHMENT (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
ALUMINUM PLANT COMPRESSOR SHEET PLATE ATTACHMENT (When ordered) (659174R91) (Units A and B) (414CH501E thru 812E)
1шт.
ALUMINUM PLANT COMPRESSOR SHEET PLATE ATTACHMENT (When ordered) (659173R91) (Units C and D) (420CH501E thru 1371E)
1шт.
1
659175R1
PLATE, front plant compressor sheet (2 for units A and B, 3 for units C and D)
1шт.
178743
SCREW,Sl Flat Hd, 1/4" - 28 x 5/8"
1/4 NF X 5/8" SLT-FL-HD SCREW (8 for units A and B, 12 for units C and D)
1шт.
142246
CHAIN
1/4 NF TYPE F NUT (8 for units A and B, 12 for units C and D)
1шт.
1/4" LOCK WASHER (8 for units A and B, 12 for units C and D)
1шт.
2
659178R1
PLATE, rear plant compressor sheet extension (2 for units A and B, 3 for units C and D)
1шт.
178743
SCREW,Sl Flat Hd, 1/4" - 28 x 5/8"
1/4 NF X 5/8" SLT-FL-HD SCREW (8 for units A and B, 12 for units C and D)
1шт.
142246
CHAIN
1/4 NF TYPE F NUT (8 for units A and B, 12 for units C and D)
1шт.
1/4" LOCK WASHER (8 for units A and B, 12 for units C and D)
1шт.
3
659177R1
PLATE, front plant compressor sheet extension (2 for units A and B, 3 for units C and D)
1шт.
178743
SCREW,Sl Flat Hd, 1/4" - 28 x 5/8"
1/4 NF X 5/8" SLT-FL-HD SCREW (8 for units A and B, 12 for units C and D)
1шт.
142246
CHAIN
1/4 NF TYPE F NUT (8 for units A and B, 12 for units C and D)
1шт.
1/4" LOCK WASHER (8 for units A and B, 12 for units C and D)
1шт.
4
659176R1
PLATE, front plant compressor sheet extension (2 for units A and B, 3 for units C and D)
1шт.
178743
SCREW,Sl Flat Hd, 1/4" - 28 x 5/8"
1/4 NF X 5/8" SLT-FL-HD SCREW (8 for units A and B, 12 for units C and D)
1шт.
142246
CHAIN
1/4" LOCK WASHER (8 for units A and B, 12 for units C and D)
1шт.
Выбрано товаров: 17
