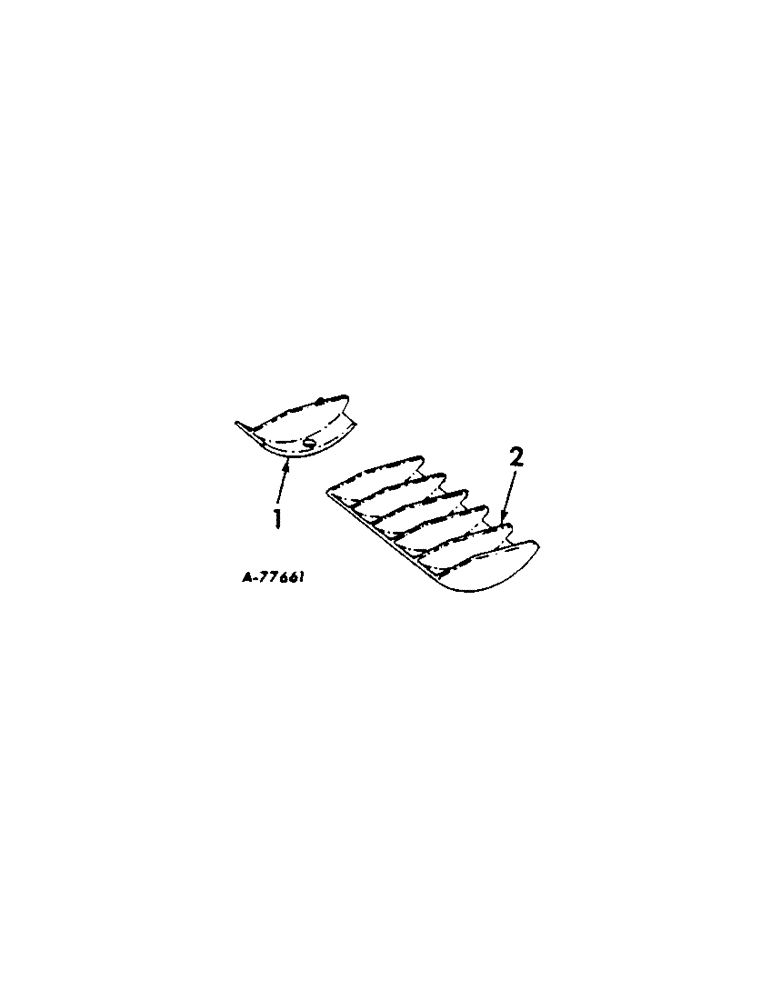

Запчасти Case IH 420 (027[2]) - ALUMINUM DEEP RIB COMPRESSOR PLATES, 414CH813F THROUGH CH1568G, 420CH1372F THROUGH CH2820G (60) - PRODUCT FEEDING

1

669577R1

GUIDE

PLATE, front compressor sheet rib short

2шт.

1

669578R1

PLATE, rear compressor sheet rib short

2шт.

1/4 NF NUT

8шт.

1/4 NF X 5/8" SLT-F-HD MACH SCREW

8шт.

1/4" LOCK WASHER

8шт.

2

669576R1

LARGE PLATE

PLATE, front compressor sheet rib long (4 for unit A and B) (6 for unit C and D)

1шт.

2

669579R1

PLATE, rear compressor sheet rib long (4 for unit A and B) (6 for unit C and D)

1шт.

1/4 NF NUT (16 for unit A and B) (24 for unit C and D)

1шт.

1/4 NF X 5/8" SLT-F-HD MACH SCREW (16 for unit A and B) (24 for unit A and B) (24 for unit C and D)

1шт.
