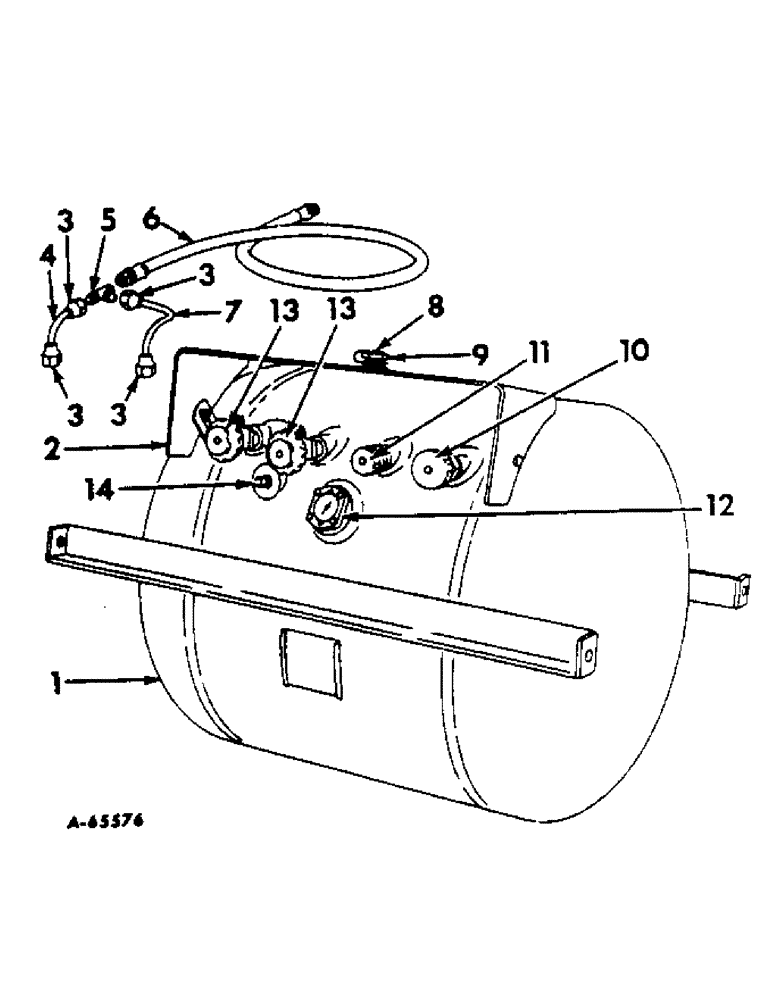

Запчасти Case IH 420 (137) - FUEL TANK AND VALVES, LIQUIFIED PETROLEUM GAS (10) - ENGINE

1

666121R91

TANK W/VALVES AND GAUGES, fuel

1шт.

BOLT W/NUT, 1/2 x 5-1/2 mach

2шт.

WASHER, 1/2 lock

2шт.

NOT SERVICED SEPARATELY

1шт.

3

357078R1

NUT, 3/8 fuel line flared tube

4шт.

4

666126R11

LINE, flexible fuel

1шт.

5

118807

BOLT

TEE, 3/8 flared

1шт.

6

661776R91

LINE, flexible fuel

1шт.

7

666127R11

LINE W/NUTS, vapor fuel

1шт.

8

363692R1

CAP, rain

1шт.

9

230826R91

VALVE W/RAIN CAP, relief

1шт.

10

363687R91

VALVE W/CAP, filler

1шт.

11

109567R91

VALVE W/EXCESS FLOW CHECK AND CHAIN, vapor return

1шт.

12

666683R91

GAUGE, fuel float

1шт.

13

225072R91

VALVE W/HAND WHEEL AND EXCESS FLOW CHECK, service

2шт.

14

357068R91

GAUGE W/DIAL, fixed liquid level

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 automotive sq-hd pipe drain, in tank

1шт.

144355

ELBOW, 3/8 90 deg extension pipe thread

1шт.

661779R1

CLAMP, fuel line

1шт.

661780R1

FELT, fuel line clamp

1шт.

230825R1

ADAPTER, LP gas tank pipe away

1шт.
