Запчасти Case IH 420 (136) - FUEL TANK AND LINES, GASOLINE AND DIESEL (10) - ENGINE

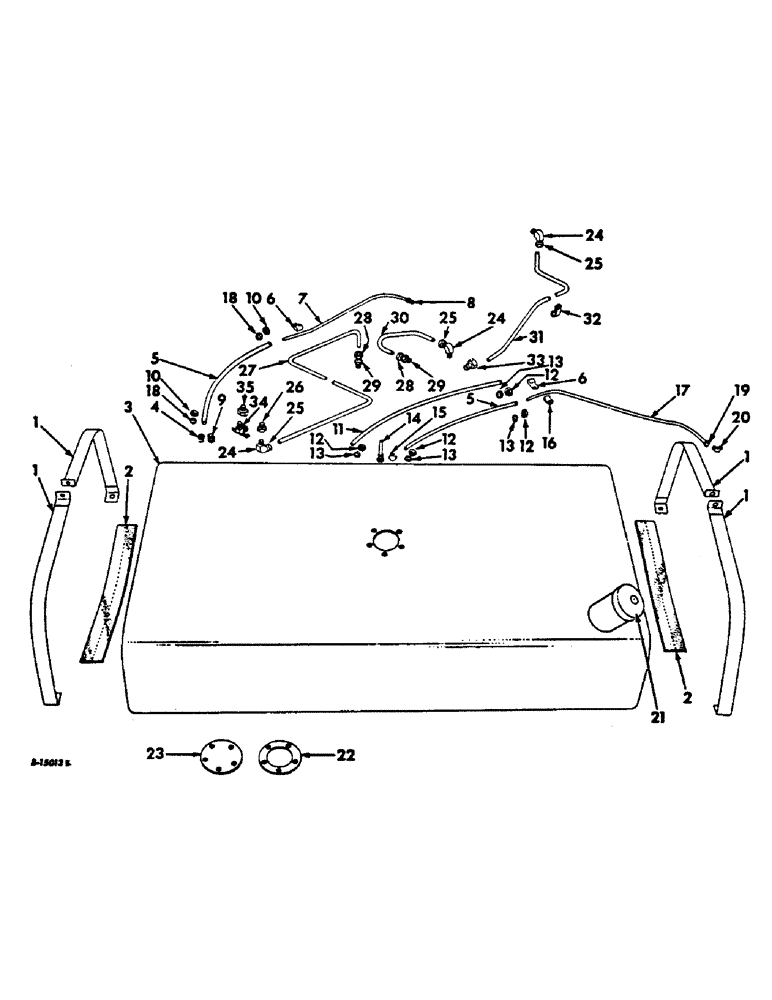

Схема запчастей Case IH 420 - (136) - FUEL TANK AND LINES, GASOLINE AND DIESEL (10) - ENGINE
8
33
25
6
1
34
24
13
25
23
18
1
14
2
17
28
29
1
12
13
16
3
6
11
27
12
5
12
10
26
25
13
1
7
24
35
10
20
24
22
21
29
9
15
12
32
5
4
18
31
13
28
19
2
30

Артикул

Название

Примечание

Количество

1

666114R91

STRAP, fuel tank, welded assy

4шт.

BOLT, 5/16 x 3/4 mach

4шт.

BOLT W/NUT, 5/16 x 1-1/4 mach

2шт.

WASHER, 5/16 lock

6шт.

2

LINING, fuel tank support, Use 20 inches of 1-1/2 webbing from

1шт.

roll marked, 990541R1

2шт.

3

666113R91

TANK, fuel

1шт.

4

666663R11

PIPE, fuel return, diesel only

1шт.

5

560999R91

HOSE

LINE, fuel flexible

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, juel line, 1 for gasoline, 2 for diesel

1шт.

BOLT W/NUT, 5/16 x 1/2 mach

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

1шт.

WASHER, 5/16 lock

2шт.

7

203088C1

LINE, fuel return, diesel only

1шт.

8

19985R1

TUBE NUT,1/2"-20

NUT, 5/16 tube, diesel only

1шт.

9

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 automotive sq-hd pipe, Used on gasoline only

1шт.

10

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 1/2 ball tube

2шт.

11

666117R91

LINE, fuel flexible, diesel only

1шт.

12

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT, 9/16 ball tube

2шт.

13

222-654

FERRULE,3/8" Tube, Comp

3/8 ball

2шт.

14

666129R91

STRAINER ASSY.

STRAINER, fuel tank, gasoline only

1шт.

15

86534426

ELBOW

1/8 x 90 deg street, gasoline only

1шт.

16

27385D

CLIP, fuel line, gasoline only

1шт.

52728D

FELT, fuel line clip, gasoline only

1шт.

17

666120R1

LINE, fuel, gasoline only

1шт.

18

114631

SLEEVE,Ball Type, 5/16" Tube

5/16 ball

2шт.

19

19985R1

TUBE NUT,1/2"-20

NUT, 5/16 ball sleeve tube, gasoline only

1шт.

20

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

BODY, 5/16 elbow, at fuel pump, gasoline only

1шт.

21

23995DC

FILLER CAP

CAP, fuel tank

1шт.

22

369154R1

GASKET

sending unit

1шт.

23

369155R1

COVER, sending unit opening

1шт.

SCREW, 10-24 x 1/2 hex-hd

5шт.

24

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

diesel only

3шт.

25

19986R1

TUBE NUT,9/16"-20

NUE, 9/16-20 hi-duty tube fitting, diesel only

3шт.

26

119931

3/8 to 1/4 reducing, diesel only, 416-501H thru 779H, 422-501H thru 1162H

1шт.

27

667523R1

TUBE, fuel tank to water trap, diesel only

1шт.

28

19986R1

TUBE NUT,9/16"-20

NUT, 9/16-20 hi-duty tube fitting, diesel only

2шт.

29

38026DM

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR, diesel only

2шт.

30

667521R1

TUBE, wter trap to fuel pump, diesel only

1шт.

31

667522R1

TUBE, priming pump to fuel filter, diesel only

1шт.

32

27386D

CLIP, diesel only

1шт.

33

444014

ADAPTER,3/8"-18 Fem NPTF x 1/4"-18 NPTF Male

3/8 to 1/4 reducer, in fuel pump outlet, diesel only

1шт.

34

670723R91

COCK, fuel shut off, diesel only

1шт.

35

NLS

NO LONGER SERVICED

3/8 to 1/4 reducing, diesel only

1шт.

37167D

ELBOW UNION,90 Degree x 1/8" NPT x 9/16"-20

ELBOW, 3/8 tube, diesel only

1шт.

Выбрано товаров: 45
