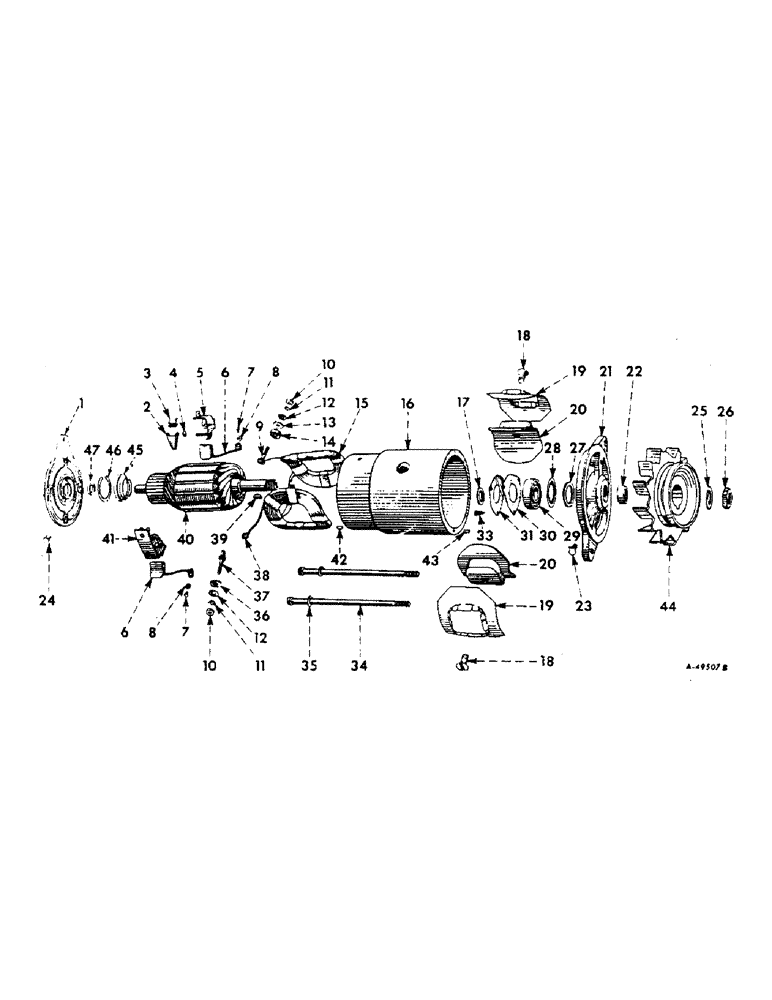

Запчасти Case IH 420 (376) - ELECTRICAL SYSTEM, GENERATOR, 20 AMPERE, DELCO-REMY, 414, CH813F TO CH1119F, 420, CH1372F TO CH2059F (55) - ELECTRICAL SYSTEMS

1100394

GENERATOR ASSY, 369599R92, 12 volt, Order 1100401

1шт.

1100401

GENERATOR ASSY, 12 volt

1шт.

1

1951512

HOUSING

FRAME ASSY, commutator end, Composed of

1шт.

112005

DOWEL

1шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

113702

OILER

1шт.

1945697

GUARD ASSY.

OIL SEAL

1шт.

1947337

RETAINER

1шт.

1947350

WICK

1шт.

2

1944373

NOZZLE HOLDER

ARM, brush

2шт.

3

1916324

VALVE SPRING

SPRING, brush

2шт.

4

1904368

PIN

brush arm space

2шт.

5

1925378

NOZZLE HOLDER

HOLDER, brush ground

1шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd

1шт.

132979

SCREW, no. 12 x 5/8 cd-pltd slt-rd-hd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd lock

1шт.

6

1932506

BRUSH, COMMUTATOR

BRUSH

2шт.

7

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6 x 1/4 cd-pltd slt-rd-hd mach

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

brush lead attaching screw lock

2шт.

9

1858749

PLUG

STUD,terminal field

1шт.

10

225-14112

NUT,#12-24

no. 12 cd-pltd

4шт.

11

1904661

LOCK WASHER

WASHER, field terminal stud lock

4шт.

12

1881409

WASHER

terminal stud

2шт.

13

1858753

WASHER

terminal stud insulating

1шт.

14

1885090

BUSHING

field terminal insulating

1шт.

15

1923625

COIL ASSY.

COIL ASSY, field

1шт.

NOT SERVICED SEPARATELY

1шт.

17

809945

BUSHING

WASHER, drive end space

1шт.

18

1968396

SCREW

pole shoe

2шт.

19

1914491

INSULATOR, field coil

2шт.

20

1931258

SHOE, pole

2шт.

21

1953882

COVER ASSY

FRAME W/OILER, pin and wick assy, drive end

1шт.

22

1858603

BUSHING

COLLAR, drive end space

1шт.

23

125609

OILER

ASSY, drive end

1шт.

823551

WICK, oiler

1шт.

24

NLS

NO LONGER SERVICED

ASSY, commutator end

1шт.

1947350

WICK

oiler

1шт.

25

1941978

WASHER

drive end shaft nut lock

1шт.

26

1915172

NUT

drive end shaft

1шт.

27

809961

FELT

WASHER, drive end felt

1шт.

28

819104

WASHER

PLATE, drive end felt retainer

1шт.

29

907503

BEARING

BALL BEARING, drive end

1шт.

30

1912008

FELT

GASKET, drive end retainer plate

1шт.

31

1911263

LARGE PLATE

PLATE, drive end retainer

1шт.

32

NOT USED IN THIS APPLICATION

1шт.

33

1914580

SCREW

drive end retainer plate

3шт.

34

1908680

SET OF MAIN BRGS -

BOLT, thru

2шт.

35

120638

LOCK WASHER

WASHER, thru bolt lock

2шт.

36

1921362

BUSHING

armature terminal insulating

1шт.

37

1923284

STUD

terminal armature

1шт.

38

200006

SPARE PART

CLIP, Serial Range: terminal-brush

1шт.

39

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

40

1928952

ARMATURE

1шт.

41

1925379

NOZZLE HOLDER

HOLDER, brush insulated

1шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd

1шт.

132979

SCREW, no. 12 x 5/8 cd-pltd slt-rd-hd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd lock

1шт.

42

112005

PIN, commutator end dowel

1шт.

43

809593

PIN

drive end dowel

1шт.

44

FAN AND PULLEY ASSY, generator, Order fan, 1944437 and pulley, 1949358

1шт.

45

1953202

RETAINER, commutator end oil seal

1шт.

46

1947350

WICK

COMMUTATOR END COIL

1шт.

47

1945697

GUARD ASSY.

OIL SEAL, commutator end

1шт.
