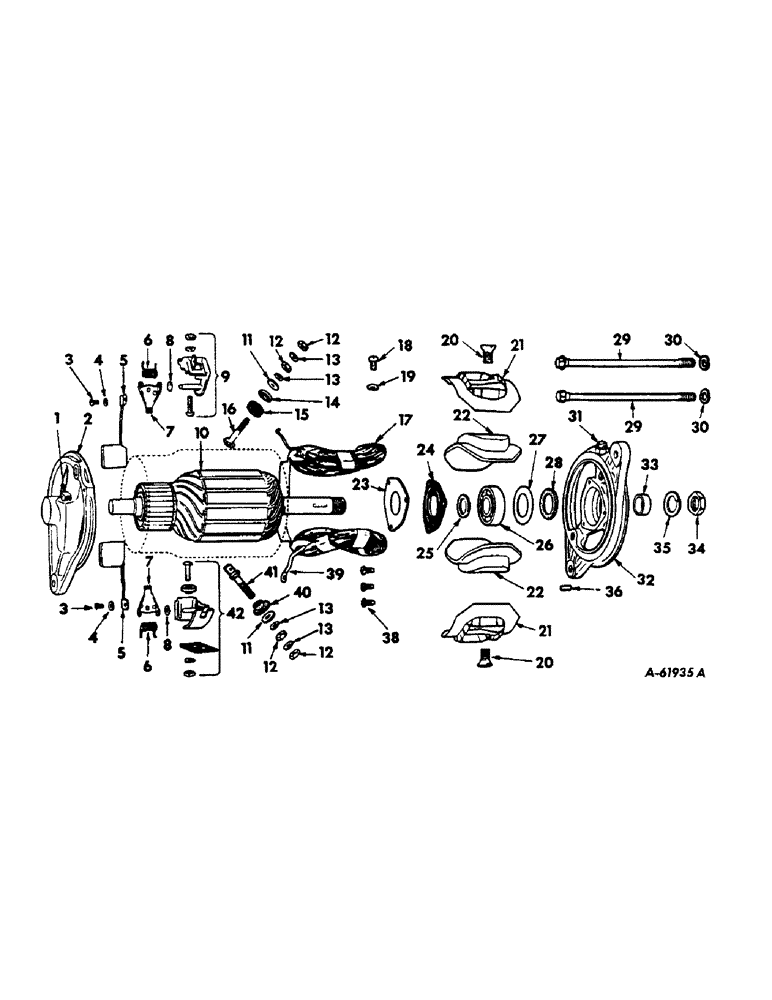

Запчасти Case IH 420 (312) - ELEC. SYS., GENERATOR, 30 AMP, HEAVY DUTY, DELCO-REMY, 414, UP TO S/N CH812E, 420, UP TO S/N CH1371E (55) - ELECTRICAL SYSTEMS

1102188

GENERATOR ASSY, 12 volt, 30 amp, 310663R91, Order 1102329

1шт.

1102329

GENERATOR ASSY, 12 volt

1шт.

1

125609

OILER

commutator end

1шт.

2

1953880

COVER ASSY

FRAME, commutator end

1шт.

3

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

rd-hd no. 6-32NC x 1/4

2шт.

4

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, lock no. 6

2шт.

5

1932506

BRUSH, COMMUTATOR

BRUSH ASSY

2шт.

6

1916324

VALVE SPRING

SPRING, brush

2шт.

7

1944373

NOZZLE HOLDER

ARM, brush

2шт.

8

615002R1

WASHER

brush arm spacer

2шт.

9

1925378

NOZZLE HOLDER

HOLDER, ground brush

1шт.

10

1946931

ARMATURE ASSY

1шт.

11

1881409

WASHER

flat

2шт.

12

225-14112

NUT,#12-24

terminal

4шт.

13

1904661

LOCK WASHER

WASHER, lock

4шт.

14

1858753

WASHER

terminal stud insulator

1шт.

15

1885090

BUSHING

field terminal

1шт.

16

1858749

PLUG

STUD, frame terminal

1шт.

17

1922701

COIL

ASSY, field

1шт.

18

225577

SCREW, field frame

1шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

1968396

SCREW

pole shoe

2шт.

21

1912073

PLATE ASSY.

INSULATOR, field coil

2шт.

22

1931258

SHOE, pole

2шт.

23

1911263

LARGE PLATE

PLATE, drive end bearing retainer

1шт.

24

1912008

FELT

GASKET, bearing retainer

1шт.

25

809945

BUSHING

WASHER, drive end inner space

1шт.

26

907503

BEARING

drive end

1шт.

27

819104

WASHER

PLATE, drive end felt retainer

1шт.

28

809961

FELT

WASHER, drive end felt

1шт.

29

809763

BOLT

thru

2шт.

30

120638

LOCK WASHER

WASHER, lock

2шт.

31

125609

OILER

drive end

1шт.

32

1953882

COVER ASSY

FRAME, drive end

1шт.

33

1858603

BUSHING

COLLAR, drive end space

1шт.

34

1915172

NUT

drive end shaft

1шт.

35

1888439

WASHER

drive end shaft nut lock

1шт.

36

809593

PIN

drive end dowel

1шт.

37

NOT USED IN THIS APPLICATION

1шт.

38

1914580

SCREW

drive end bearing retainer plate

3шт.

39

200006

SPARE PART

CLIP, Serial Range: terminal-brush

2шт.

40

1921362

BUSHING

terminal stud insulator

1шт.

41

1923284

STUD

armature terminal

1шт.

42

1925379

NOZZLE HOLDER

HOLDER, insulated

1шт.

815042

WASHER, commutator end felt

1шт.

904751

BEARING

commutator end

1шт.

809593

PIN

drive end dowel

1шт.

809960

PLATE, commutator end felt retainer

1шт.

1946750

PLUG, commutator end expansion

1шт.

1929959

RING, SNAP

RING, commutator end bearing

1шт.

823551

WICK, commutator end oil

1шт.

823551

WICK, drive end oil

1шт.
