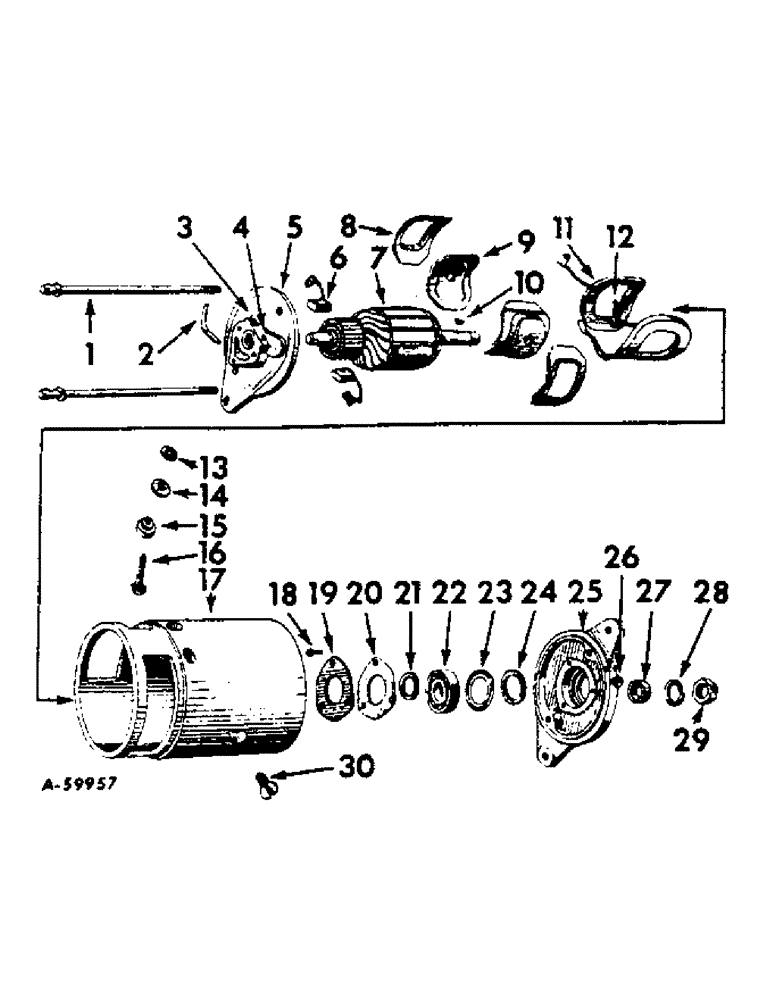

Запчасти Case IH 420 (311) - ELECTRICAL SYSTEM, GENERATOR, 20 AMPERE, DELCO-REMY, 414, UP TO S/N CH812E, 420, UP TO S/N CH1371E (55) - ELECTRICAL SYSTEMS

1100538

GENERATOR ASSY, 12 volt, 305481R91

1шт.

NUT, 5/16NF

2шт.

SCREW, 5/16 x 1-1/8 hex-hd cap

1шт.

SCREW, 5/16NF x 1-1/2 hex-hd cap

1шт.

WASHER, 5/16 lock

2шт.

1

1980680

BOLT, thru

2шт.

2

1947350

WICK

oil, commutator end

1шт.

3

113702

OILER

commutator end

1шт.

4

1911097

PLUG, oil wick, commutator end

1шт.

5

1951512

HOUSING

FRAME W/PIN, 112005, wick, 1947350 and oiler, 113702, commutator end

1шт.

6

1923295

BRUSH

2шт.

7

817807

ARMATURE

1шт.

8

1914491

INSULATOR, field coil

2шт.

9

1931258

SHOE, pole

2шт.

10

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Drive end #5, 1/8" x 5/8", HT

1шт.

11

1923625

COIL ASSY.

COIL SET, field

1шт.

12

1858749

PLUG

STUD, field terminal

1шт.

225-14112

NUT,#12-24

no. 12

2шт.

1904661

LOCK WASHER

WASHER, terminal stud lock

2шт.

13

1881409

WASHER

terminal stud

2шт.

14

1858753

WASHER

terminal stud insulating

1шт.

15

1885090

BUSHING

field terminal

1шт.

16

1923284

STUD

arm terminal

1шт.

17

FRAME, Not furnished separately

1шт.

18

1914580

SCREW

WASHER, terminal stud lock

2шт.

19

1911263

LARGE PLATE

PLATE, ball bearing retainer

1шт.

20

1912008

FELT

WASHER, terminal stud insulating

1шт.

21

809945

BUSHING

WASHER, inside drive end space

1шт.

22

907503

BEARING

ball, drive end

1шт.

23

819104

WASHER

PLATE, felt washer, drive end

1шт.

24

809961

FELT

WASHER, felt, drive end

1шт.

25

1953882

COVER ASSY

FRAME W/OILER, 125609 and plug, 823551, drive end

1шт.

26

125609

OILER

drive end bearing

1шт.

27

1858603

BUSHING

COLLAR, outside drive end space

1шт.

28

1888439

WASHER

drive end shaft nut lock

1шт.

29

1915172

NUT

shaft, drive end

1шт.

30

1968396

SCREW

pole shoe

2шт.

1944373

NOZZLE HOLDER

ARM, brush

2шт.

1921362

BUSHING

arm terminal

1шт.

200006

SPARE PART

CLIP, Serial Range: terminal-brush

1шт.

1925378

NOZZLE HOLDER

PACKAGE, field service ground brush

1шт.

1925379

NOZZLE HOLDER

PACKAGE, field service insulated brush

1шт.

112005

PIN, dowel, commutator end

1шт.

809593

PIN

dowel, drive end

1шт.

823551

PLUG, oil, drive end

1шт.

1927448

RETAINER, felt

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

brush lead attaching

2шт.

1916324

VALVE SPRING

SPRING, brush

2шт.

615002R1

WASHER

brush arm space

2шт.

1927447

WASHER, felt retainer

1шт.

1904377

HALF SHAFT

brush lead attaching screw lock

2шт.
