Запчасти Case IH 420 (300) - ELEC. SYS. WIRING DIAGRAM, ALL 414 & 420 COTTON PICKERS, 416, CH501H - CH1695, 422, CH501H - CH3166 (55) - ELECTRICAL SYSTEMS

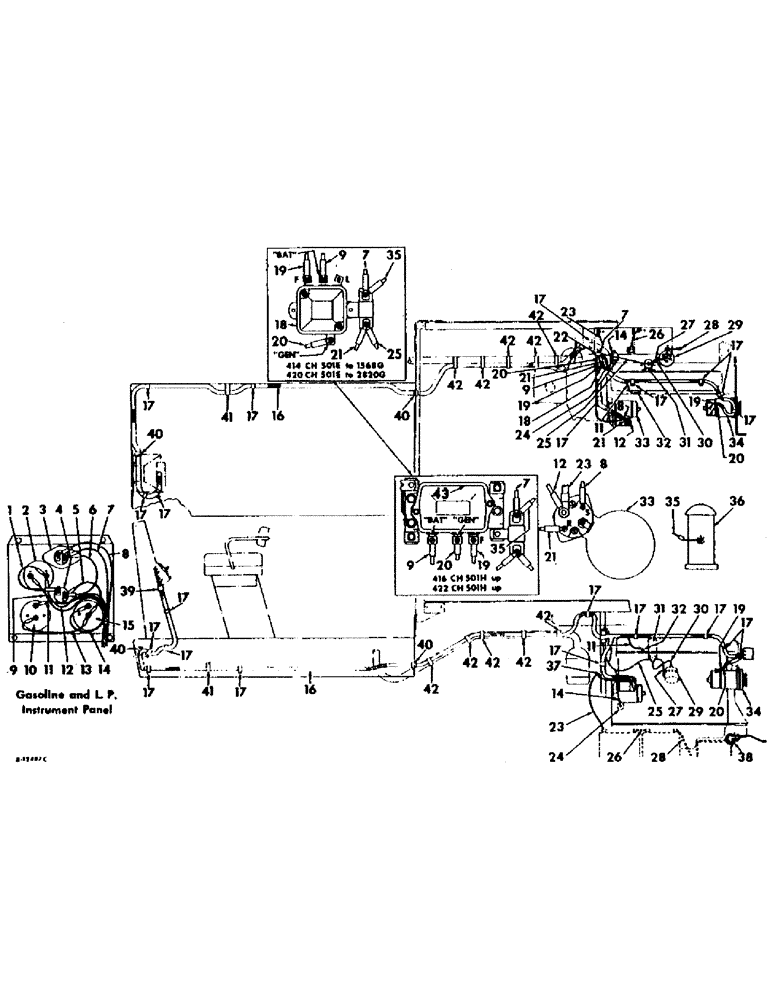

Схема запчастей Case IH 420 - (300) - ELEC. SYS. WIRING DIAGRAM, ALL 414 & 420 COTTON PICKERS, 416, CH501H - CH1695, 422, CH501H - CH3166 (55) - ELECTRICAL SYSTEMS
17
35
34
17
5
21
3
24
24
42
17
33
36
6
40
42
7
11
12
17
14
25
40
30
9
27
31
41
42
17
35
19
17
17
8
23
19
17
42
16
42
22
8
42
17
10
14
11
32
43
34
13
12
38
1
19
7
21
17
42
41
17
20
15
20
40
28
21
27
12
20
30
25
7
32
19
39
7
16
42
2
17
9
9
17
17
19
42
23
4
14
8
18
26
21
28
29
17
17
31
35
17
20
37
17
9
40
20
23
29
42
18
11
25
17
26
33

Артикул

Название

Примечание

Количество

1

662548R91

CABLE, ignition switch to charge indicator

1шт.

2

702284C1

AMMETER

INDICATOR, charge, Replaces 269467R92

1шт.

3

366317R93

SWITCH

SWWITCH, starting push button

1шт.

3

366317R93GV

CONTROL

Value, Control Switch

1шт.

4

62801DC

SWITCH

ignition

1шт.

5

662550R91

CABLE, ignition switch to oil pressure indicator

1шт.

6

662548R91

CABLE, ignition switch to starting push button switch

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE, starting, Serial Range: switch-resistor

1шт.

8

NSS

NOT SOLD SEPARAT

CABLE, starting switch to solenoid switch

1шт.

9

NSS

NOT SOLD SEPARAT

CABLE, charge indicator to voltage regulator, BAT, terminal

1шт.

10

665015R91

GAUGE

INDICATOR, temperature

1шт.

11

NSS

NOT SOLD SEPARAT

CABLE, temperature unit to temperature indicator

1шт.

12

NSS

NOT SOLD SEPARAT

CABLE, charge indicator to solenoid switch

1шт.

13

662550R91

CABLE, temperature indicator to oil pressure indicator

1шт.

14

NSS

NOT SOLD SEPARAT

CABLE, oil pressure indicator to oil pressure unit

1шт.

15

665013R91

GAUGE

INDICATOR, oil pressure

1шт.

16

662537R93

HARNESS, wiring cables, Consists of ref. nos. 7, 8, 9, 11, 12, 19, 20 and 21

1шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness

11шт.

18

1118999

REGULATOR

REGULATOR ASSY, voltage

1шт.

19

NSS

NOT SOLD SEPARAT

CABLE, voltage regulator F terminal to generator F terminal

1шт.

20

NSS

NOT SOLD SEPARAT

CABLE, voltage regulator, GEN terminal to generator A terminal, all 414 and 420 cotton pickers

1шт.

21

NSS

NOT SOLD SEPARAT

CABLE, resistor to solenoid switch

1шт.

22

368573R91

RESISTOR

1шт.

23

374907R91

CABLE

battery positive to solenoid switch

1шт.

24

665014R91

SENDER UNIT

UNIT, oil pressure

1шт.

25

66111R91

CABLE, resistor to ignition coil

1шт.

26

370394R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

27

368267R91

CABLE

ignition coil to distributor primary

1шт.

28

57026R91

CABLE

STRAP, battery, Serial Range: negative-ground

1шт.

29

DISTRIBUTOR ASSY, For components see list of parts under details of distrubutor

1шт.

30

66711R92

CABLE

ignition coil to distributor secondary

1шт.

31

COIL AND CLAMP ASSY, ignition, For components see list of parts under details of spark plugs, coil, cables and distributor

1шт.

32

665016R91

TEMPERATURE SENDER

UNIT, temperature

1шт.

33

MOTOR ASSY, cranking, For components see list of parts under details of cranking motor

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

34

GENERATOR ASSY, For components see list of parts under details of generator

1шт.

35

666109R93

CABLE, resistor to electric fuel pump

1шт.

36

631259R91

PUMP

ASSY, electric fuel, For components see list of parts under details of electric fuel pump

1шт.

37

56277D

CLIP, firewall cable

1шт.

38

200462C1

STRAP, engine ground

1шт.

39

140585

CLIP

cable

1шт.

40

304393R1

CLIP, harness

2шт.

41

362666R1

CLIP

harness

1шт.

42

670705R1

CLIP, harness

5шт.

43

1119260E

REGULATOR ASSY, voltage

1шт.

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing, For temperature sending unit

1шт.

Выбрано товаров: 47
