Запчасти Case IH 420 (255) - ELEC. SYS., SPARK PLUGS, CABLES, IGNITION COIL & BRACKETS, 414, UP TO CH812E, 420, UP TO CH1371E (55) - ELECTRICAL SYSTEMS

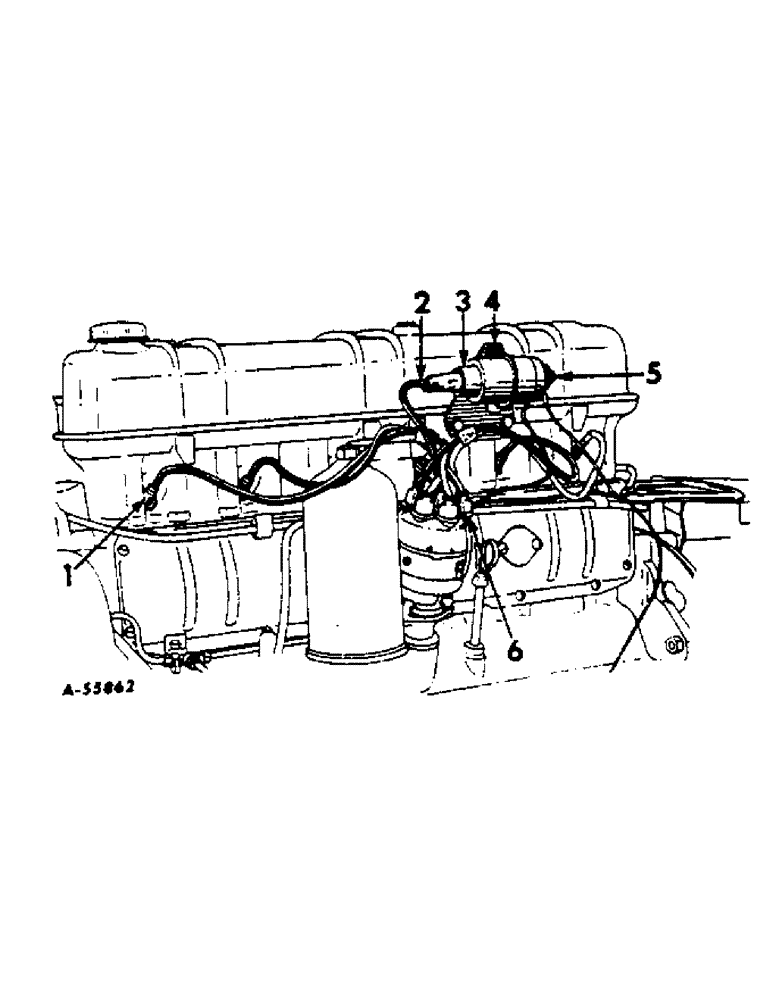

Схема запчастей Case IH 420 - (255) - ELEC. SYS., SPARK PLUGS, CABLES, IGNITION COIL & BRACKETS, 414, UP TO CH812E, 420, UP TO CH1371E (55) - ELECTRICAL SYSTEMS
4
5
6
1
2
3

Артикул

Название

Примечание

Количество

1

645478R91

GLOW PLUG

PLUG, spark, Champion J-8, See note, normal service

6шт.

1

66500R91

PLUG, spark, AC-45 COM, See note, normal service

6шт.

1

73107R91

SPARK PLUG

PLUG, spark, Auto-Lite A-71, See note, normal service

6шт.

1

108074HA

PLUG, spark, Champion J-7, See note, light or moderate service

6шт.

1

124652HA

PLUG, spark, AC-44-COM, See note, light or moderate service

6шт.

1

61185R91

PLUG, spark, Auto-Lite A-5, See note, light or moderate service

6шт.

1

70673R92

SPARK PLUG

PLUG, spark, Champion J-11, See note, severe service

6шт.

1

77268R91

PLUG, spark, AC-46 COM, See note, severe service

6шт.

1

73108R91

PLUG, spark, Auto-Lite A-9, See note, severe service

6шт.

2

66711R92

CABLE

W/NIPPLES ASSY

1шт.

3

151314R91

COIL

W/CLAMP, ignition

1шт.

NUT, no. 10-UNF cd-pltd

2шт.

WASHER, no. 10 cd-pltd lock

2шт.

WASHER, 5/16 lock

2шт.

WASHER, 11/32 x 3/4 x 16 ga

2шт.

NUT, 5/16-UNF

2шт.

4

356389R11

BRACKET, coil mounting w/bolt assy

1шт.

SCREW, 5/16 x 5/8 cap

2шт.

WASHER, 5/16 lock

2шт.

5

358584R91

CABLE, primary ignition, Serial Range: coil-distributor

1шт.

6

251553R1

BOOT

NIPPLE, cable

8шт.

278294R91

CABLE

PACKAGE, ignition cable

1шт.

103325H

GASKET, spark plug

6шт.

354947R1

WRENCH, spark plug, optional with 103688H

1шт.

103688H

WRENCH, spark plug, optional with 354947R1

1шт.

Выбрано товаров: 25
