Запчасти Case IH 420 (246[1]) - GENERATOR AND CONNECTIONS, 12 VOLT, DELCO REMY (55) - ELECTRICAL SYSTEMS

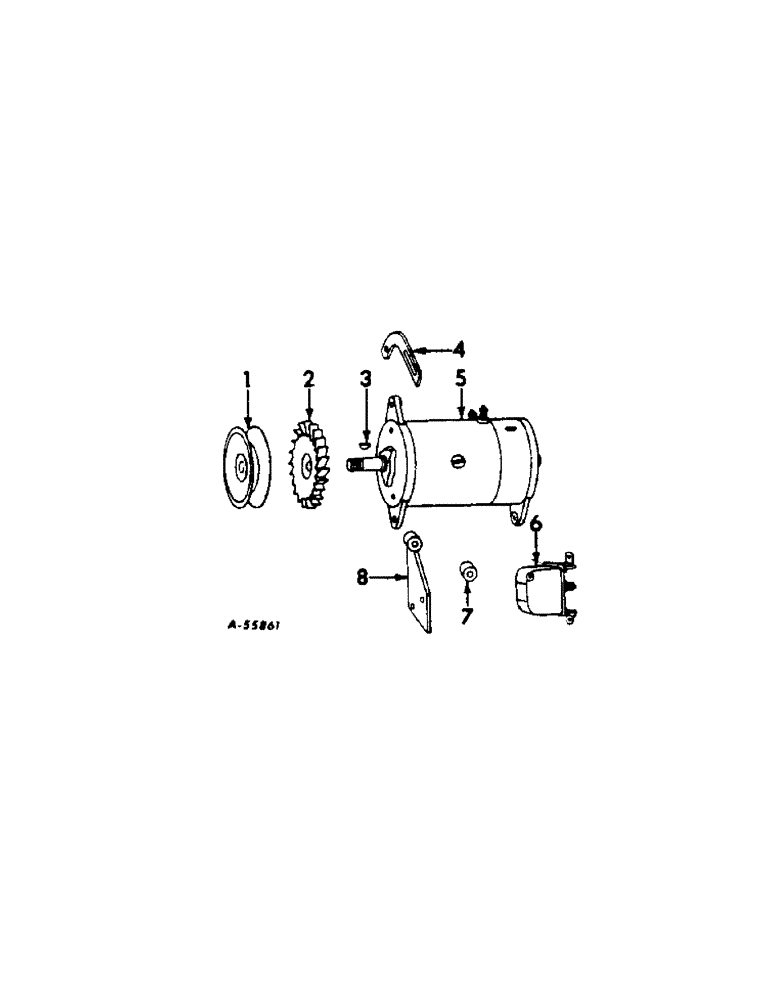

Схема запчастей Case IH 420 - (246[1]) - GENERATOR AND CONNECTIONS, 12 VOLT, DELCO REMY (55) - ELECTRICAL SYSTEMS
2
3
6
5
8
4
1
7

Артикул

Название

Примечание

Количество

1

85091R91

SPARE PART PULLEY, generator

1шт.

2

90426H

SPARE PART FAN, generator

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

4

278288R1

SPARE PART BRACE, generator

1шт.

*

NUT, 3/8NF

1шт.

*

SCREW, 5/16 x 1 cap

1шт.

*

WASHER, 3/8 lock

1шт.

*

WASHER, 5/16 lock

1шт.

*

280185R1

SPACER

WASHER, generator brace

1шт.

5

GENERATOR ASSY, less pulley, For service parts see, generator unit

1шт.

*

NUT, 5/16

2шт.

*

SCREW, 5/16 x 1 cap, gasoline

1шт.

*

SCREW, 5/16 x 1-1/2 cap, L.P. gas

1шт.

*

SCREW, 5/16 x 3-1/4 cap

1шт.

*

WASHER, 5/16 lock

2шт.

6

1118999

REGULATOR

REGULATOR ASSY, 376122R91

1шт.

*

NUT, 1/4

1шт.

*

SCREW, 1/4 x 1/2 cap

1шт.

*

SCREW, 1/4 x 3/4 cap

1шт.

*

WASHER, 1/4 lock

2шт.

7

276108R1

SPARE PART SPACER, generator

1шт.

7

U13039

SPACER

SPACER, generator, 30 amp only

1шт.

*

BOLT, 5/16 x 2-1/2 mach

1шт.

8

308023R1

SPARE PART BRACKET, generator, gasoline only

1шт.

*

SCREW, 7/16 x 1 cap

1шт.

*

WASHER, 7/16 lock

1шт.

104018A1R

REMAN-GENERATOR

Generator

1шт.

104018A1C

CORE-GENERATOR

Return Number

1шт.

87297306

REMAN-GENERATOR

Remanufactured Generator

1шт.

87297307

CORE-GENERATOR

Return Number Generator

1шт.

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

104450A1C

CORE-GENERATOR

Return Number, 12 volt 20 ampere

1шт.

Выбрано товаров: 32
