Запчасти Case IH 420 (086) - LIGHTING ATTACHMENT (55) - ELECTRICAL SYSTEMS

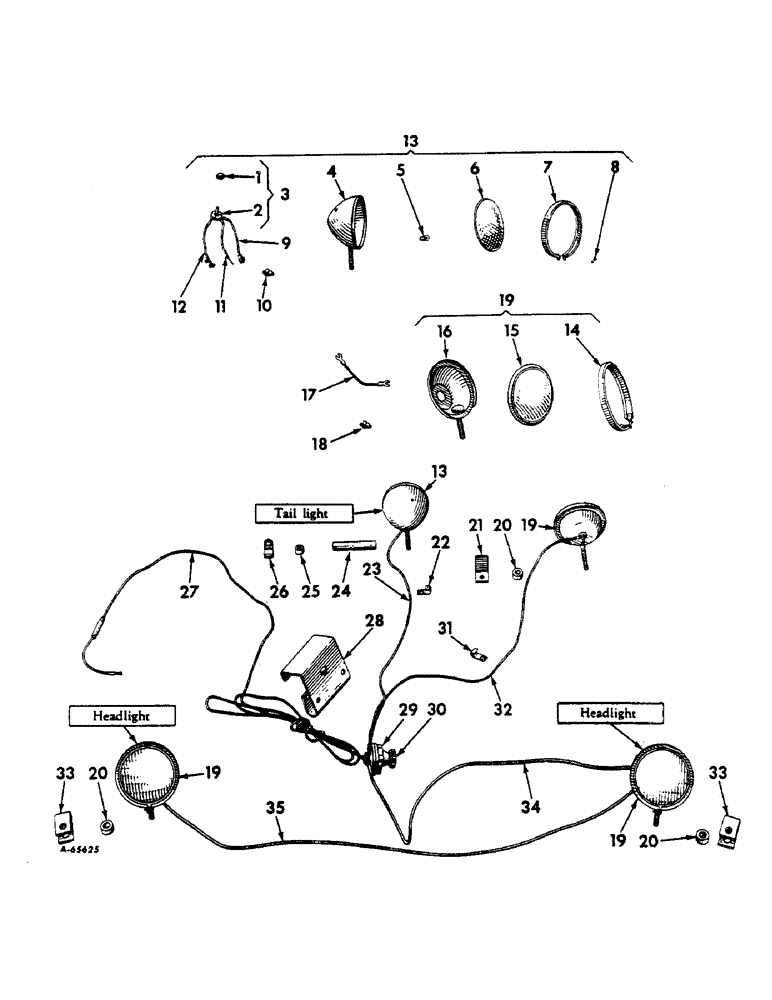

Схема запчастей Case IH 420 - (086) - LIGHTING ATTACHMENT (55) - ELECTRICAL SYSTEMS
20
28
13
19
10
11
12
20
20
2
24
7
17
19
16
23
15
21
27
31
8
22
30
25
14
4
9
29
13
18
1
26
5
19
34
19
6
33
32
35
3
33

Артикул

Название

Примечание

Количество

LIGHTING ATTACHMENT (When ordered) (574502R91) 414CH501E thru 420CH501E thru CH1371E

1шт.

1

373309R91

KNOB

switch

1шт.

2

BODY ASSEMBLY, switch (Order switch assembly, 373308R91)

1шт.

64022H

NO. 8 X 5/16" SPECIAL-SLT-RD-HD SCREW

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

3

373308R91

LIGHT SWITCH

SWITCH ASSEMBLY, light

1шт.

4

BODY, tail light (Order light assembly, 373306R91)

1шт.

5

455490

BULB,C-6, #1003, 12V, .94W

LAMP, tail light

1шт.

6

371461R91

LENS

UNIT, sealed beam

1шт.

7

371450R91

BEZEL

MOULDING, rear light

1шт.

8

132489

SCREW, no. 8 x 1-1/4" slt-fil-hd

1шт.

365697R1

NO. 8 NUT

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

9

373311R91

WIRE ASSEMBLY (Switch to terminal block)

1шт.

10

365664R91

ELEC CONNECTOR

CONNECTOR ASSEMBLY, terminal

1шт.

11

373311R91

WIRE ASSEMBLY (Switch to sealed beam unit)

1шт.

12

373310R91

WIRE W/SPRING ASSEMBLY, Serial Range: (Socket-switch)

1шт.

13

373306R91

LIGHT

ASSEMBLY (Rear lamp and tail)

1шт.

1/2" NUT

1шт.

1/2" LOCK WASHER

1шт.

14

371450R91

BEZEL

MOULDING, headlight

3шт.

365697R1

NO. 8 NUT

3шт.

132489

NO. 8 X 1-1/4" SET-FIL-HD SCREW

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

15

373662R91

LAMP

UNIT, sealed headlight

3шт.

16

BODY, headlight (Order headlight assembly, 373573R91)

1шт.

17

373311R91

WIRE ASSEMBLY (Connector to sealed beam unit)

3шт.

18

365664R91

ELEC CONNECTOR

CONNECTOR ASSEMBLY, terminal

1шт.

19

373573R91

LAMP

HEADLIGHT ASSEMBLY, sealed beam

3шт.

1/2" NUT

3шт.

1/2" LOCK WASHER

3шт.

20

49069D

SPACER

headlight

3шт.

21

561915R1

BRACKET

light

1шт.

5/16 X 1" MACH BOLT W/NUT

1шт.

5/16" LOCK WASHER

1шт.

22

61032D

CLIP, cable

4шт.

22

61813D

CLIP

cable

11шт.

1/4" NUT

6шт.

1/4 X 1/2" RD-HD SCREW

6шт.

1/4" LOCK WASHER

6шт.

23

561999R91

WIRE, tail light

1шт.

24

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, tail

1шт.

3/8 X 5-1/2" CRG BOLT W/NUT

1шт.

1/2 X 6" CRG BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

1/2" LOCK WASHER

1шт.

17/32 X 1" X 16 GA WASHER

2шт.

21/32 X 1-1/4" X 11 GA WASHER

2шт.

25

49069D

SPACER

tail light

1шт.

26

350920R1

CLAMP

tail light

1шт.

27

561998R91

WIRE, positive terminal

1шт.

28

561917R1

BRACKET, light switch mounting

1шт.

3/8 X 1-3/4" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

29

355698R91

SWITCH

light

1шт.

57312D

11/16" NUT

1шт.

141706

WASHER

11/16" INT-TOOTH LOCK WASHER

1шт.

30

57313D

KNOB, light switch

1шт.

122159

HOUSING

NO. 8 X 1/4" SLT-RD-HD SCREW

1шт.

NO. 8 LOCK WASHER

1шт.

31

58313D

CLIP, cable

8шт.

32

561997R91

WIRE, light

1шт.

33

561916R1

CLAMP, headlight

2шт.

34

358583R91

WIRE, left headlight

1шт.

35

358584R91

WIRE, right headlight

1шт.

28499H

SLEEVE, insulating

2шт.

666673R1

TERMINAL

1шт.
