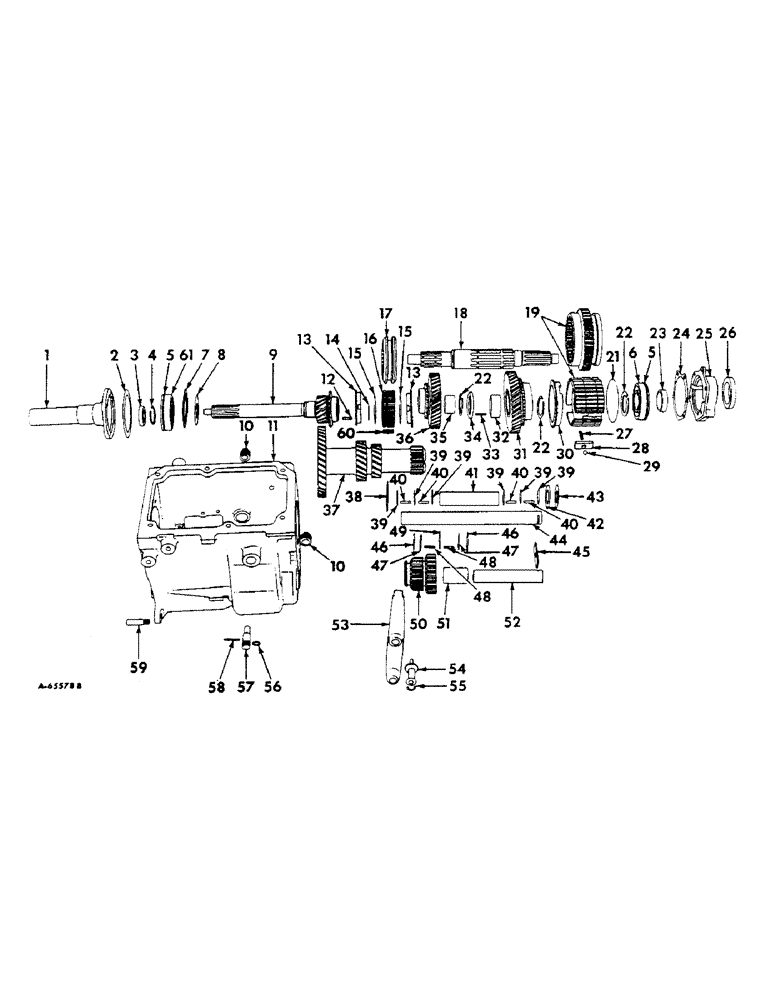

Запчасти Case IH 420 (038) - TRANSMISSION (21) - TRANSMISSION

666132R91

TRANSMISSION ASSEMBLY, Consists of parts shown in "Transmission Control Lever And Housing" unit

1шт.

1

71861R21

RETAINER W/SEAL, main drive gear bearing

1шт.

5/16 X 7/8" CAP SCREW

4шт.

5/16" EXTERNAL TOOTH LOCK WASHER

4шт.

2

77949R1

GASKET

main drive gear bearing retainer

1шт.

3

109119R91

SEAL

OIL SEAL, main drive gear

1шт.

4

137244R1

RING

SNAP RING, main drive gear

1шт.

5

77945R1

RING

SNAP RING, main shaft bearing

2шт.

6

ST532

BEARING ASSY

BEARING, front main shaft

1шт.

7

82076R1

OIL SEAL

RING, bearing spacer

1шт.

8

80175R1

WASHER

BAFFLE, main drive gear oil

1шт.

9

154079R1

GEAR, main drive

1шт.

10

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4" pipe

2шт.

11

666267R1

CASE, transmission

1шт.

12

59579R1

BEARING, ROLLER

16шт.

13

71840R1

RING

synchronizer blocking

2шт.

14

71841R1

RING

SNAP RING, clutch hub

1шт.

15

71839R1

SPRING

synchronizer

2шт.

16

71836R1

HUB, second and high clutch

1шт.

17

71837R1

SLEEVE, second and direct speed clutch

1шт.

18

71834R1

SHAFT, main

1шт.

666270R1

MAIN SHAFT NUT

1шт.

1/8 X 2" COTTER PIN

1шт.

1-1/32 X 1-3/4" X 16 GA WASHER

1шт.

19

82092R1

GEAR ASSEMBLY, low and second speed

1шт.

21

82082R1

RING, SNAP

RING, shift plate retaining

1шт.

22

71843R1

RING

SNAP RING, main shaft

3шт.

23

317627R1

SPACER, speedometer drive gear

1шт.

24

668067R1

GASKET

main shaft bearing retainer

1шт.

25

666271R1

RETAINER, main shaft bearing

1шт.

3/8 X 1" CAP SCREW

4шт.

3/8 X 2" CAP SCREW

1шт.

3/8" EXTERNAL TOOTH LOCK WASHER

5шт.

26

59586R91

SEAL

OIL SEAL, main shaft

1шт.

27

73298R1

SPRING

3шт.

28

82080R1

PLATE, shifting

3шт.

29

16012R1

BALL

3/8" steel

3шт.

30

71847R1

RING

synchronizer blocking

1шт.

31

666273R1

GEAR, main shaft 2nd speed

1шт.

32

82079R1

SPACER, bearing

1шт.

33

71846R1

BEARING, roller

34шт.

34

71842R1

WASHER

2nd speed gear thrust

1шт.

35

NOT SERVICED

1шт.

36

666274R11

GEAR W/BUSHING, main shaft 3rd

1шт.

37

666268R1

GEAR, countershaft

1шт.

38

71857R1

THRUST WASHER

countershaft thrust front

1шт.

39

59572R1

WASHER,29.64mm ID x 37.57mm OD x 4.57mm Thk

SPACER, countershaft gear bearing

6шт.

40

59574R1

ROLLER

countershaft roller

88шт.

41

95363R1

SPACER, countershaft bearing

1шт.

42

154078R1

WASHER, countershaft thrust rear

1шт.

43

71859R1

THRUST WASHER

WASHER, countershaft thrust rear

1шт.

44

71860R1

DRIVE, ANGLE

COUNTERSHAFT

1шт.

45

27082H

PLATE, idler and countershaft lock

1шт.

3/8 X 3/4" CAP SCREW

1шт.

3/8" EXTERNAL TOOTH LOCK WASHER

1шт.

46

91092R1

SNAP RING, reverse idler gear

2шт.

47

91091R1

WASHER

reverse idler thrust

2шт.

48

91094R1

ROLLER

reverse idler roller

74шт.

49

91093R1

SCRAPER RING

SPACER, reverse idler roller

1шт.

50

91089R11

GEAR W/BEARING AND SLEEVE, reverse idler

1шт.

51

91095R1

SLEEVE, reverse idler shaft

1шт.

52

59423R1

DRIVE, ANGLE

SHAFT, reverse idler

1шт.

53

147922R1

ARM, reverse shifting

1шт.

54

91090R1

SHOE

shifting reverse

1шт.

55

82084R1

WASHER

shifting shoe

1шт.

56

147920R1

SEAL

OIL SEAL, shifting arm pivot

1шт.

57

147921R1

PIVOT, shifting arm

1шт.

58

103565

PLUG, DRAIN,#0 x 1 1/4", Tapered

PIN, taper

1шт.

59

94807R1

SCREW

STUD, case

4шт.

1/2 NF NUT

4шт.

1/2" LOCK WASHER

4шт.

60

71838R1

PLATE ASSY.

PLATE, shifting

3шт.

61

ST431

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, rear main shaft

1шт.
