Запчасти Case IH 420 (392) - FLYWHEEL, FLYWHEEL HOUSING AND CLUTCH (10) - ENGINE

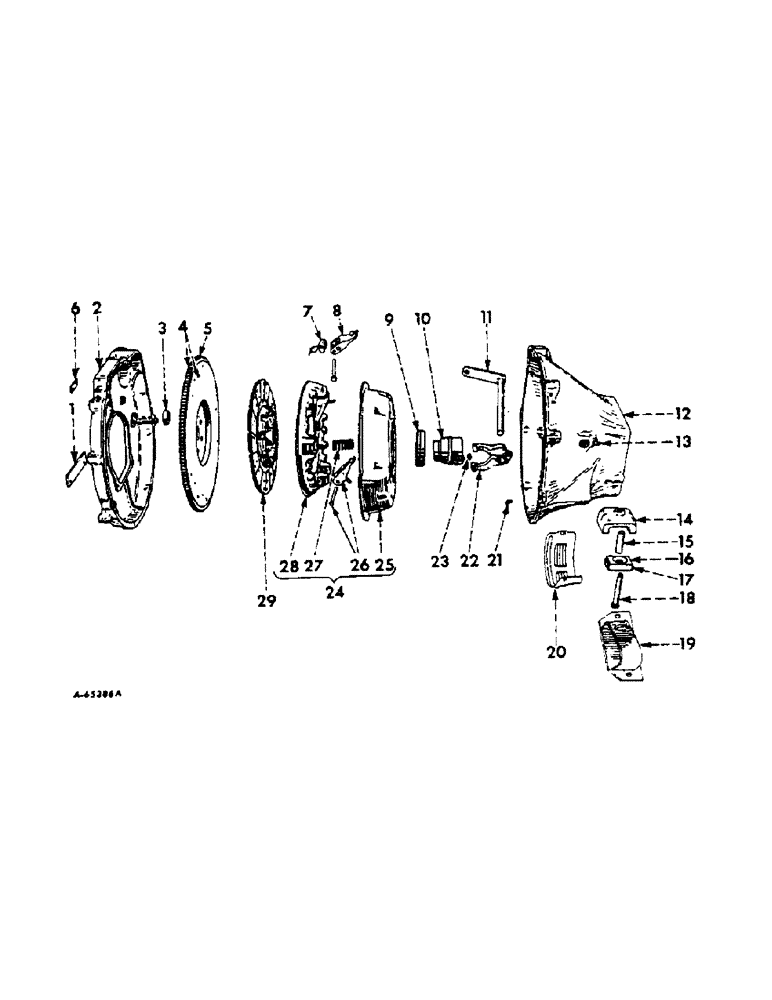

Схема запчастей Case IH 420 - (392) - FLYWHEEL, FLYWHEEL HOUSING AND CLUTCH (10) - ENGINE
8
29
9
22
14
18
24
26
7
23
3
28
16
12
19
6
5
25
11
21
15
4
17
10
13
27
2
20

Артикул

Название

Примечание

Количество

1

367225R1

BAR

SEAL, adapter housing seal

1шт.

179814

SPACER

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga

2шт.

2

376595R1

ADAPTER

HOUSING, adapter

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

3

ST545

BALL BEARING,19 mm ID x 35 mm OD x 11 mm

BEARING, clutch pilot

1шт.

4

316138R11

FLYWHEEL

w/ring gear, 304439R1

1шт.

323979R1

BOLT (SPREADER),Hex, 7/16" - 20 x 1.75"

BOLT, 7/16-20NF x 1-3/4 hex lock

6шт.

5

304439R1

GEAR

flywheel ring

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

189726R1

VALVE SPRING

SPRING, lever

3шт.

8

236062R91

SET, lever, Consists of three lever kits, 223447R91

1шт.

8

223446R11

LEVER W/SCREW

3шт.

146806R1

SCREW,Hex, 5/16" - 24 x 15/32"

lever

3шт.

9

121515R91

NO LONGER SERVICED

BEARING, sleeve clutch release

1шт.

10

62634HC

RELEASE, sleeve clutch

1шт.

11

316142R91

SHAFT, clutch release

1шт.

12

871972R2

HOUSING, clutch

1шт.

65449R1

BOLT,Hex, 1/2"

SCREW, housing, Serial Range: 1962-1966

2шт.

392584R1

SCREW, housing shoulder, 1966 and since

1шт.

102637

NUT,1/2"-13, G5

For 392584R1 screw 1/2"-13, G5

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

SCREW, housing

2шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

14

185412R92

INSULATOR

BRACKET, mounting

2шт.

15

185419R1

SLEEVE

mounting

2шт.

16

185420R1

INSULATOR

mounting

2шт.

17

185411R1

RETAINER

insulator

2шт.

18

185199R91

BOLT

special

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095 ga

2шт.

19

666063R91

SUPPORT, engine mount front left

1шт.

19

666064R91

SUPPORT, engine mount front right

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

3шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga

4шт.

20

871976R1

COVER, clutch housing hand hole

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

2шт.

21

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, clutch release fork, 1/4 x 7/8 no. A Woodruff

1шт.

22

62635HD

CRADLE

FORK, clutch release

1шт.

120369

NUT,3/8"-24, G5

1шт.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, 3/8NF x 1-3/4 cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

24

223444R91

COVER ASSY

PLATE ASSY, clutch pressure

1шт.

25

143224R1

PLATE, back

1шт.

73092R2

SCREW, back plate

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

26

223447R91

KIT ASSY, clutch lever

3шт.

27

68740H

SPRING

pressure

1шт.

28

199816R1

PLATE, pressure

1шт.

29

143228R91

DISC ASSY, driven, organic facing, optional w/disc, 43667HH

1шт.

29

43667HH

DISC ASSY, driven, semi-metallic facing, optional w/143228R91

1шт.

169071R1

PLUG

clutch housing

2шт.

133452R1

SLEEVE

DOWEL, sleeve type

2шт.

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, adapter housing button

1шт.
