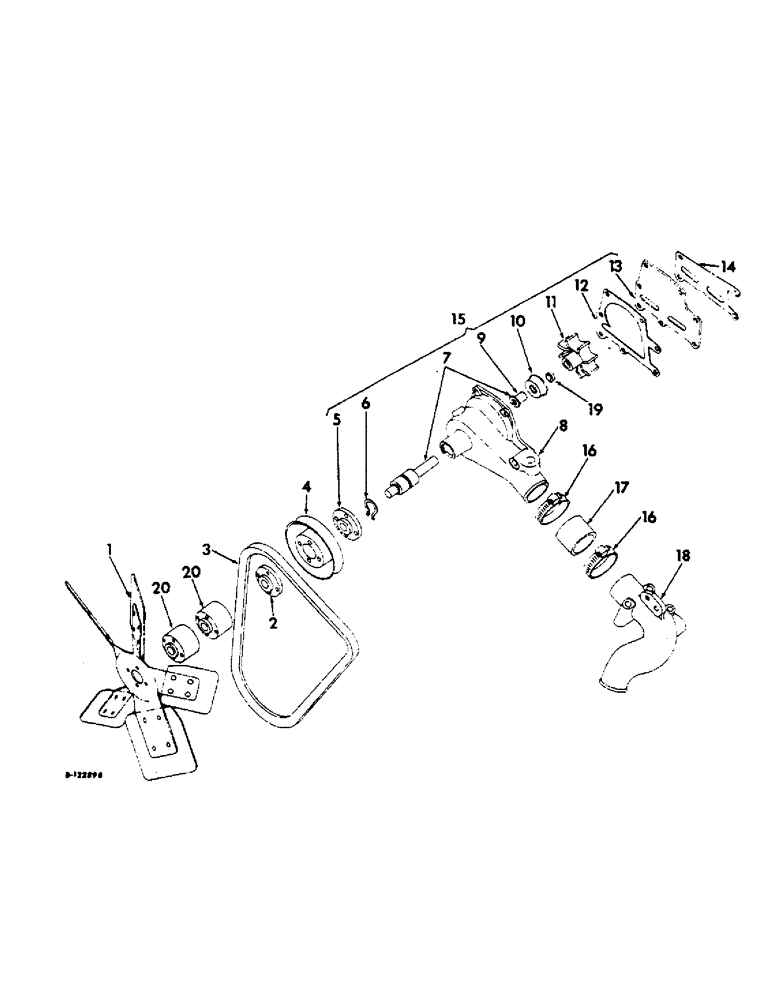

Запчасти Case IH 420 (362) - WATER PUMP, FAN BLADES AND BELT (10) - ENGINE

1

370782R91

FAN

BLADE ASSY, fan, five blade

1шт.

1

401796R1

BLADE ASSY, fan, six blade, Used with increased capacity cooling

1шт.

181319

BOLT,Hex, 1/4" - 28 x 1 1/2", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

369289R1

SPACER, fan

1шт.

3

312515R1

BELT

Fan and generator drive, 414 - up to serial no. CH812E, 420 - up to serial no. CH1371E

1шт.

3

379966R2

V-BELT,0.50" W x 54.00" L

Fan and generator drive, 414CH813F and above, all 416 & 422 Cotton Pickers 0.50" W x 54.00" L

1шт.

4

304435R1

PULLEY

water pump

1шт.

5

368501R2

HUB CAP

HUB, pulley

1шт.

6

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , brg 1.188", Int, #118

1шт.

7

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT AND BEARING ASSY, water pump, will work for ST680

1шт.

8

BODY ASSY, water pump, Order pump assy

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 CI auto. sq-soc-hd pipe

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG,1/2-14 C-Z auto. sq-hd pipe

2шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-soc-hd drain

1шт.

9

71351R1

SLINGER

water pump

1шт.

10

SEAL, water pump, Order water pump seal package, 687161C91

1шт.

11

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump, also order seat, 684432C1

1шт.

12

69674R1

GASKET

water pump plate

1шт.

13

69675R1

PLATE

water pump

1шт.

441444

SPARE PART

SCREW, 1/4-20 x 1/2 slt-pan-hd mach

3шт.

14

69676R1

GASKET

water pump

1шт.

15

601816C93

PUMP ASSY, water, Composed of

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

69674R1

GASKET

1шт.

368501R2

HUB CAP

HUB

1шт.

387931R1

TORQ CONV IMPELLER

IMPELLER

1шт.

69675R1

PLATE

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG

2шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG

1шт.

SEAL

1шт.

441444

SPARE PART

SCREW

3шт.

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT AND BRG ASSY

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, water pump inlet hose

2шт.

17

278281R1

HOSE

water pump inlet, 1-3/4 x 2-3/16

1шт.

18

312501R1

CONNECTOR W/BRACKET, water

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

684432C1

SEAT/SLOT

SEAT, water pump seal

1шт.

20

316169R1

SPACER, fan, Used w/increased capacity cooling

2шт.

433070

BOLT,Hex, 1/4"-28 x 3 3/4", G5

SCREW, 1/4-28 x 3-3/4 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

687161C91

PACKING

PACKAGE, water pump seal, Replaces 701331C92, Consists of

1шт.

687645C91

SEAL

(NSS)

1шт.

687706C91

SEAT

(NSS)

1шт.

374544R94

KIT

PACKAGE, water pump service, For components see list of parts under details of service packages

1шт.
