Запчасти Case IH 414 (347) - FUEL INJECTION PUMP & CONNECTIONS, 420, CH1372F - CH2820G, 414, CH813F - 1568G, 416, CH501H & ABOVE (10) - ENGINE

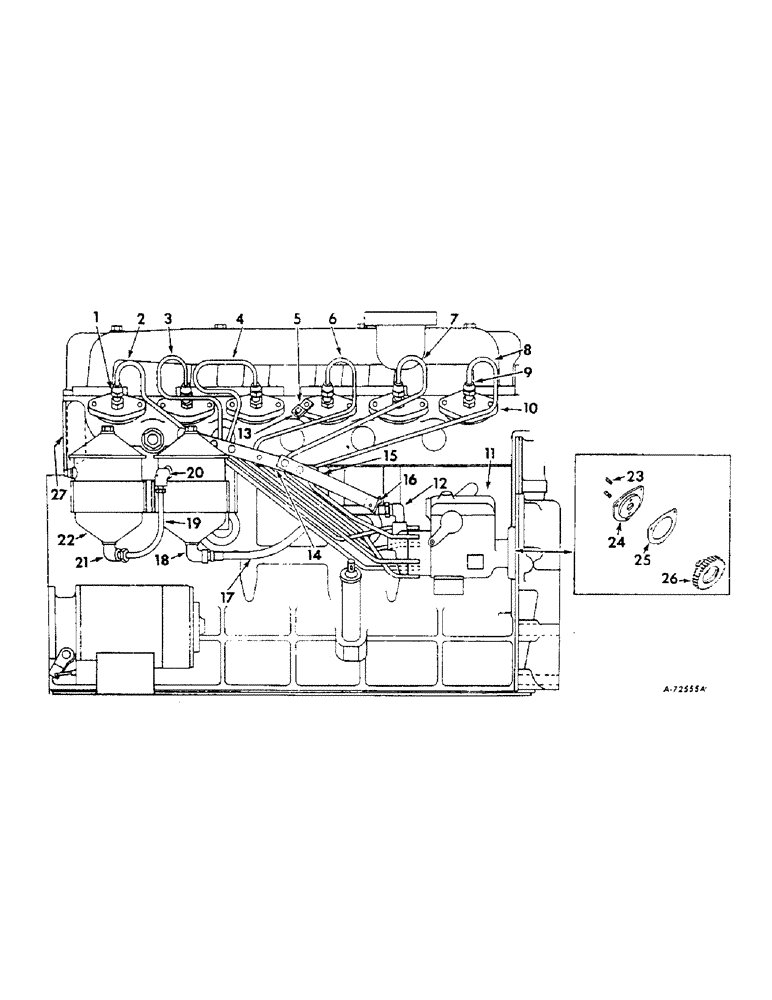

Схема запчастей Case IH 414 - (347) - FUEL INJECTION PUMP & CONNECTIONS, 420, CH1372F - CH2820G, 414, CH813F - 1568G, 416, CH501H & ABOVE (10) - ENGINE
9
18
25
6
21
15
22
13
17
16
19
20
4
7
10
2
14
1
5
3
23
24
8
26
12
11
1
27

Артикул

Название

Примечание

Количество

1

250617R1

NUT

injection pipe, nozzle end

6шт.

2

278707R11

FUEL TUBE

PIPE ASSY, injection cylinder no. 6

1шт.

3

278706R11

FUEL TUBE

PIPE ASSY, injection cylinder no. 5

1шт.

4

278705R11

FUEL TUBE

PIPE ASSY, injection cylinder no. 4

1шт.

5

42915D

BLOCK

junction

1шт.

103088

NUT,#10-32

10-32 hex.

1шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

10-32 x 1/2 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

6

278704R11

FUEL TUBE

PIPE ASSY, injection cylinder no. 3

1шт.

7

278703R11

FUEL TUBE,28.33" Length

PIPE ASSY, injection cylinder no. 2

1шт.

8

278702R21

INJECTION PIPE

PIPE ASSY, injection cylinder no. 1

1шт.

9

250610R2

GUARD

SLEEVE, injection pipe

6шт.

10

332495R91

NOZZLE INJECTION

NOZZLE ASSY, injection, For components see list of parts under details of injection nozzle

6шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 PHC hex-hd cap

12шт.

11

PUMP ASSY, injection, For components see list of parts under details of injection pump

1шт.

25522R1

NUT,3/8"-16, G8

3/8-16 PHC hex.

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

3/8 hardened

2шт.

142619H

WASHER

injection pump

2шт.

12

118755

ELBOW

3/8-90 deg, pump inlet

1шт.

13

304313R1

BRACKET

junction block

1шт.

14

CLAMP, injection pipe, drilled, on orders for 332489R1 furnish service package 701127C91

1шт.

14

670004C11

CLAMP

W/3 PINS, injection pipe, drilled

1шт.

19387R1

PIN, 7/16 x 3/4 slotted spring

3шт.

14

332490R1

CLAMP

injection pipe, tapped

1шт.

332491R2

PAD

injection pipe clamp

2шт.

26258R1

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 8

SCREW, 1/4-28 x 1-1/4 PHC hex-hd cap

5шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

1/4 hardened

3шт.

15

312588R11

BRACKET W/CLAMP ASSY, engine shut off wire

1шт.

16

275965R1

CLAMP

engine shut off wire bracket

1шт.

103101

CLEVIS

NUT, 10-32 square

1шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

10-32 x 1/2 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

17

275946R91

HOSE,7.92mm ID x 368.3mm L, SAE 30R2

ASSY, final fuel filter to injection pump, 14.5 in. long

1шт.

18

137538

YOKE

ELBOW, 1/4 x 90 deg female brass, final fuel filter outlet

1шт.

19985R1

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, 1/8 PT x 1/2-20 hi-duty tube fitting

1шт.

19

278335R11

TUBE

PIPE ASSY, primary fuel filter to final fuel filter

1шт.

20

22510D

ELBOW UNION

ELBOW, final fuel filter inlet

1шт.

21

65834D

ELBOW

primary fuel filter outlet

1шт.

22

FILTER ASSY, For components see list of parts under details of fuel filters

1шт.

25520R1

NUT,5/16"-18, G8

5/16-18 PHC hex.

8шт.

25492R1

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

SCREW, 5/16-18 x 7/8 PHC hex-hd cap

8шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

5/16 hardened

8шт.

23

303463R1

STUD

injection pump adapter, D-282 w/serial no. 77499 & below

2шт.

24

303462R11

ADAPTER W/TWO STUDS, 303463R1, injection pump, D-282 w/serial no. 77499 & below

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

278347R1

GASKET

injection pump adapter, D-282 w/serial no. 77499 & below

1шт.

26

612084C1

GEAR

injection pump

1шт.

114497

NUT, 9/16-18 hex. jam

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

27

316325R1

BRACKET, fuel filter

1шт.

24849R1

BOLT,Hex, 7/16" - 14 x 1", Gr 8

SCREW, 7/16-14 x 1 PHC hex-hd cap

2шт.

26272R1

WASHER,.469" x 59/64" x .105", HDN

7/16 hardened

2шт.

263716R91

CLIP

fuel tube

1шт.

37167D

ELBOW UNION,90 Degree x 1/8" NPT x 9/16"-20

ELBOW, 1/8 x 90 deg hi-duty tube fitting male pipe, fuel return line

1шт.

19986R1

TUBE NUT,9/16"-20

NUT, 9/16-20 hi-duty tube fitting

1шт.
