Запчасти Case IH 414 (345) - FUEL INJECTION PUMP AND CONNECTIONS, 414, UP TO SERIAL NO. CH812E, 420, UP TO SERIAL NO. CH1371E (10) - ENGINE

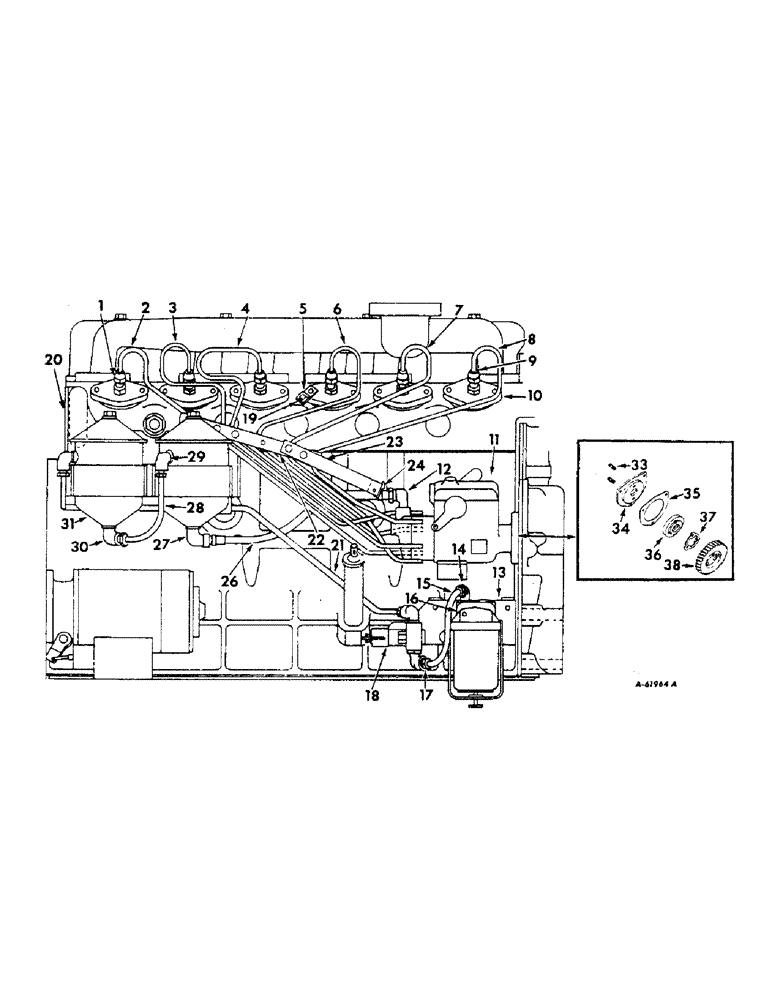

Схема запчастей Case IH 414 - (345) - FUEL INJECTION PUMP AND CONNECTIONS, 414, UP TO SERIAL NO. CH812E, 420, UP TO SERIAL NO. CH1371E (10) - ENGINE
7
11
37
6
24
29
20
26
36
2
17
31
22
1
23
4
15
21
18
3
12
28
5
14
27
19
10
30
16
35
38
33
13
9
8
34

Артикул

Название

Примечание

Количество

1

2506171R1

NUT, injection pipe, nozzle end

6шт.

2

278707R11

FUEL TUBE

PIPE ASSY, injection, cylinder no. 6

1шт.

3

278706R11

FUEL TUBE

PIPE ASSY, injection, cylinder no. 5

1шт.

4

278705R11

FUEL TUBE

PIPE ASSY, injection, cylinder no. 4

1шт.

5

42915D

BLOCK

junction

1шт.

103088

NUT,#10-32

10-32 hex.

1шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

10-32 x 1/2 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

6

278704R11

FUEL TUBE

PIPE ASSY, injection, cylinder no. 3

1шт.

7

278703R11

FUEL TUBE,28.33" Length

PIPE ASSY, injection, cylinder no. 2

1шт.

8

278702R21

INJECTION PIPE

PIPE ASSY, injection, cylinder no. 1

1шт.

9

250610R2

GUARD

SLEEVE, injection pipe

6шт.

10

332495R91

NOZZLE INJECTION

NOZZLE ASSY, injection, For components see list of parts under details of injection nozzle

6шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 PHC hex-hd cap

12шт.

11

PUMP ASSY, injection, For components see list of parts under details of injection pump

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

113934H

WASHER

injection pump

2шт.

12

118755

ELBOW

3/8 x 90 deg flared tube, injection pump inlet

1шт.

13

304443R1

BRACKET, fuel pump and water trap

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, 7/1-14 x 7/8 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

14

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

1/4 x 90 deg hi-duty tube fitting male pipe

5шт.

15

305926R1

TUBE, water trap to priming pump

1шт.

16

251355R91

TRAP

ASSY, water, For components see list of parts under details of water trap

1шт.

17

19986R1

TUBE NUT,9/16"-20

NUT, 9/16-20 hi-duty tube fitting

5шт.

18

303753R91

PUMP

ASSY, hand primer, For components see list of parts under details of hand primer pump

1шт.

110633

NUT,#10-24

2шт.

110504

SCREW,Slotted Rd Hd, #10-24 x 1"

10-24 x 1 slt-rd-hd mach

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

305927R1

BRACKET, hand primer pump

1шт.

102635

NUT,3/8"-16, G5

5/16-18 hex.

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

304313R1

BRACKET

junction block mounting

1шт.

20

316325R1

BRACKET, fuel filter

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

21

316141R1

TUBE, priming pump to primary fuel filter

1шт.

22

CLAMP, injection pipe, drilled, on orders for 332489R1 furnish service package 701127C91

1шт.

22

670004C11

CLAMP

W/3 PINS, injection pipe drilled

1шт.

19387R1

PIN, 7/16 x 3/4 slotted spring

3шт.

22

332490R1

CLAMP

injection pipe, tapped

1шт.

332491R2

PAD

injection pipe clamp

2шт.

414-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

SCREW, 1/4-28 x 1-1/4 hex-hd cap

3шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

23

312588R11

BRACKET W/CLAMP ASSY, engine shut off wire

1шт.

24

275965R1

CLAMP

engine shut off wire bracket

1шт.

103101

CLEVIS

NUT, 10-32 square

1шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

10-32 x 1/2 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

25

NOT USED IN THIS APPLICATION

1шт.

26

275946R91

HOSE,7.92mm ID x 368.3mm L, SAE 30R2

ASSY, final fuel filter to injection pump, 14.5 in. long

1шт.

27

137538

YOKE

ELBOW, 1/4 x 90 deg female brass, final fuel filter outlet

1шт.

19985R1

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR,1/8 PT x 1/2-20 hi-duty tube fitting

1шт.

28

278335R11

TUBE

PIPE ASSY, primary fuel filter to final fuel filter

1шт.

29

22510D

ELBOW UNION

ELBOW, final fuel filter inlet

1шт.

30

65834D

ELBOW

primary fuel filter outlet

1шт.

31

FILTER ASSY, fuel, For components see list of parts under details of fuel filters

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

8шт.

32

NOT USED IN THIS APPLICATION

1шт.

33

303463R1

STUD

injection pump adapter

2шт.

34

303462R11

ADAPTER ASSY, injection pump

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

278347R1

GASKET

injection pump adapter

1шт.

36

278316R1

HUB CAP

HUB, injection pump gear

1шт.

347230R91

SCREW W/EXTERNAL TOOTH LOCK WASHER, 5/16 x 1-1/4 hex-hd mach

1шт.

37

278317R1

WASHER, injection pump gear

1шт.

38

278315R1

PINION

GEAR, injection pump

1шт.

114497

NUT, 9/16-18 hex. jam

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

263716R91

CLIP

fuel tube

1шт.

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

1/8 x 90 deg hi-duty tube fitting male pipe, fuel return line

1шт.

19984R1

TUBE NUT,7/16"-24

NUT, 1/2-20 hi-duty tube fitting

1шт.

701127C91

STRIPPER PACKAGE

PACKAGE, pipe clamp service, Consists of

1шт.

670004C11

CLAMP

1шт.

332491R2

PAD

S

2шт.

95-11028

WASHER,1/4"

S

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
