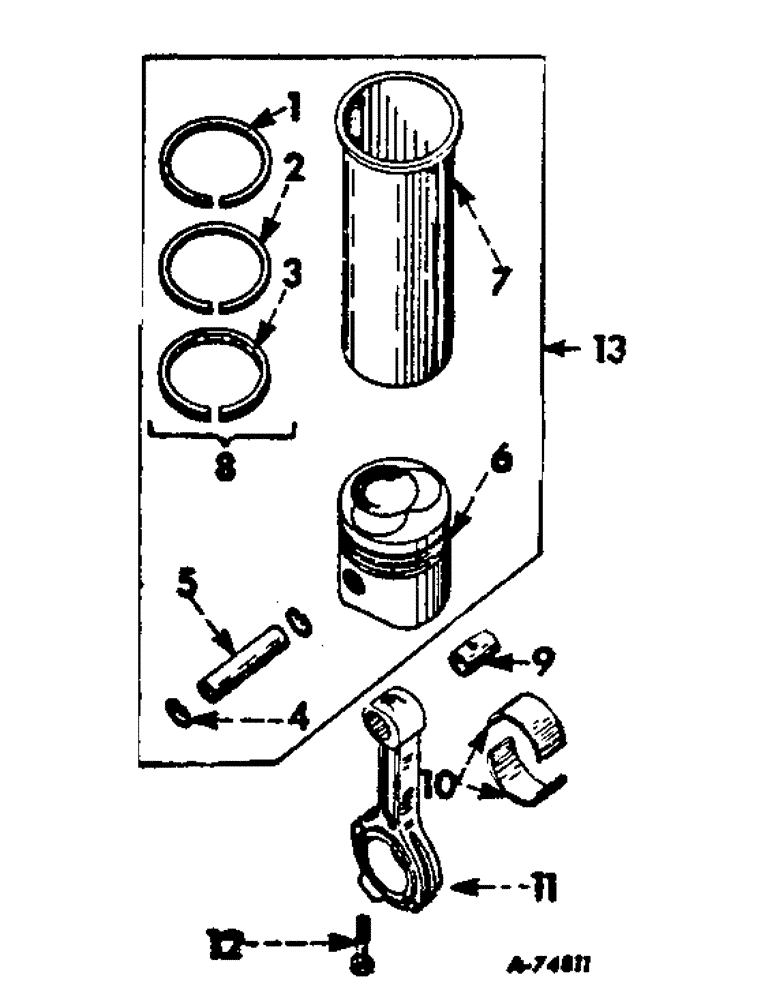

Запчасти Case IH 414 (341) - CONNECTING RODS, PISTONS AND SLEEVE SETS (10) - ENGINE

1

RING, compression, top or first groove, Order piston ring service package

1шт.

2

RING, compression, second groove, Order piston ring service package

1шт.

3

RING, oil regulating piston, third or bottom groove, Order piston ring service package

1шт.

4

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, , piston pin 1.125", Int, #112

12шт.

5

332436R1

PIN,28.57mm OD x 17.48mm L

piston, standard

6шт.

6

PISTON, Not serviced separately, Order piston w/sleeve assy

6шт.

7

320017R91

PACKAGE

cylinder sleeve, D-282 w/serial no. 71819 & below, Consists of

6шт.

278272R1

SLEEVE CYLINDER

SLEEVE

1шт.

320000R1

SHIM

1шт.

320018R1

SHIM

S

2шт.

7

278272R1

SLEEVE CYLINDER

SLEEVE, cylinder, STD, D-282 w/serial no. 71819 & below

6шт.

7

323802R1

SLEEVE CYLINDER

SLEEVE, cylinder, .002 oversize, D-282 w/serial no. 71819 & below

6шт.

320000R1

SHIM

CYLINDER SLEEVE SHIM, .005

1шт.

320018R1

SHIM

CYLINDER SLEEVE SHIM, .003

1шт.

7

609028C11

SLEEVE CYLINDER

SLEEVE, cylinder, STD, D-282 w/serial no. 71820 & above

6шт.

7

612000C11

SLEEVE CYLINDER

SLEEVE, cylinder, .002 O/S, D-282 w/serial no. 71820 & above

6шт.

7

612001C11

SLEEVE CYLINDER

SLEEVE, cylinder, .010 O/S, D-282 w/serial no. 71820 & above

6шт.

8

674727C91

RING

PACKAGE, piston ring service, koppers, optional w/680035C91, Consist of two compression and one oil ring

6шт.

8

680035C91

RING, SET

PACKAGE, piston ring service, sealed power, optional w/674727C91, Consists of two compression and one oil ring

1шт.

9

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

piston pin

6шт.

10

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING, connecting rod, standard, two halves

6шт.

10

367632R11

BEARING ASSY

BEARING, connecting rod, .002 undersize, two halves

6шт.

10

376666R11

BEARING ASSY

connecting rod, .010 undersize, two halves

6шт.

10

376668R11

CONN. ROD SHELL

BEARING, connecting rod, .020 undersize, two halves

6шт.

10

367631R11

BEARING ASSY

connecting rod, .030 undersize, two halves

6шт.

10

367630R91

BEARING SET, connecting rod, standard, Consists of six rod bearing, 367408R11

1шт.

10

377285R91

KIT

BEARING SET, connecting rod, .002 undersize, Consists of six bearings, 367632R11

1шт.

10

376665R91

BEARING

SET, connecting rod, .010 undersize, Consists of six bearings, 376666R11

1шт.

10

376667R91

KIT

BEARING SET, connecting rod, .020 undersize, Consists of six bearings, 376668R11

1шт.

10

372443R91

KIT

BEARING SET, connecting rod, .030 undersize, Consists of six bearings, 367631R11

1шт.

11

306280R12

ROD, CONNECTING

ROD W/TWO BOLT, 316366R1 and bushing, 306708R1, connecting

6шт.

11

735237C91

REMAN-CONNECTING ROD

Reman for New PN 306280R12

6шт.

11

1928147C1

CORE-ROD CONNECTING

Return Number

6шт.

12

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.

13

609344C91

PACKAGE, REPAIR

SLEEVE W/PISTON ASSY, cylinder, will work for 332672R91, koppers, D-282 w/serial no. 71819 & below, Composed of

6шт.

332436R1

PIN,28.57mm OD x 17.48mm L

1шт.

318377R2

PISTON

(NSS)

1шт.

673536R1

RING (NSS)

1шт.

673537R1

HYDRAULIC HOSE,0.50" ID x 50.00", SAE 100R1

RING (NSS)

1шт.

673538R1

RING (NSS)

1шт.

338835T1

RING

2шт.

320017R91

PACKAGE

SLEEVE PKG

1шт.

13

609346C91

SLEEVE CYLINDER

PACKAGE, piston and oversize cylinder sleeve, koppers, will work for 332678R91, D-282 w/serial no. 71819 & below, Consists of

6шт.

332436R1

PIN,28.57mm OD x 17.48mm L

1шт.

318377R2

PISTON

(NSS)

1шт.

673536R1

RING (NSS)

1шт.

673537R1

HYDRAULIC HOSE,0.50" ID x 50.00", SAE 100R1

RING (NSS)

1шт.

673538R1

RING (NSS)

1шт.

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

2шт.

320018R1

SHIM

2шт.

320000R1

SHIM

1шт.

323802R1

SLEEVE CYLINDER

SLEEVE

1шт.

13

612008C91

PISTON

SLEEVE W/PISTON ASSY, cylinder, koppers, D-282 w/serial no. 71820 & above, Consists of

6шт.

332436R1

PIN,28.57mm OD x 17.48mm L

1шт.

318377R2

PISTON

(NSS)

1шт.

673536R1

RING (NSS)

1шт.

673537R1

HYDRAULIC HOSE,0.50" ID x 50.00", SAE 100R1

RING (NSS)

1шт.

673538R1

RING (NSS)

1шт.

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, , pin 1.125", Int, #112

2шт.

609028C11

SLEEVE CYLINDER

SLEEVE

1шт.

680337C91

PISTON

PACKAGE, piston and rings, koppers, Consists of

6шт.

318377R2

PISTON

(NSS)

1шт.

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

2шт.

673536R1

RING (NSS)

1шт.

673537R1

HYDRAULIC HOSE,0.50" ID x 50.00", SAE 100R1

RING (NSS)

1шт.

673538R1

RING (NSS)

1шт.
