Запчасти Case IH 414 (339) - CRANKCASE AND RELATED PARTS (10) - ENGINE

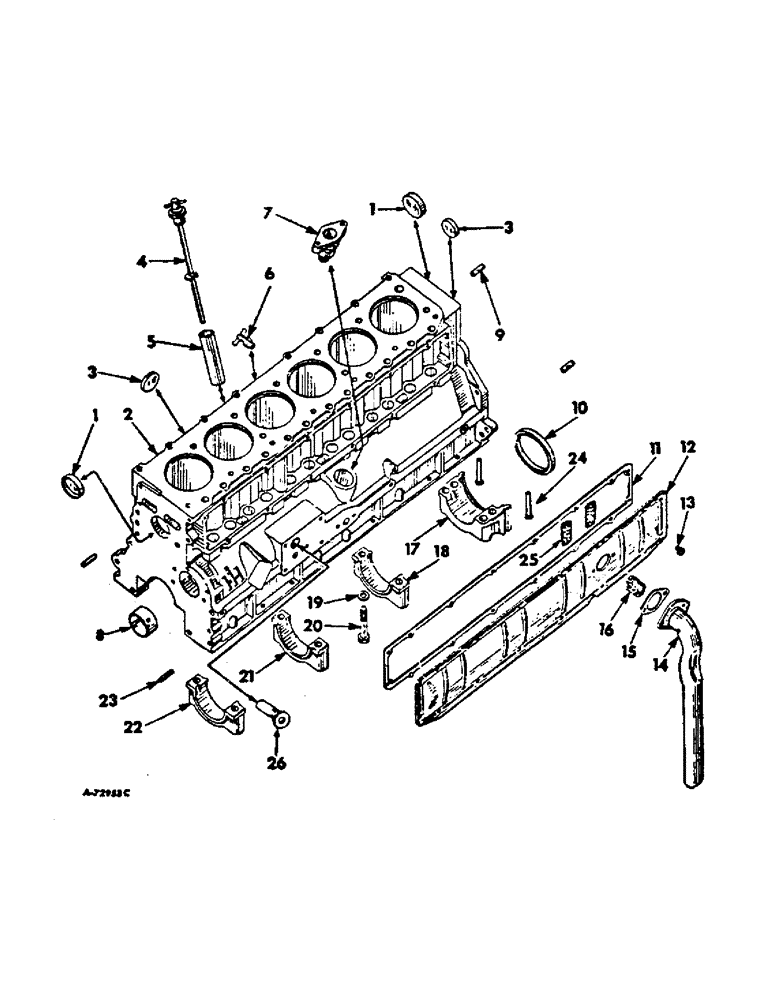

Схема запчастей Case IH 414 - (339) - CRANKCASE AND RELATED PARTS (10) - ENGINE
3
19
8
22
25
18
14
23
9
17
2
3
6
16
4
1
26
13
15
10
12
1
11
20
7
5
21
24

Артикул

Название

Примечание

Количество

1

20840R1

PLUG,Cup, 2", Stainless

core hole

2шт.

2

612017C92

CRANKCASE ASSY, For service replacement also order o-ring, 349055R2 and valve, 612092C91, will work for 601776C91, Composed of

1шт.

328512R1

BOLT (SPREADER),1/2" - 13 x 3 1/4"

BOLT

10шт.

NSS

NOT SOLD SEPARAT

BUSHING

4шт.

NSS

NOT SOLD SEPARAT

CAP

4шт.

607488C2

CRANKCASE (NSS)

1шт.

NLS

NO LONGER SERVICED

DOWEL

2шт.

371699R2

STUD

DOWEL

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

70128R1

PLUG,Cup, 1 5/8"

6шт.

20840R1

PLUG,Cup, 2", Stainless

2шт.

444671

PLUG

3шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

2шт.

50410DA

PLUG

1шт.

50410DA

PLUG

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

6шт.

368985R2

TUBE

1шт.

345409R1

WASHER,13.84mm ID x 25.4mm OD x 2.34mm Thk

10шт.

50140DA

PLUG, 1/8 hex. socket pipe

1шт.

444671

PLUG, 1/8 sq-hd pipe

3шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8 short sq. socket pipe

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

3

70128R1

PLUG,Cup, 1 5/8"

core hole

6шт.

4

378408R91

GAUGE

oil level

1шт.

5

368985R2

TUBE

oil filler

1шт.

6

9982T

COCK

VALVE, 1/4 drain, type B

1шт.

7

306637R11

SUPPORT

W/PLUG, oil pump shaft

1шт.

172558

PLUG,Exp, 1 1/4"

expansion

1шт.

8

70259R2

BUSHING

BEARING, camshaft, front

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

BEARING, camshaft, intermediate front

1шт.

8

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

BEARING, camshaft, intermediate rear

1шт.

8

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BEARING, camshaft, rear

1шт.

9

371699R2

STUD

DOWEL, engine rear support

2шт.

10

538983R1

OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk

OIL SEAL, rear bearing cap

1шт.

11

369982R1

GASKET

valve push rod cover

1шт.

12

315970R91

PLATE ASSY.

COVER W/TWO ELEMENTS, 315849R1 assy, valve push rod

1шт.

13

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW W/WASHER, 1/4 x 1/2 slt-truss-hd mach

16шт.

14

368429R31

VENTILATION PIPE

PIPE W/FLANGE, breather

1шт.

374587R91

SCREW W/WASHER, 1/4-20 x 1/2 slt-rd-hd mach

2шт.

15

369981R1

GASKET

breather pipe

1шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

306674R1

CAP, crankshaft rear bearing, partially finished see service manual

1шт.

18

306673R1

CYLINDER END CAP

CAP, crankshaft rear intermediate bearing, partially finished see service manual

1шт.

19

345409R1

WASHER,13.84mm ID x 25.4mm OD x 2.34mm Thk

crankshaft bearing cap bolt

10шт.

20

328512R1

BOLT (SPREADER),1/2" - 13 x 3 1/4"

BOLT, crankshaft bearing cap

10шт.

21

306672R1

CYLINDER END CAP

CAP, crankshaft bearing intermediate front, partially finished see service manual

1шт.

22

306671R1

CAP, crankshaft front bearing, partially finished see service manual

1шт.

23

NLS

NO LONGER SERVICED

DOWEL, 1/2 x 1-1/4 crankcase front plate

2шт.

24

310665R1

PLUG

rear bearing cap seal

2шт.

25

315849R1

FILTER CARTRIDGE

ELEMENT, breather

2шт.

26

612092C91

LOCK VALVE

VALVE ASSY, oil pressure regulating, Used w/crankcase, 601774C1, D-282 w/serial no. 71819 & below

1шт.

349055R2

RING

O-RING, 13/16 x 1 x 3/32

1шт.

26

341195R92

VALVE

ASSY, oil pressure regulating, Used w/crankcase, 607488C2, D-282 w/serial no. 71820 & above

1шт.

Выбрано товаров: 53
