Запчасти Case IH 414 (324) - RADIATOR, RADIATOR SUPPORTS AND SCREEN (10) - ENGINE

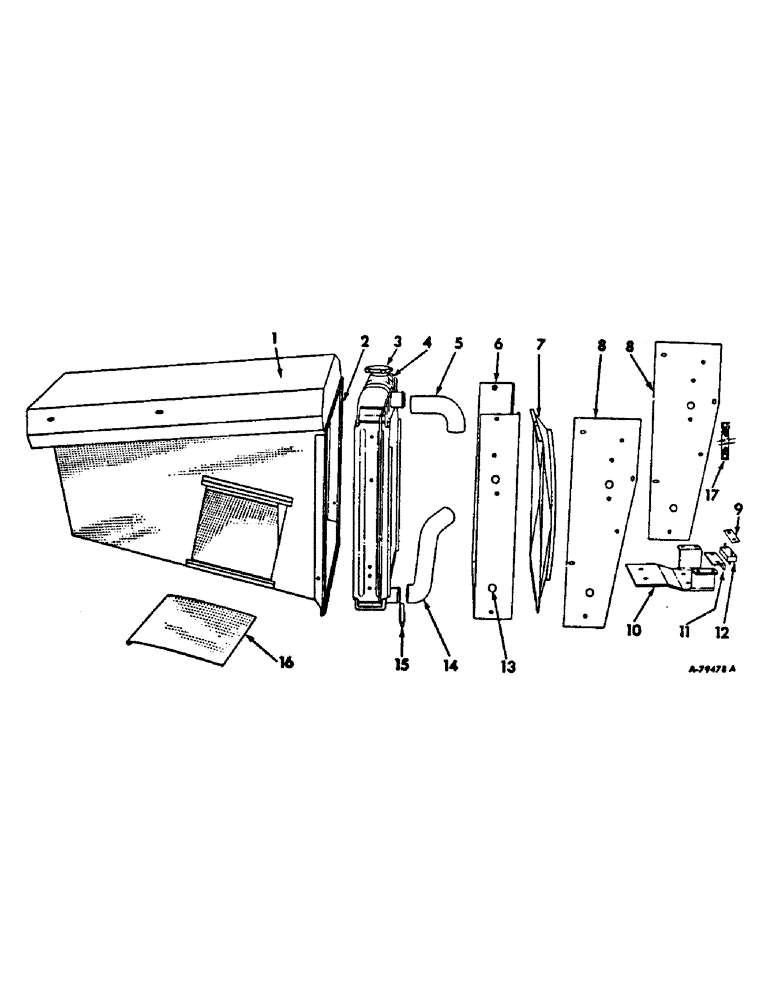

Схема запчастей Case IH 414 - (324) - RADIATOR, RADIATOR SUPPORTS AND SCREEN (10) - ENGINE
8
1
13
4
17
7
10
2
14
12
6
9
11
15
5
3
16
8

Артикул

Название

Примечание

Количество

1

666086R91

SCREEN, radiator

1шт.

BOLT, 5/16 x 3/4 mach

6шт.

NUT, 5/16

2шт.

WASHER, 5/16 lock

6шт.

WASHER, 11/32 x 3/4 x 16 ga

4шт.

2

666098R1

STRIP, radiator screen sealer

4шт.

3

361705R91

COVER

CAP, radiator pressure, Used only w/radiator, 370415R92

1шт.

3

393229R91

CAP

radiator pressure, Used with radiators, 370415R93, 370415R94 and 395508R1

1шт.

4

370415R94

RADIATOR ASSY, less cap, Order radiator, 395508R1 and hose, 395509R1, all 414 & 420 Cotton Pickers, 416 up to serial no. CH1155L, 422 up to serial no. CH1966L

1шт.

4

395508T1

RADIATOR ASSY, less cap, 416-CH1156L and above, 422-CH1967L and above

1шт.

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4-18 auto. sq-hd pipe

1шт.

17424R1

BOLT,Hex, 1/4" - 20 x 1"

1/4-20 x 1 hex-hd mach

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

369346R1

RADIATOR HOSE,2.00" ID x 6.30", SAE 20R4, Class R, Grade 1

Inlet, all 414 & 420 Cotton Pickers, 416 up to serial no. CH1155L, 422 up to serial no. CH1966L 2.00" ID x 6.30", SAE 20R4, Class R, Grade 1

1шт.

5

395509R1

HOSE

radiator inlet, 416-CH1156L and above, 422-CH1967L and above

1шт.

6

666056R91

SUPPORT, radiator, welded assy

1шт.

BOLT, 1/2 x 1 mach

2шт.

NUT, 1/2 hex.

2шт.

WASHER, 1/2 lock

2шт.

7

315726R2

HOUSING, fan

1шт.

SCREW, 1/4 x 5/8 hex-hd cap

4шт.

NUT, 1/4 hex.

4шт.

WASHER, 1/4 lock

4шт.

8

666099R2

SIDE, radiator support

2шт.

BOLT, 5/16 x 3/4 mach

3шт.

WASHER, 5/16 lock

3шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

666052R91

SUPPORT, rear engine, welded assy

1шт.

11

662274R2

ANGLE, engine and radiator support

1шт.

BOLT, 1/2 x 1-1/4 mach

2шт.

NUT, 1/2 hex.

2шт.

WASHER, 1/2 lock

2шт.

WASHER, 11/32 x 1 x 16 ga

2шт.

WASHER, 17/32 x 1 x 16 ga

4шт.

12

72085R92

INSULATOR

engine mount

1шт.

NUT, 5/16NF

4шт.

WASHER, 5/16 lock

4шт.

13

369932R1

INSULATOR

PLATE, radiator mounting

4шт.

SCREW, no. 8-32 x 1/4 hex-hd self-tapping

16шт.

14

316140R1

RADIATOR HOSE,2.00" ID x 10.30", SAE 20R4

Outlet, 414 up to serial no. CH812E, 420 up to serial no. CH1371E 2.00" ID x 10.30", SAE 20R4

1шт.

14

315725R1

RADIATOR HOSE,2.00" ID x 10.25", SAE 20R4

Outlet, 414CH813F to CH1568G, 420CH1372F to CH2820G, 416-CH501H and above, 422-CH501H and above 2.00" ID x 10.25", SAE 20R4

1шт.

15

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

16

661340R1

DOOR, radiator screen inspection

2шт.

17

200462C1

STRAP, engine ground

1шт.
