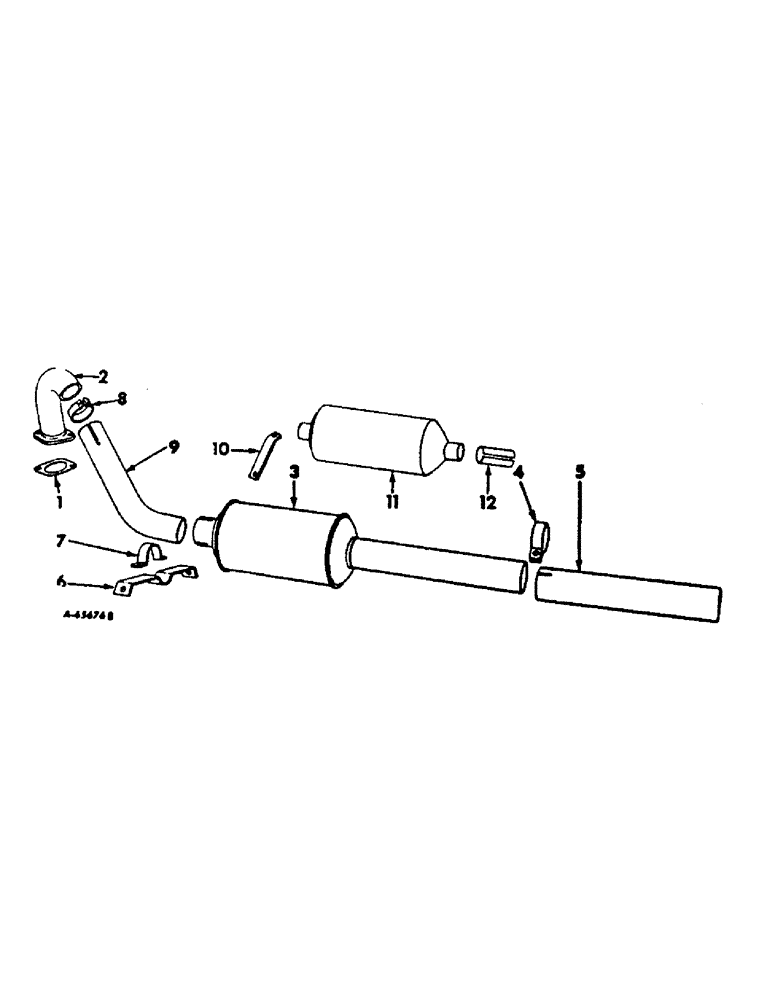

Запчасти Case IH 414 (321) - EXHAUST PIPE AND MUFFLER (10) - ENGINE

1

369282R2

GASKET

exhaust pipe elbow

1шт.

2

316400R1

ELBOW

exhaust manifold

1шт.

SCREW, 3/8 x 1 cap

2шт.

WASHER, 3/8 lock

2шт.

3

384346R92

MUFFLER

exhaust

1шт.

4

350602R1

CLAMP

exhaust pipe

1шт.

BOLT, 3/8 x 1-1/4 mach

1шт.

NUT, 3/8 hex.

1шт.

WASHER, 3/8 lock

1шт.

5

666075R1

PIPE, exhaust extension

1шт.

6

666074R1

SUPPORT, exhaust pipe support

1шт.

7

665479R1

STRAP, exhaust pipe support

1шт.

8

31790DA

CLAMP

exhaust

1шт.

BOLT W/NUT, 3/8 x 1 mach

1шт.

WASHER, 3/8 lock

1шт.

9

668427R1

PIPE, exhaust

1шт.

10

204228C1

STRAP, exhaust extension

1шт.

SCREW W/NUT, 3/8 x 1-3/4 cap

1шт.

WASHER, 3/8 lock

1шт.

11

204229C1

ARRESTER, spark, special

1шт.

12

204230C1

BUSHING, special

1шт.
