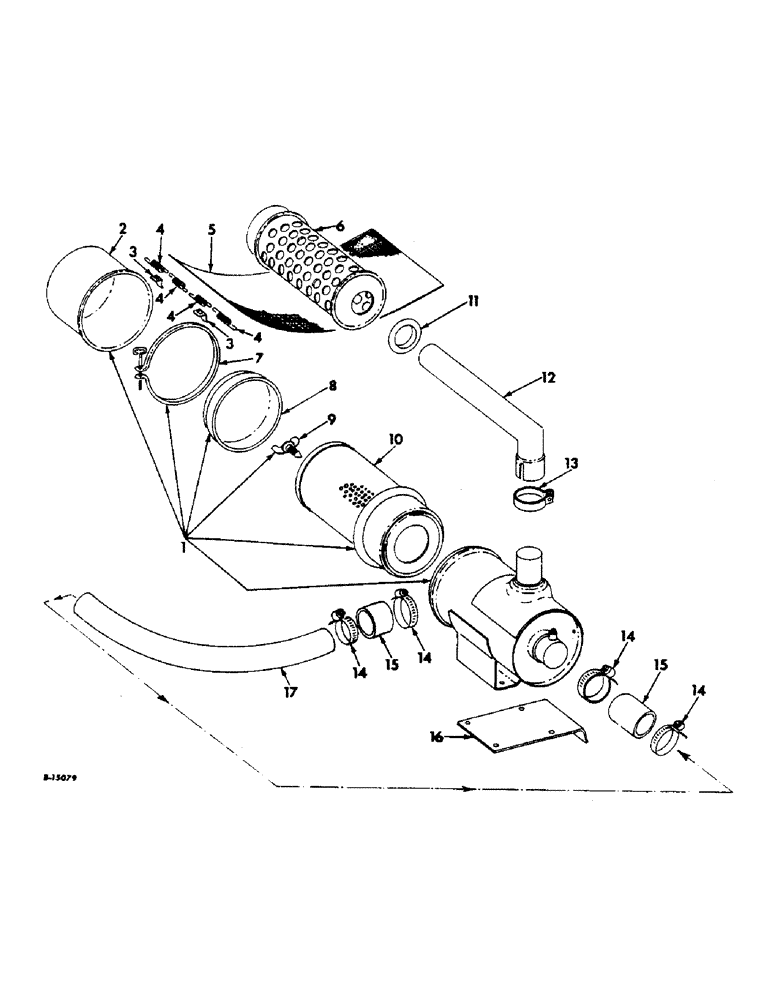

Запчасти Case IH 414 (319) - AIR CLEANER, 416, CH1122L AND ABOVE, 422, CH1968L AND ABOVE (10) - ENGINE

1

397173R91

CLEANER ASSY, dry type air, Replaces 387981R92

1шт.

2

389267R91

BOWL

CUP ASSY

1шт.

3

353758R1

CLIP

screen lock spring

2шт.

4

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.

5

355146R91

SCREEN

W/CLIPS AND SPRINGS, pre-screener

1шт.

6

356405R91

PRE-SCREENER W/SCREEN, springs and clips

1шт.

7

381339R91

CLAMP

ASSY

1шт.

8

381345R1

BAFFLE

1шт.

9

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

10

384812R93

AIR CLEANER

ELEMENT ASSY

1шт.

11

665661R1

SEAL, precleaner

1шт.

12

672136R91

EXTENSION ASSY, air intake pipe

1шт.

13

350602R1

CLAMP

precleaner pipe

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, air cleaner pipe hose

4шт.

15

370237R1

INTAKE AIR HOSE,57.20 mm ID x 78.20 mm, SAE 20R4

- Pipe elbow 57.20 mm ID x 78.20 mm, SAE 20R4

2шт.

16

672134R1

BRACKET, air cleaner

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1 mach

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

666106R1

PIPE, carburetor air intake

1шт.
