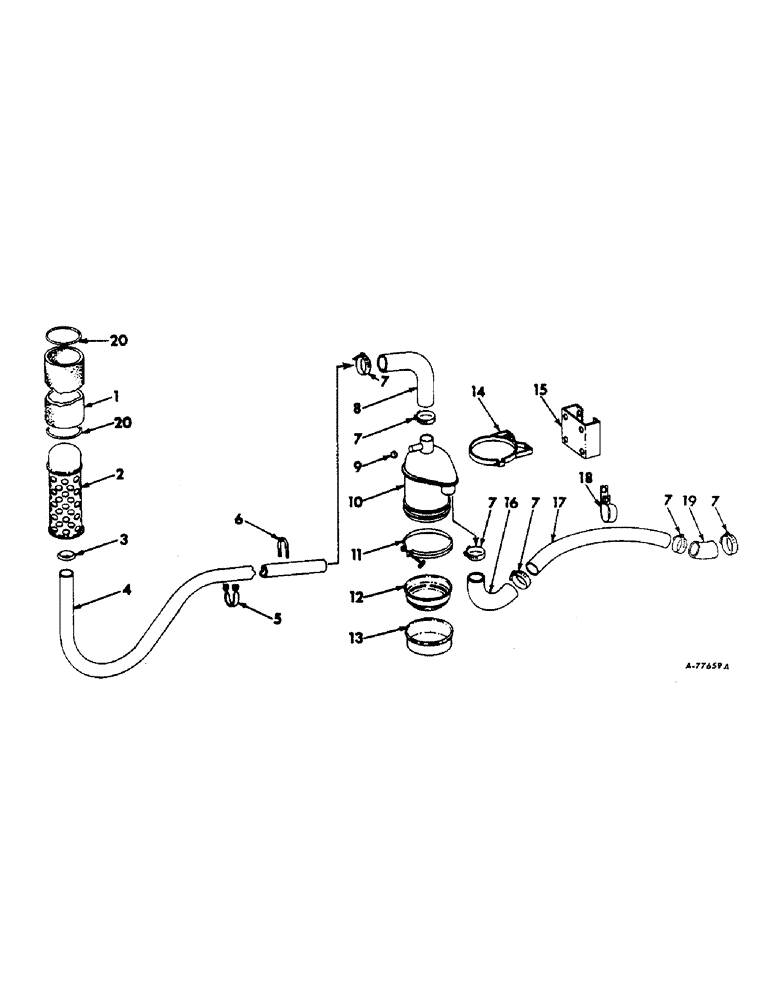

Запчасти Case IH 414 (318) - AIR CLEANER, 416, CH501H THROUGH 1121L, 422, CH501H THROUGH 1967L (10) - ENGINE

1

665528R21

CLEANER

FILTER W/O-RING, precleaner

1шт.

2

356405R91

PRECLEANER

1шт.

3

665661R1

SEAL, precleaner

1шт.

4

669521R1

PIPE, precleaner

1шт.

5

669524R1

STRAP, precleaner

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

2шт.

WASHER, 3/8 lock

2шт.

6

2815NA

BOLT, pipe clamp U

1шт.

NUT, 3/8

2шт.

WASHER, 3/8 lock

2шт.

7

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, precleaner hose

6шт.

8

669522R1

HOSE, precleaner

1шт.

9

265331R1

CAP, breather tube

1шт.

10

370583R91

CLEANER ASSY, air

1шт.

11

54269DA

CLAMP

ASSY, oil cup retaining

1шт.

12

372491R1

CUP

oil inner

1шт.

13

372490R1

BOWL

CUP, oil

1шт.

14

317795R91

BAND, air cleaner mounting

2шт.

BOLT W/NUT, 5/16 x 3/4 cap

4шт.

WASHER, 5/16 lock

4шт.

15

666107R1

BRACKET, air cleaner spacer

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

4шт.

WASHER, 3/8 lock

4шт.

16

370233R1

INTAKE AIR HOSE,2.25" ID x 4.50", SAE 20R4 CLASS SC

- Pipe elbow upper 2.25" ID x 4.50", SAE 20R4 CLASS SC

1шт.

17

666106R1

PIPE, carburetor ait intake

1шт.

18

666110R1

BRACKET, air intake pipe

1шт.

BOLT W/NUT, 5/16 x 1 mach

2шт.

WASHER, 5/16 lock

2шт.

19

370237R1

INTAKE AIR HOSE,57.20 mm ID x 78.20 mm, SAE 20R4

- Pipe elbow 57.20 mm ID x 78.20 mm, SAE 20R4

1шт.

20

380595R1

O-RING

5-5/8 x 5-7/8 x 1/8

2шт.
