Запчасти Case IH 414 (295) - LUBRICATING OIL FILTER, SPIN ON TYPE, SLEEVELESS TYPE C-263, SERIAL NUMBER 94865 AND ABOVE (10) - ENGINE

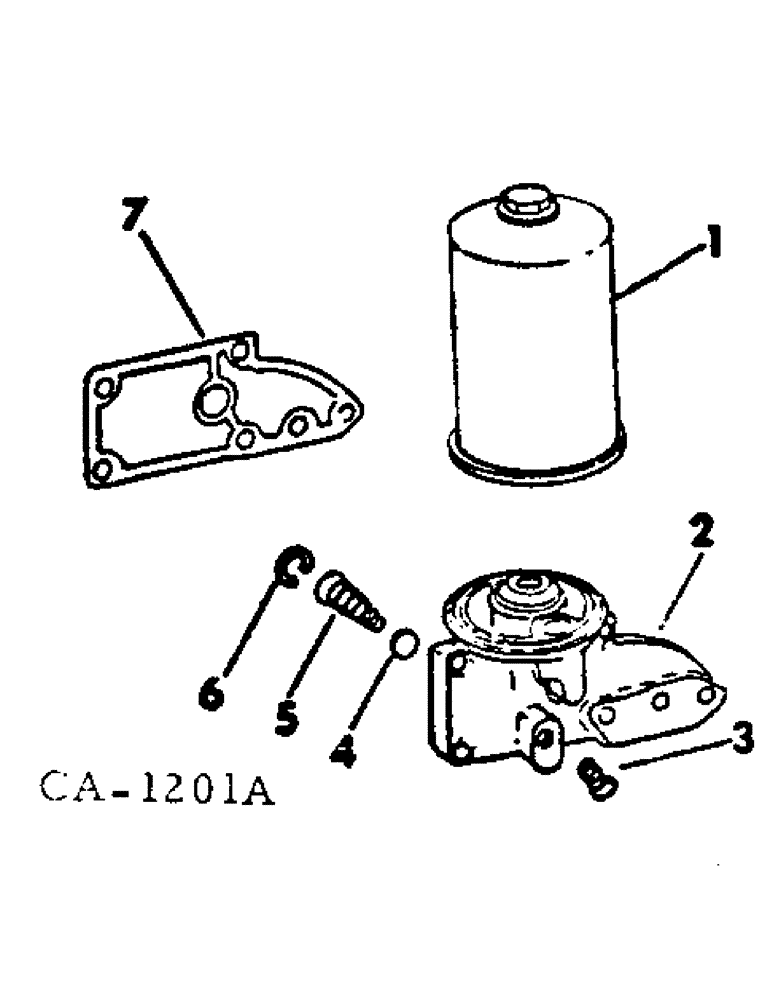

Схема запчастей Case IH 414 - (295) - LUBRICATING OIL FILTER, SPIN ON TYPE, SLEEVELESS TYPE C-263, SERIAL NUMBER 94865 AND ABOVE (10) - ENGINE
4
1
5
3
6
2
7

Артикул

Название

Примечание

Количество

534178R91

FILTER

ASSY, oil, less ref no. 7

1шт.

1

398080R2

ENGINE OIL FILTER

ELEMENT, spin-on oil filter, Not serviced separately, Order filter assy, 534178R91

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

3шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 1-1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

397299R1

PLUG

oil filter base

1шт.

4

534180R1

VALVE

pressure regulating

1шт.

5

384526R2

VALVE SPRING

SPRING, pressure regulating

1шт.

6

303322R1

SNAP RING,1.00", Int, #100

1шт.

7

534196R1

GASKET

oil filter base

1шт.

Выбрано товаров: 11
