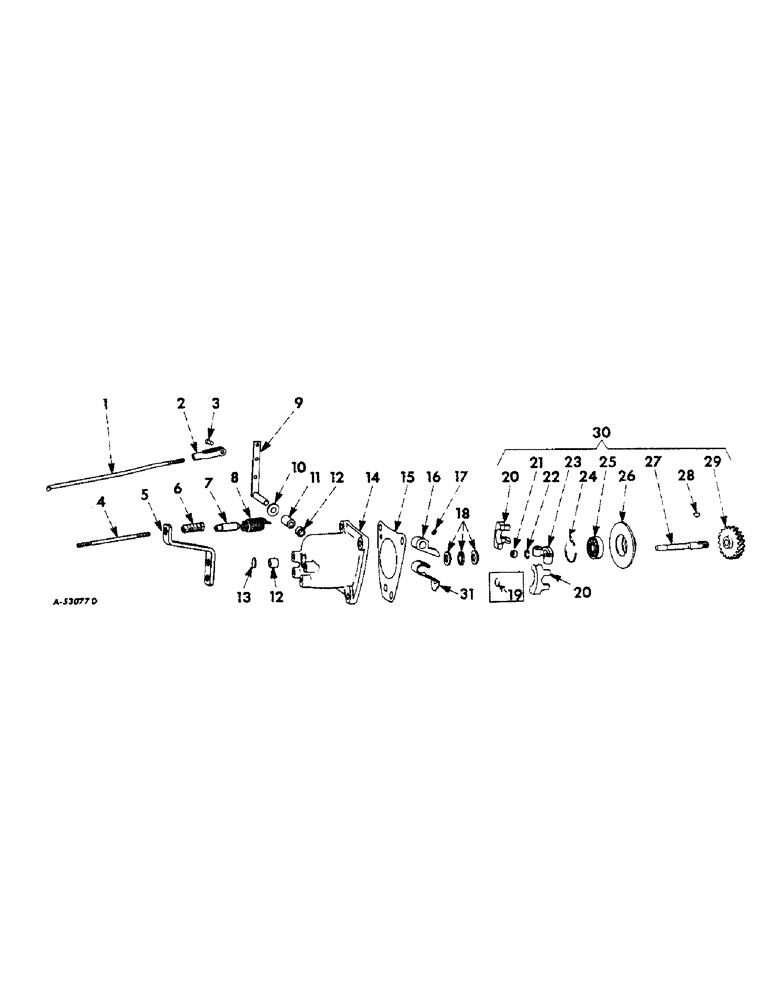

Запчасти Case IH 414 (292) - GOVERNOR (10) - ENGINE

376589R92

GOVERNOR ASSY, Composed of parts listed in this unit except as noted, 414 up to serial no. 812E, 420 up to serial no. 1371E

1шт.

372708R93

GOVERNOR

ASSY, Composed of parts listed in this unit except as noted, 414CH813F to CH1568G, 420CH1372F to 2820G, 416CH501 and above, 422CH501H and above

1шт.

1

368335R1

ROD

governor to carburetor, Note A

1шт.

137130

PIN

1/16 x 7/16 cotter

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-20 adj rod end, Note A

1шт.

137130

PIN

NUT, 1/4-28 hex.

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end, Note A

1шт.

137130

PIN

1/16 x 7/16 cotter

1шт.

4

367659R1

STUD

ROD, governor spring retainer, Note A

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

1шт.

5

367742R1

BRACKET, governor spring, Note A

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

367660R1

BOLT,Hex, 1/2" - 20 x 1.19"

ADJUSTER, governor spring, Note A

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/4-28 hex. jam

1шт.

7

367740R1

PIN

RETAINER, governor spring, Note A

1шт.

8

376592R2

SPRING

governor, Note A

1шт.

9

367656R12

ROCKSHAFT

LEVER AND ROCKSHAFT ASSEMBLY, governor

1шт.

10

361123R91

OIL SEAL

governor rockshaft oil

1шт.

11

369593R1

BUSHING

governor

1шт.

12

369594R1

BUSHING

governor

2шт.

13

172530

PLUG,Exp, 11/16"

11/16 expansion

1шт.

14

376590R11

HOUSING ASSY, governor, Used w/governor, 376589R92, Composed of

1шт.

369593R1

BUSHING

(NSS)

1шт.

369594R1

BUSHING

(NSS)

2шт.

376590R1

HOUSING (NSS)

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

361123R91

OIL SEAL

OIL SEAL

1шт.

172530

PLUG,Exp, 11/16"

1шт.

127842

YOKE

SCREW

1шт.

14

367651R31

HOUSING ASSEMBLY, governor, Used w/governor, 372708R93, Composed of

1шт.

369593R1

BUSHING

(NSS)

1шт.

369594R1

BUSHING

(NSS)

2шт.

367651R3

HOUSING (NSS)

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

361123R91

OIL SEAL

OIL SEAL

1шт.

172530

PLUG,Exp, 11/16"

1шт.

127842

YOKE

SCREW

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

127842

YOKE

SCREW, 1/4-28 x 1-1/2 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

367669R1

GASKET

governor housing, Note A

1шт.

16

367653R1

FORK

governor thrust

1шт.

17

368938R1

SET SCREW,Hdls Hex Skt, 1/4" - 28 x 5/16", Cup Pt

governor thrust fork set

1шт.

18

393405R91

THRUST BEARING,11.07mm ID x 25.4mm OD x 11.13mm W

ASSY, governor thrust ball

1шт.

19

251460R1

RING, SNAP

RING, governor sleeve stop, Used only with governor shaft having snap ring groove

1шт.

20

367741R1

WEIGHT

governor

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

2шт.

21

387878R1

SLEEVE

governor thrust

1шт.

22

369477R1

RING

snap

1шт.

23

367726R1

CARRIER

governor weight

1шт.

24

281907C1

SNAP RING,1.438", Int, #143

Ring, Snap, , governor shaft brg 1.438", Int, #143

1шт.

25

ST552

BALL BEARING,12mm ID x 37mm OD x 12mm W

BEARING, governor shaft ball

1шт.

26

367666R1

RETAINER, governor bearing

1шт.

27

367665R1

SHAFT

governor

1шт.

28

452560

KEY, 1/16 x 3/8 Woodruff no. 211

1шт.

29

367664R1

PINION

GEAR, governor, 19 teeth

1шт.

864337R1

NUT, 7/16-20 hex. lock

1шт.

30

368939R93

PINION

GEAR AND WEIGHT ASSY, governor

1шт.

31

374795R1

VALVE SPRING

SPRING, bumper

1шт.

386010R91

KIT

PACKAGE, governor overhaul, For components see list of parts under details of service packages

1шт.
