Запчасти Case IH 414 (286) - FUEL REGULATOR, L.P. GAS (10) - ENGINE

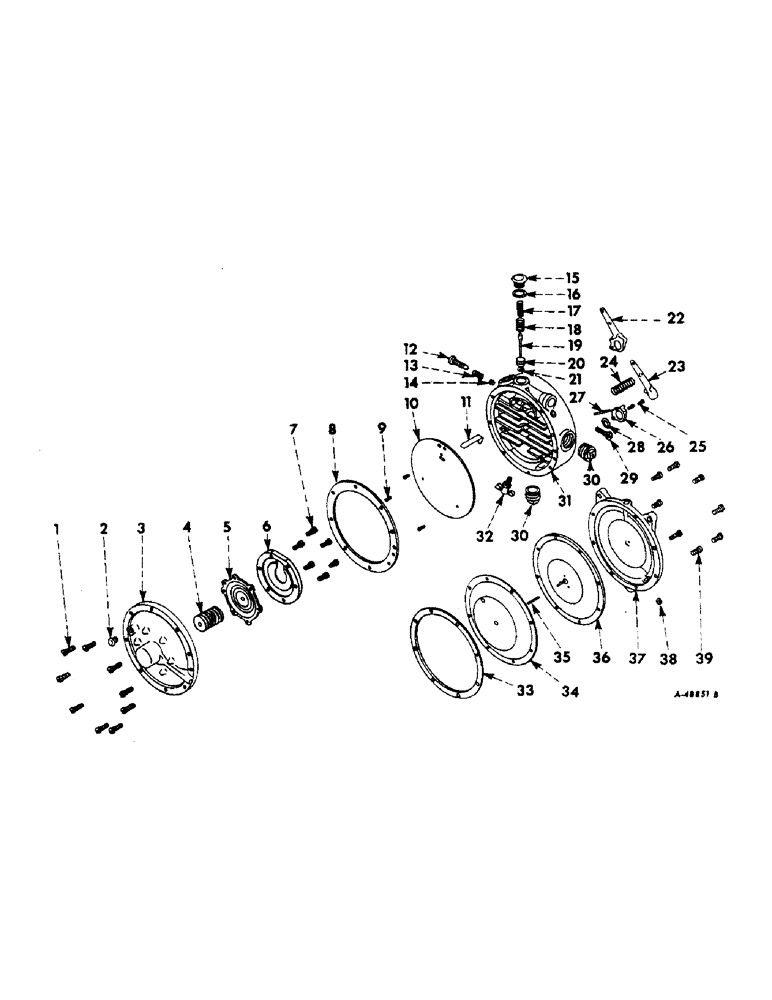

Схема запчастей Case IH 414 - (286) - FUEL REGULATOR, L.P. GAS (10) - ENGINE
25
24
1
38
34
37
32
5
36
8
14
19
4
17
15
39
26
35
31
11
18
30
3
27
12
16
2
23
7
22
29
9
21
28
20
33
13
6
10
30

Артикул

Название

Примечание

Количество

371100R91

REGULATOR ASSY, fuel, discontinued for service

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

3шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

23323H

SPACER,1/4" Pipe x 1/2"

fuel regulator

3шт.

1

19270R91

SCREW W/LOCK WASHER, 10-32 x 5/8 C-Z slt-fil-hd mach

9шт.

2

444814

PLUG,Hex Hd, 1/8"-27, Brass

1/8 pipe, in vaporizer cover

1шт.

3

277195R91

COVER W/PLUG, 13017R1 assy, vaporizer

1шт.

4

277196R91

SPRING ASSY, high pressure

1шт.

5

277370R91

DIAPHRAGM ASSY, high pressure

1шт.

6

277197R1

COVER, high pressure diaphragm

1шт.

7

19270R91

SCREW W/LOCK WASHER, 10-32 x 5/8 C-Z slt-fil-hd mach

6шт.

8

277198R1

GASKET, vaporizer cover

1шт.

9

277199R1

SCREW, vaporizer partition plate

3шт.

10

277350R1

PLATE, vaporizer partition

1шт.

11

277351R1

LEVER, high pressure valve

1шт.

12

37179D

SCREW, idle adjusting

1шт.

13

14526D

SPRING, idle adjusting screw retainer spring

1шт.

14

277352R1

SCREW, bleed, B

1шт.

15

277353R1

RETAINER, high pressure valve spring

1шт.

16

277354R1

GASKET, high pressure valve spring retainer

1шт.

17

277355R1

SPRING, high pressure valve

1шт.

18

277356R1

SPRING, high pressure valve seat retainer

1шт.

19

VALVE, high pressure, on orders for valve furnish 545554R91

1шт.

20

SEAT, high pressure valve, on orders for seat furnish 545554R91

1шт.

21

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, High pressure valve

1шт.

22

VALVE ASSY, low pressure, Not serviced separately, Order 277369R91

1шт.

23

113443R91

LEVER ASSY, low pressure valve

1шт.

24

277360R1

SPRING, low pressure valve

1шт.

25

19271R91

SCREW W/LOCK WASHER ASSY, low pressure valve

2шт.

26

277361R1

SEAT, low pressure valve

1шт.

27

277362R1

PIN, pivot

1шт.

28

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

SEAL, low pressure valve

1шт.

29

113434R91

STRAINER ASSY, fuel inlet

1шт.

30

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

3/4 pipe

2шт.

31

BODY ASSY, regulator, Not serviced separately, Order regulator assy

1шт.

32

114981

VALVE

drain

1шт.

33

64433D

GASKET, low pressure partition plate

1шт.

34

277365R1

PLATE, low pressure partition

1шт.

35

277366R1

PIN, diaphragm push

1шт.

36

277367R91

DIAPHRAGM W/PIN, 277366R1 assy, low pressure

1шт.

37

277368R2

PLATE, support

1шт.

38

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 slt-hd pipe

1шт.

39

19270R91

SCREW W/LOCK WASHER, 10-32 x 5/8 C-Z slt-fil-hd mach, support plate

8шт.

545554R91

PACKAGE, high pressure valve and seat

1шт.

277369R91

PACKAGE, fuel regulator overhaul, For components see list of parts under details of service packages

1шт.
