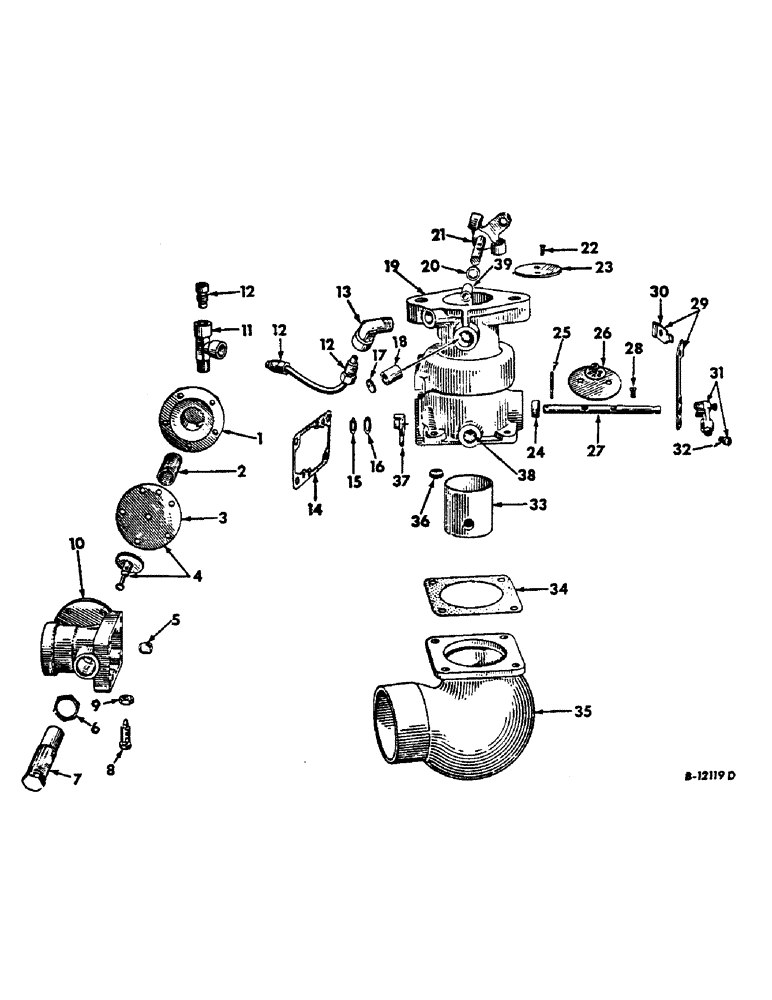

Запчасти Case IH 414 (282) - CARBURETOR, L.P. GAS, 414, UP TO CH812E, 420, UP TO CH1371E (10) - ENGINE

371088R92

CARBURETOR ASSY, 1-1/4 updraft, discontinued for service

1шт.

1

359623R1

COVER, economizer

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

NO. 8 X 5/8 C-Z SLT-FIL-HD MACH SCREW

5шт.

131182

WASHER, LOCK

NO. 8 C-Z LOCK WASHER

5шт.

2

359622R1

SPRING, economizer

1шт.

3

113504R1

DIAPHRAGM, economizer

1шт.

4

359621R91

DIAPHRAGM ASSY, economizer

1шт.

5

373189R1

SCREW, economizer bleed

1шт.

6

56430D

NUT, fuel adjusting screw lock

1шт.

7

56429D

SCREW, fuel adjusting

1шт.

8

359620R1

SCREW, starting adjusting

1шт.

9

113506R1

NUT, starting adjusting screw lock

1шт.

10

307977R1

BODY, gas inlet and economizer, less ref no. 5

1шт.

132203

NO. 12 X 7/8 C-Z SLT-FIL-HD MACH SCREW Slotted Fil Hd, #12-24 x 7/8"

4шт.

131184

CONNECTING LINK

NO. 12 C-Z LIGHT LOCK WASHER

4шт.

11

19272R1

TEE, 1/8 x 90 deg. two-way, For 3/16 tube

1шт.

11

373191R91

TEE W/TWO NUT, 19983R1 assy, two-way, For 3/16 tube

1шт.

12

19983R1

NUT, 3/8-24 hi-duty tube fitting

3шт.

13

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

3/8-24 90 deg hi-duty tube fitting male pipe

1шт.

14

359624R1

GASKET, gas inlet and economizer

1шт.

15

37183D

WASHER, valve lever

1шт.

16

359615R1

WASHER, spring

1шт.

17

47856H

PLUG, 1/2 BRS expansion

1шт.

18

37024D

BUSHING, throttle bearing

1шт.

19

388590R91

BODY AND THROTTLE ASSY, partial, Composed of

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

37024D

BUSHING

2шт.

64835D

NOZZLE

1шт.

13123D

PLUG

1шт.

20

379598R1

SEAL

OIL SEAL, throttle shaft, Replaces 64837D

2шт.

21

373187R91

SHAFT AND STOP ASSY, throttle

1шт.

NLS

NO LONGER SERVICED

NO. 10NF X 5/8 C-Z SLT-FIL-HD MACH SCREW

1шт.

22

56370D

SCREW, throttle shaft

2шт.

23

374863R1

DISC, throttle

1шт.

24

58899D

WASHER, dust

1шт.

25

359616R1

PIN, valve lever

1шт.

26

359613R91

DISC ASSY, spring loaded choke

1шт.

27

359612R1

SHAFT, choke

1шт.

28

56365D

SCREW, choke shaft

2шт.

29

58889D

SUPPORT ASSY, choke tube

1шт.

443799

NO. 8 X 1/4 C-Z SLT-BINDING-HD MACH SCREW

2шт.

30

56389D

CLAMP, choke tube

1шт.

120611

NUT,#10 - 32

NO. 10NF NUT

1шт.

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

NO. 10NF X 3/8 C-Z SLT-FIL-HD MACH SCREW

1шт.

31

275583R91

LEVER ASSY, choke

1шт.

100660

SCREW,Slotted Fil Hd, #10-32 x 1/2"

NO. 10NF X 1/2 HEX-HD MACH SCREW

1шт.

32

36756D

SCREW, choke lever set

1шт.

33

373939R1

VENTURI

1шт.

132198

NO. 10 X 3/4 C-Z SLT-FIL-HD MACH SCREW

1шт.

131184

CONNECTING LINK

NO. 12 C-Z LIGHT LOCK WASHER

1шт.

34

359627R1

GASKET, air intake elbow

1шт.

35

373190R1

ELBOW, air intake

1шт.

NLS

NO LONGER SERVICED

NO. 12 X 5/8 C-Z SLT-FIL-HD MACH SCREW

4шт.

131184

CONNECTING LINK

NO. 12 C-Z LIGHT LOCK WASHER

4шт.

36

13123D

PLUG, 3/16 BRS expansion

1шт.

37

359614R1

LEVER, valve

1шт.

38

64835D

NOZZLE, balance tube

1шт.

39

37024D

BUSHING, throttle bearing

1шт.

530681R1

GASKET

carburetor, Not included in carburetor assy

1шт.

387444R93

PACKAGE, carburetor gasket, For components see list of parts under details of service packages

1шт.
