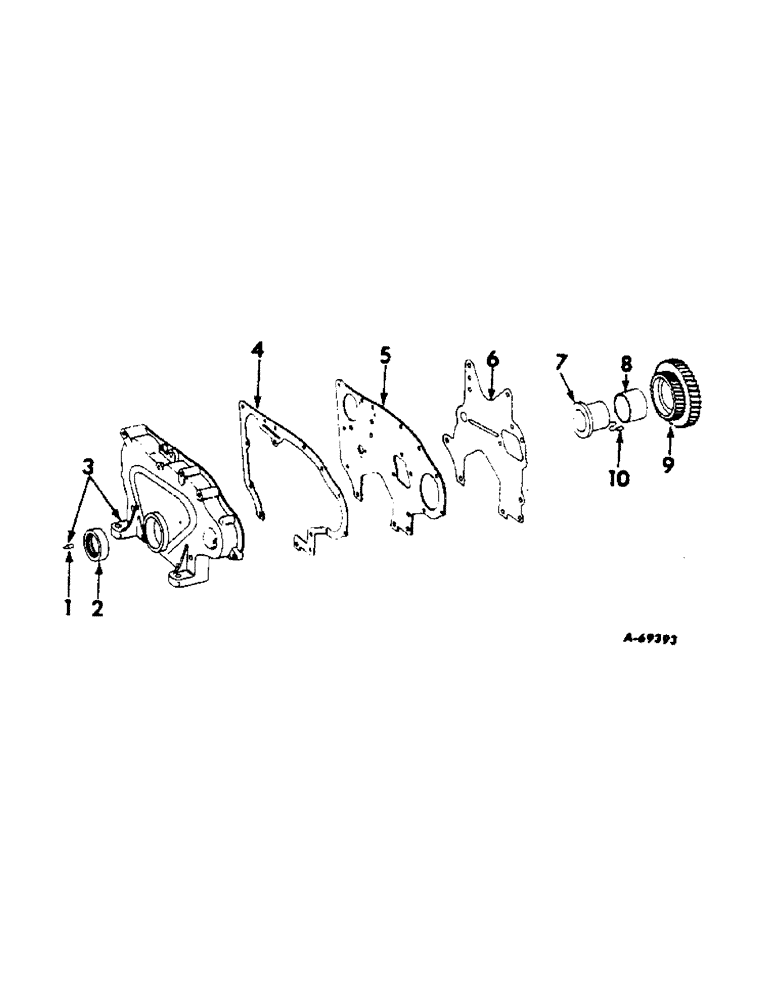

Запчасти Case IH 414 (278) - CRANKCASE FRONT COVER AND IDLER GEAR, 414 SER. NOS. CH813F - CH1568G, 420 SER. NOS. CH1372F - 2820G (10) - ENGINE

1

367572R1

INDICATOR

POINTER, timing

2шт.

2

391976R91

OIL SEAL

crankshaft oil, Replaces 317549R91

1шт.

3

378250R21

COVER ASSY, crankcase front

1шт.

179887

CABLE

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

378237R1

GASKET

crankcase front cover

1шт.

5

378238R3

PLATE, crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

398024R1

GASKET

crankcase front plate, Will work for 367570R1

1шт.

7

367580R11

HUB

SHAFT W/DOWEL, 141150, idler gear, machines w/engine serial no. 83736 and below

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

530973R1

HOUSING

HUB, idler gear, Replaces 398036R1, machines w/engine serial no. 83737 and above

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

615090R1

WASHER

17/32 x 2 x 11 ga

1шт.

8

367578R1

BUSHING

idler gear, machines w/engine serial no. 83736 and below

1шт.

8

398034R1

BUSHING

idler gear, machines w/engine serial no. 83737 and above

1шт.

9

367577R11

PINION

GEAR W/BUSHING, idler, machines w/engine serial no. 83736 and below

1шт.

9

398032R1

PINION

GEAR W/BUSHING, idler, machines w/engine serial no. 83737 and above

1шт.

10

NLS

NO LONGER SERVICED

DOWEL, 3/16 x 7/16 idler gear shaft, machines w/engine serial no. 83736 and below

1шт.
