Запчасти Case IH 414 (277) - CRANKCASE FRONT COVER AND IDLER GEAR, 414, UP TO SERIAL NO. CH812E, 420, UP TO SERIAL NO. CH1371E (10) - ENGINE

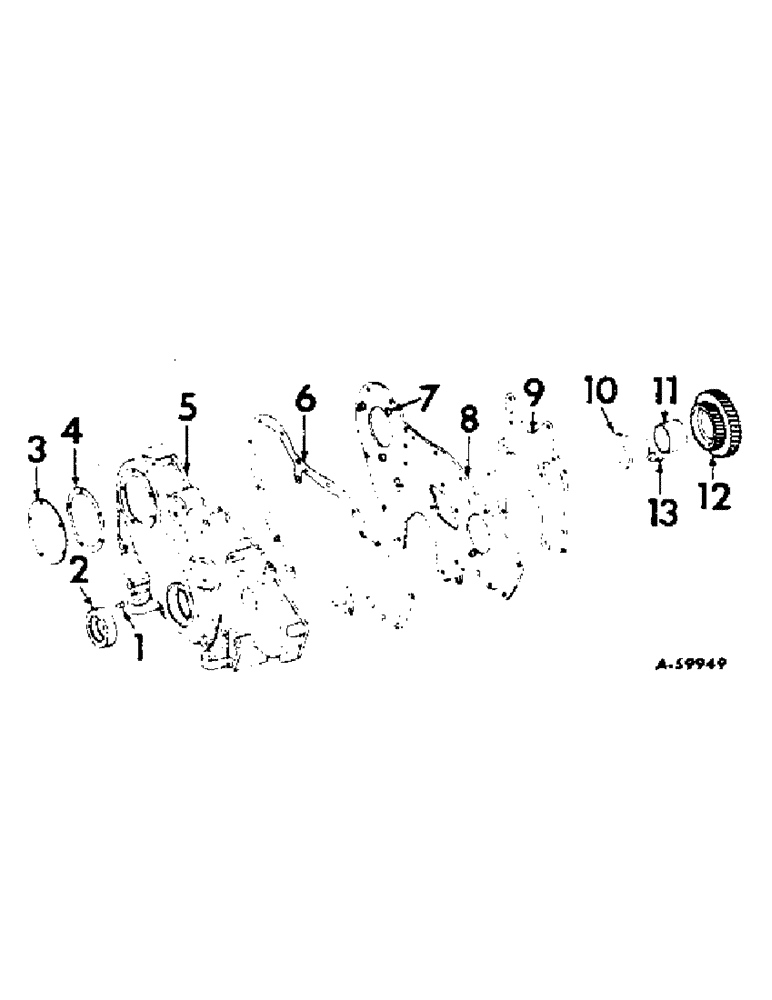

Схема запчастей Case IH 414 - (277) - CRANKCASE FRONT COVER AND IDLER GEAR, 414, UP TO SERIAL NO. CH812E, 420, UP TO SERIAL NO. CH1371E (10) - ENGINE
8
5
12
4
1
9
13
3
6
10
11
2
7

Артикул

Название

Примечание

Количество

1

367572R1

INDICATOR

POINTER, timing

1шт.

2

391976R91

OIL SEAL

crankshaft oil, Replaces 317549R91

1шт.

3

278269R1

COVER ASSY

COVER, injection pump gear

1шт.

179814

SPACER

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

278270R1

GASKET

injection pump gear cover

1шт.

5

312505R11

COVER

W/POINTER, 367572R1 and oil seal, 317549R91, crankcase front

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 hex-hd cap

2шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

6

312506R1

GASKET

crankcase front plate

1шт.

7

NUT, plate, Not serviced separately

1шт.

8

316155R11

PLATE ASSY, crankcase front

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

316156R1

GASKET, crankcase front plate

1шт.

10

367580R11

HUB

SHAFT W/DOWEL, 141150, idler gear

1шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

367578R1

BUSHING

idler gear

1шт.

12

367577R11

PINION

GEAR W/BUSHING, 367578R1, idler

1шт.

13

141150

DOWEL, 3/16 x 7/16 idler gear shaft

1шт.

Выбрано товаров: 26
