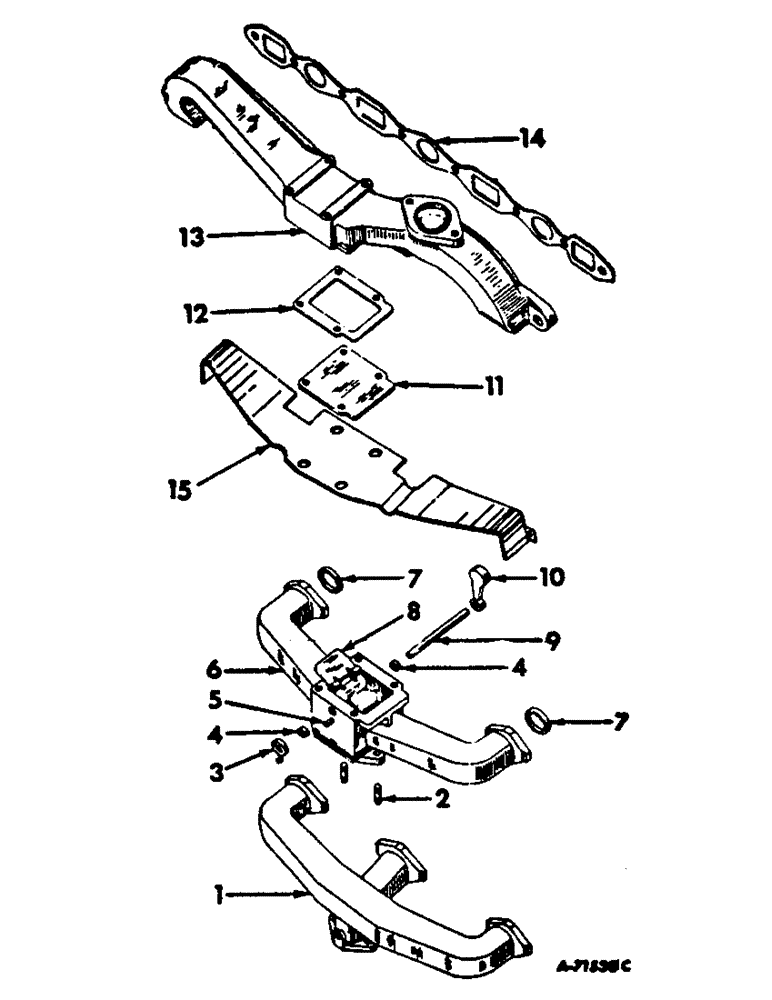

Запчасти Case IH 414 (274) - EXHAUST SYSTEM (10) - ENGINE

1

371097R11

MANIFOLD W/PLUG ASSY, intake, LP gas

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd pipe

1шт.

2

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

3

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

4

69443R1

BUSHING

MANIFOLD W/PLUG ASSY, intake, LP gas

1шт.

5

141159

SPARE PART

PIN, 3/16 x 1 dowel

1шт.

6

367261R11

MANIFOLD

ASSY, intake, gasoline engines, Composed of

1шт.

69443R1

BUSHING

2шт.

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

141159

SPARE PART

PIN

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1шт.

82959R1

SHAFT

1шт.

82958R2

VALVE SPRING

SPRING

1шт.

12215D

STUD

2шт.

85700R1

VALVE

1шт.

85699R1

WEIGHT

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd pipe

1шт.

7

98573HA

GUIDE

PILOT, intake manifold, C-263, serial nos, Serial Range: 25964-104133

2шт.

7

138733R1

CONTROL

PILOT, intake manifold, C-263, serial no. 104134 and above

2шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

371098R1

COVER, exhaust manifold, LP gas

1шт.

102635

NUT,3/8"-16, G5

4шт.

114503

JAM NUT,Jam, 3/8"-16, G5

4шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8-16 x 3-3/8 hex-hd cap

4шт.

12

85868R1

GASKET

intake to exhaust manifold

1шт.

13

368550R11

MANIFOLD

ASSY, exhaust

1шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, , Manifold drain hole 3/16" x 1/2", Type A

1шт.

399446R1

BOLT,Hex, 3/8" - 16 x 1 1/4"

BOLT, exhaust manifold

6шт.

399447R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

BOLT, exhaust manifold

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

400877R1

WASHER

13/32 x 7/8 x 7 ga

8шт.

14

400878R1

GASKET

intake and exhaust manifold

1шт.

15

384509R21

SHIELD ASSY, intake manifold heat, LP gas

1шт.
